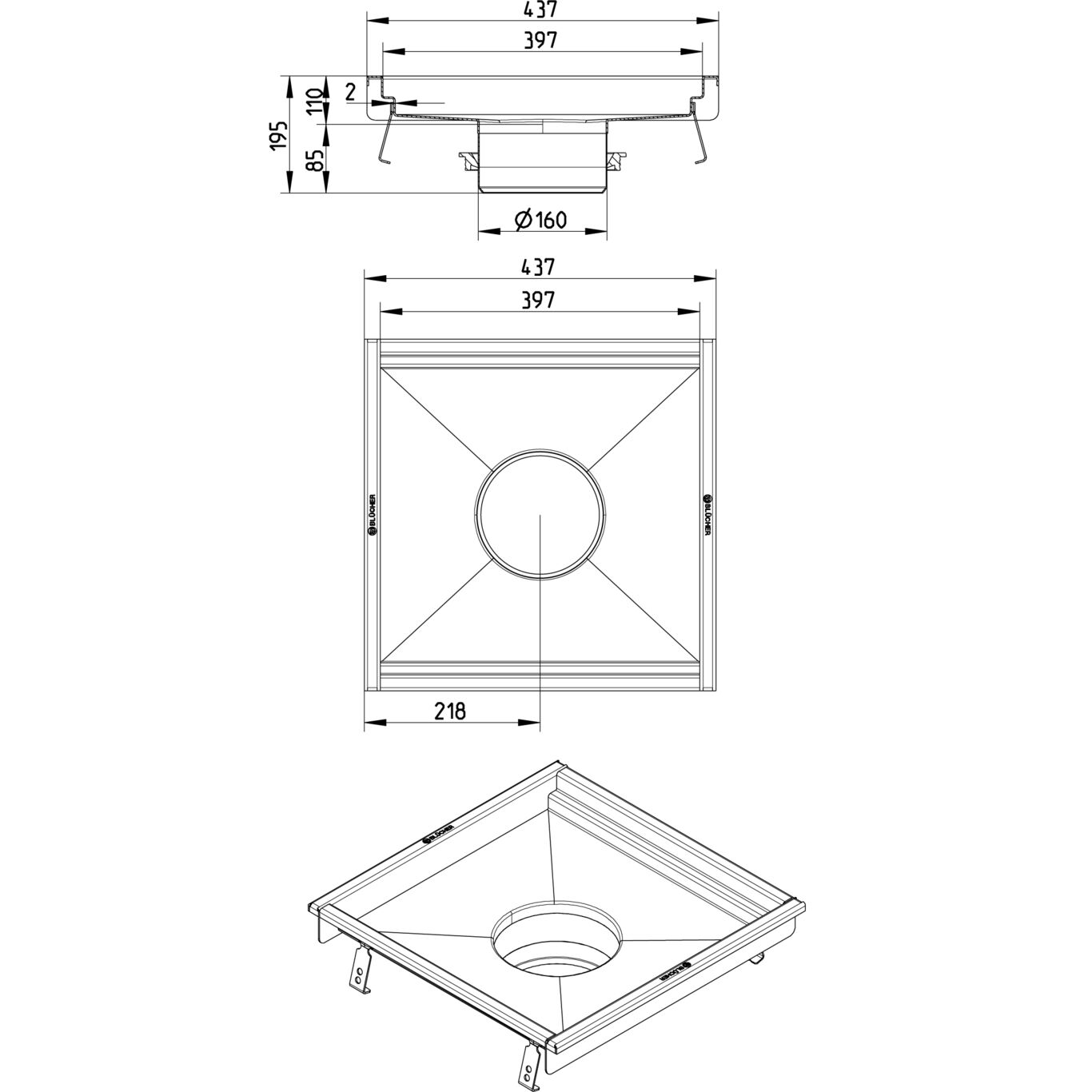

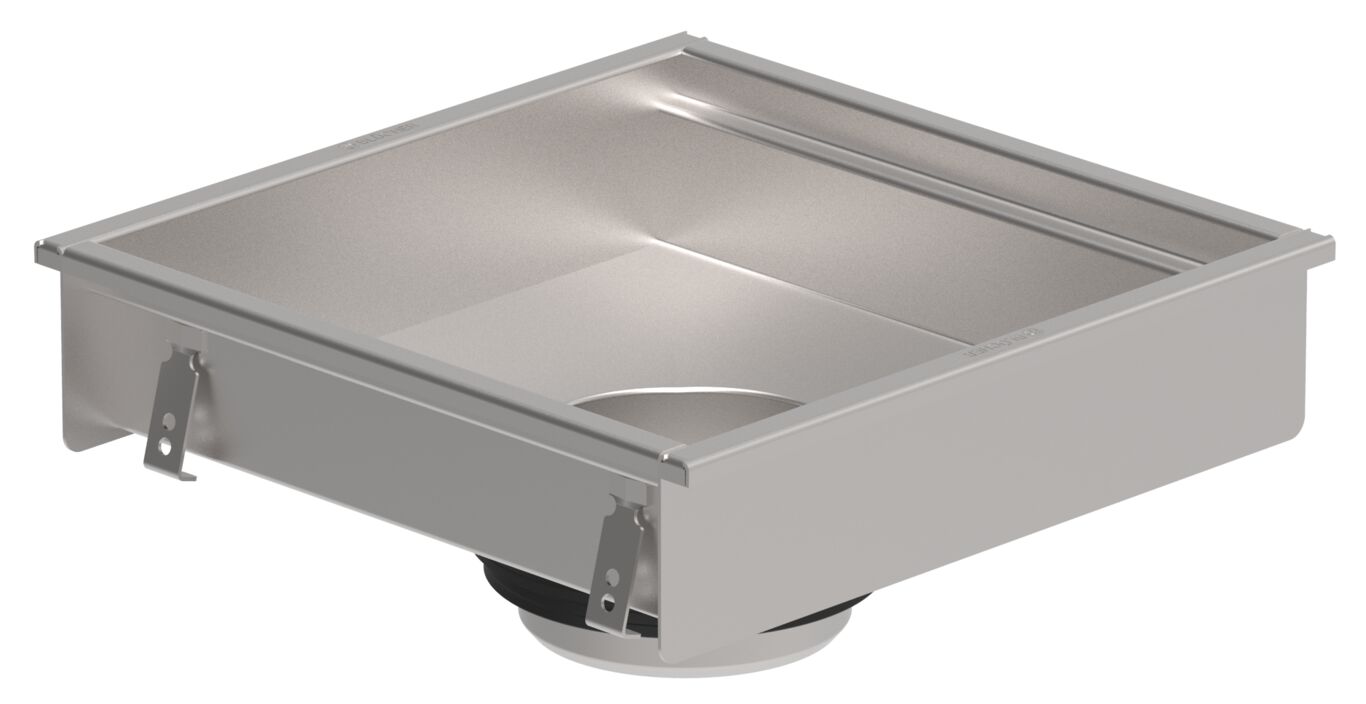

KITCHEN CHANNEL 400x400 - (660FK004-11)
×
![]()
Part Of the Series: Kitchen channel-No membrane
Type no.: 660FK004-11
EAN no.: 5705499126242
RSK no.: 7121769
NRF no.: 3396441
LVI no.: 3304920
Size: 400x400
KITCHEN CHANNEL 400x400
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 195 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 15¾x15¾ |
| Size (mm) | 400x400 |
| Weight (kg) | 6,61 |
| Weight (lbs) | 14,57 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
TÜRK LOYDU - 25041616077231247
NO - PS3079
HACCP Food Safety Programme - Australasia
BLÜCHER® Channels EPD
AUS - WMKT00204 - 24 Declaration of Conformity - BSEN1253-002 RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001 Declaration of Conformity - EN1253-001 PL - Hygienic Certificate - All Products
