KITCHEN CHANNEL 200x200 - (660DK002-00)
×
![]()
Part Of the Series: Kitchen channel-No membrane
Type no.: 660DK002-00
EAN no.: 5705499120387
RSK no.: 7122956
LVI no.: 3304147

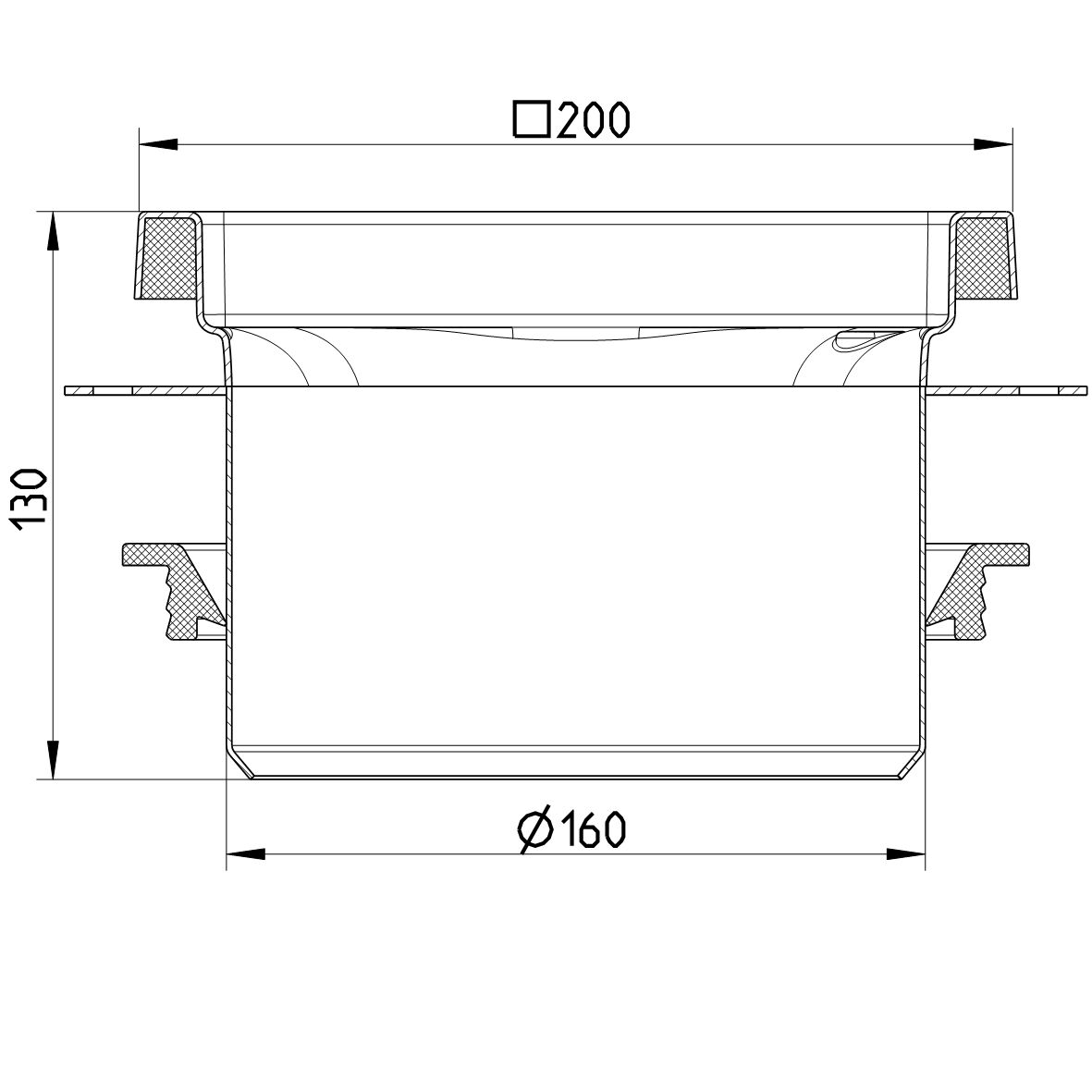

Size: 200x200
KITCHEN CHANNEL 200x200
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 130 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 200x200 |
| Weight (kg) | 1,58 |
| Weight (lbs) | 3,73 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
