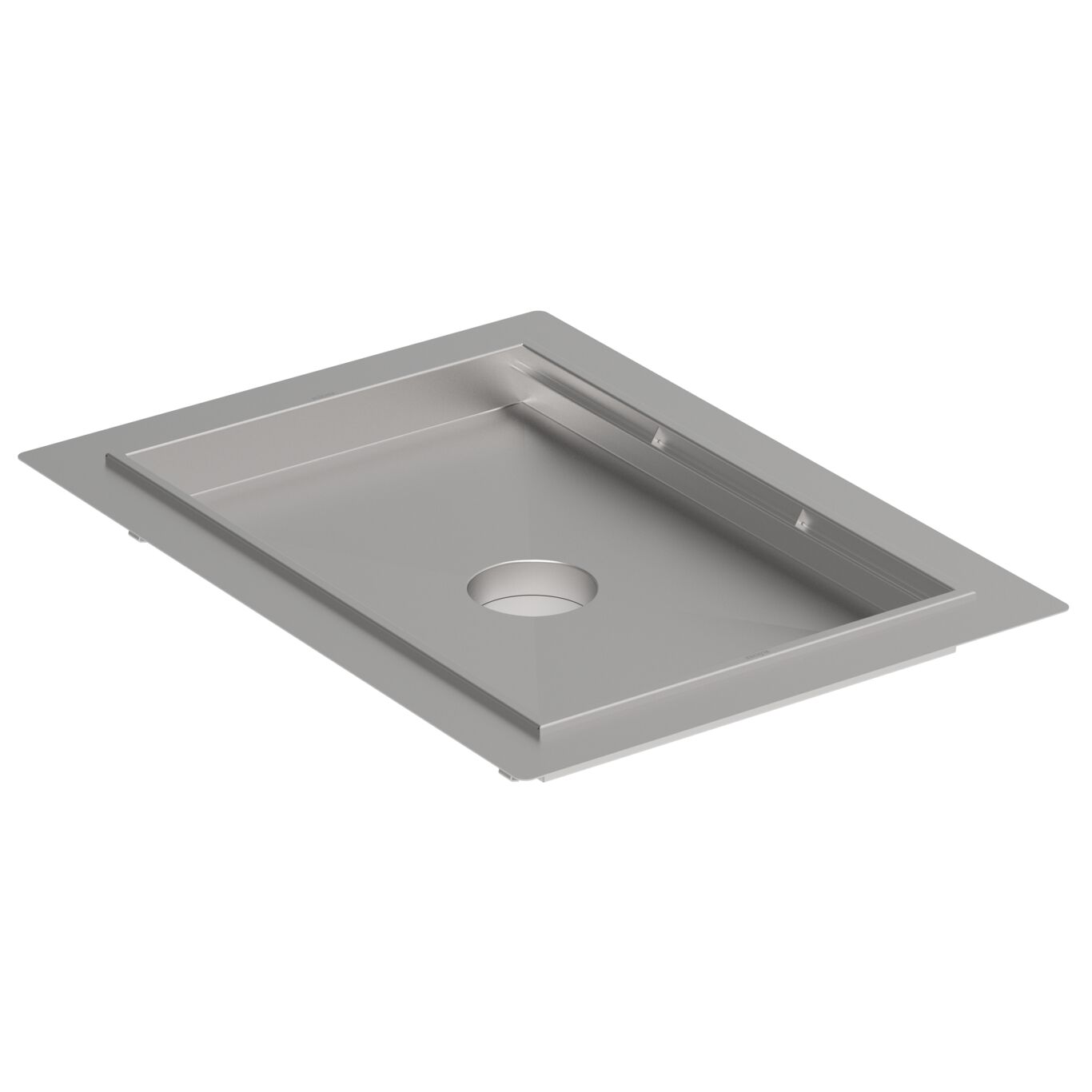

KITCHEN CHANNEL 600x900 - (668HK009-11)
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 668HK009-11
EAN no.: 5705499135206
RSK no.: 7121820
LVI no.: 3304931
Size: 600x900
KITCHEN CHANNEL 600x900
-Adjustable
-Floor: concrete, tiled and resin
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 197 |
Membrane Type | Liquid Membrane |
Minimum Height (mm) | 179 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Outlet Direction | Vertical |
Shape | Rectangular |
Size (Inch) | 23⅝x35⅜ |
Size (mm) | 600x900 |
Weight (kg) | 21,78 |
Weight (lbs) | 48,02 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
