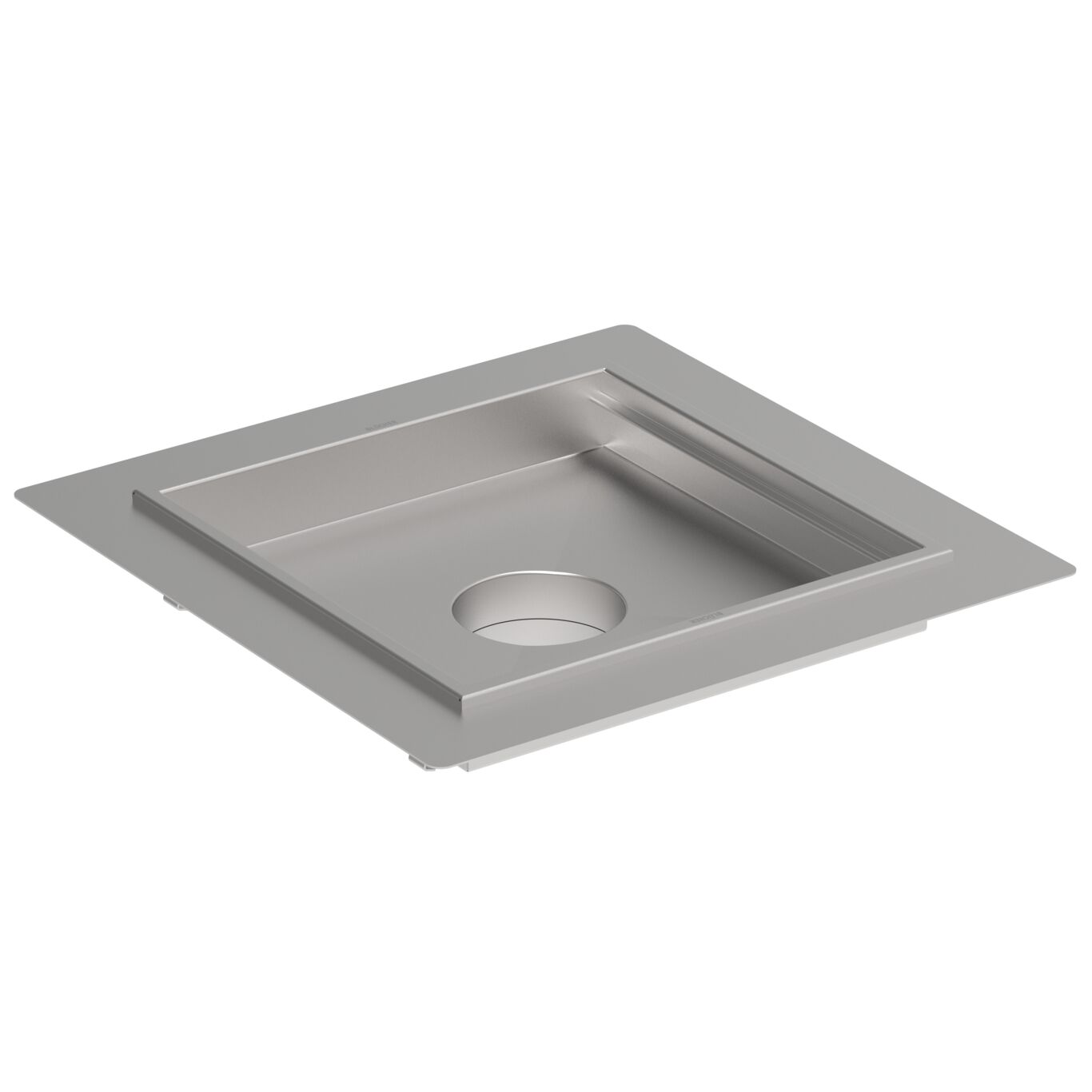

KITCHEN CHANNEL 500x500 - (668GK005-11)

Part Of the Series: Kitchen channel-Liquid membrane

Type no.: 668GK005-11

EAN no.: 5705499134919

RSK no.: 7121818

LVI no.: 3304158

Size: 500x500

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 197
Membrane Type Liquid Membrane
Minimum Height (mm) 179
Outlet dia. (Inch) 6
Outlet Diameter (mm) 160
Outlet Direction Vertical
Shape Square
Size (Inch) 19⅝x19⅝
Size (mm) 500x500
Weight (kg) 13,16
Weight (lbs) 29,01
