CHANNEL 150x5000 CENTER OUTLET - (670CH050-25BA S)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670CH050-25BA S
EAN no.: 5705499002508
VVS no.: 221807450
Size: 150x5000

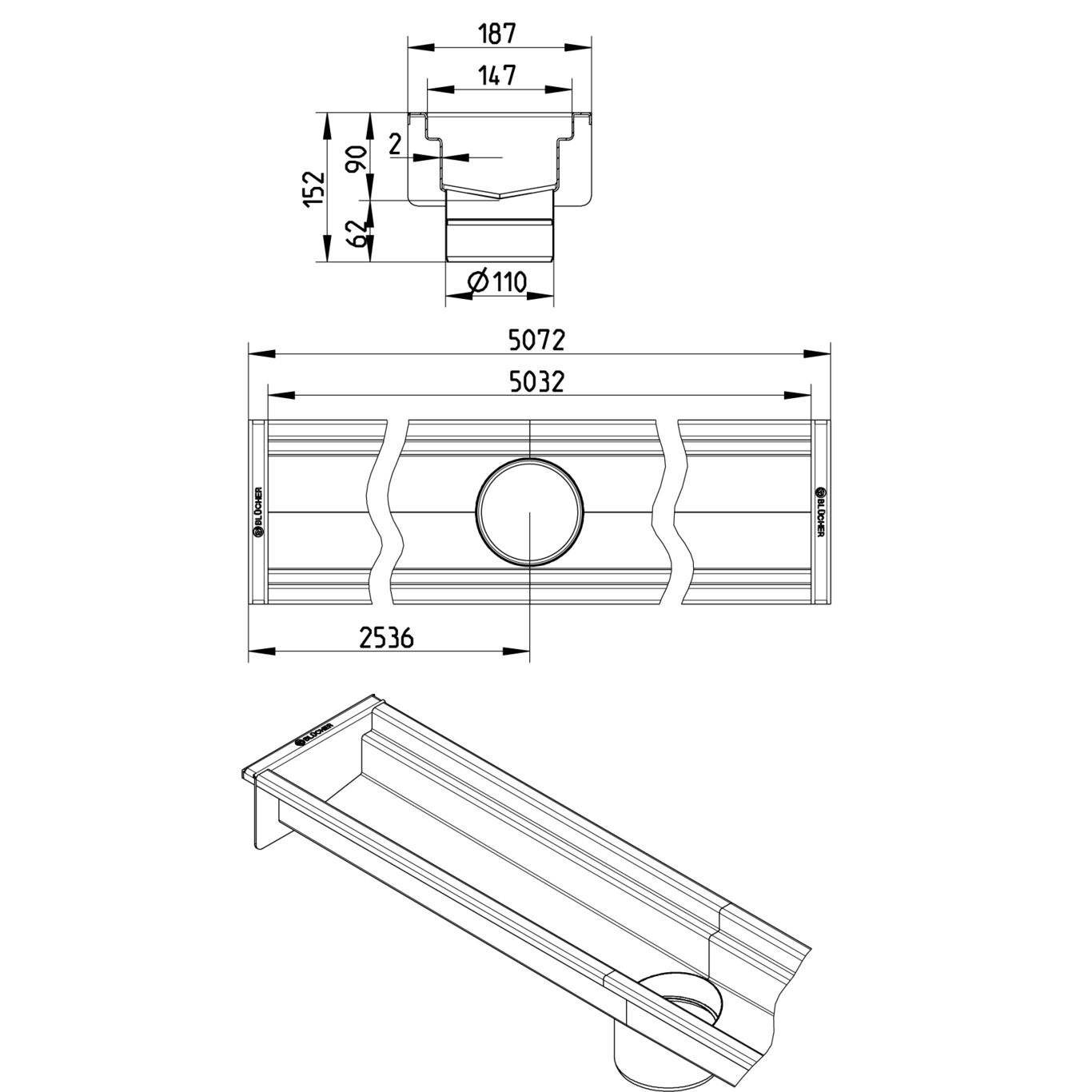

CHANNEL 150x5000 CENTER OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (Inch) | 5⅞x196⅞ |
| Size (mm) | 150x5000 |
| Weight (kg) | 27,68 |
| Weight (lbs) | 61,02 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - PS3079
TÜRK LOYDU - 25041616077231247
US - NSF
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Australasia
BLÜCHER® Channels EPD PL - Hygienic Certificate - All Products RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA
