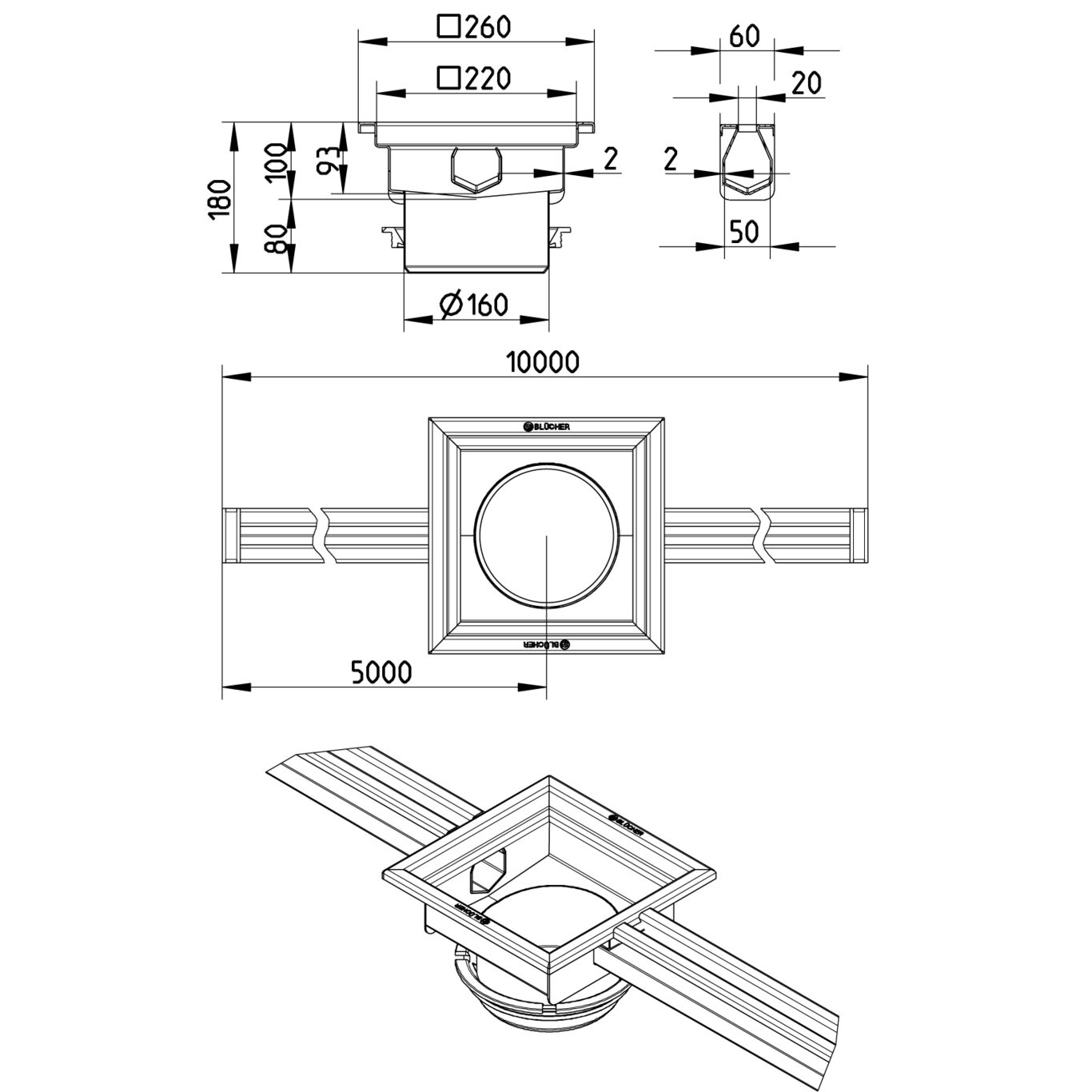

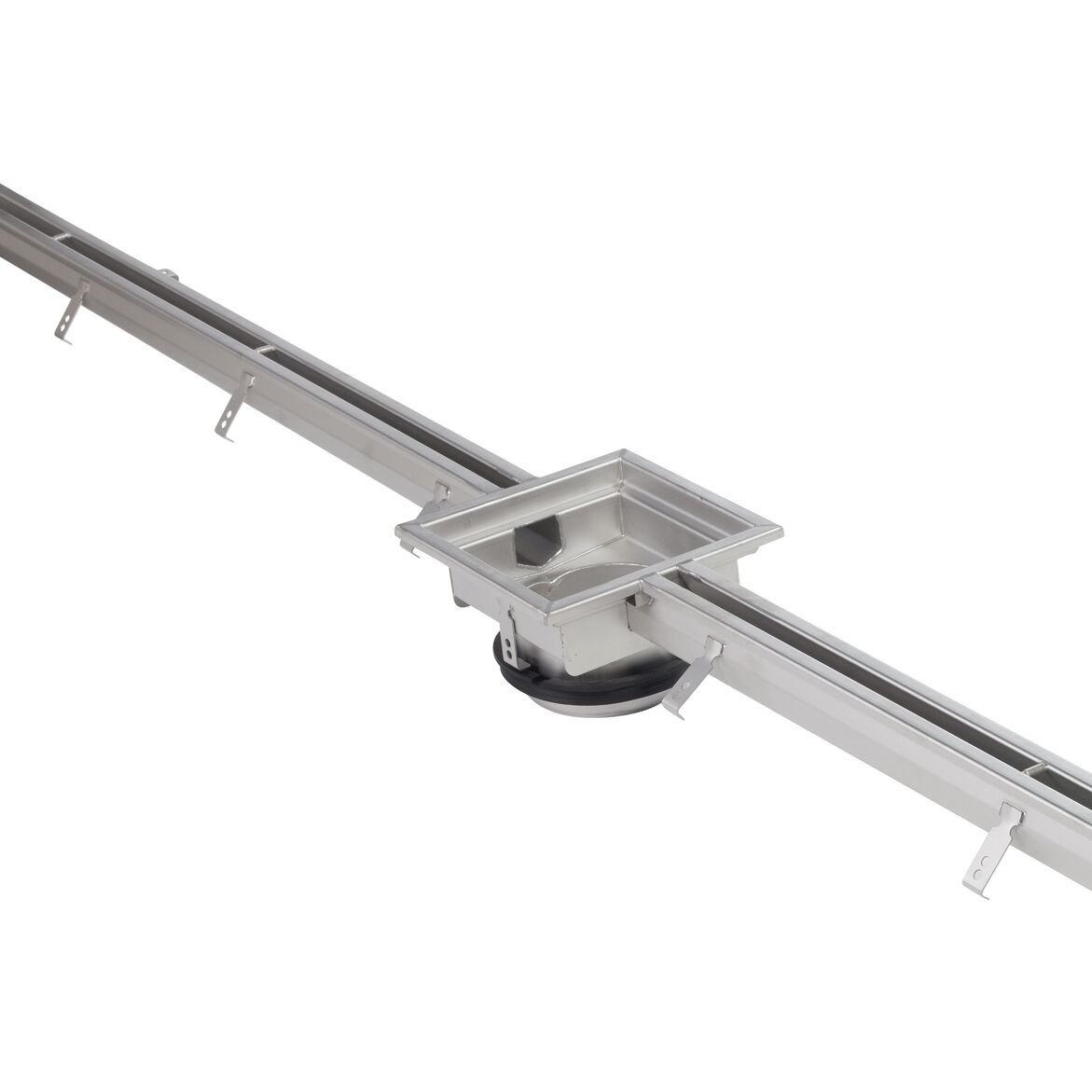

SLOT CHANNEL 20x10000 CENTER OUTLET - (673AK100-50BA)

Part Of the Series: Slot channel-No membrane

Type no.: 673AK100-50BA

EAN no.: 5705499125924

Size: 20x10000

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 180
Outlet Box Yes
Outlet dia. (Inch) 6
Outlet Diameter (mm) 160
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (Inch) ¾x393¾
Size (mm) 20x10000
Weight (kg) 42,46
Weight (lbs) 93,61
