KITCHEN CHANNEL 400x800 - (664FK008-06)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 664FK008-06
EAN no.: 5705499126075
LVI no.: 3304982
Size: 400x800

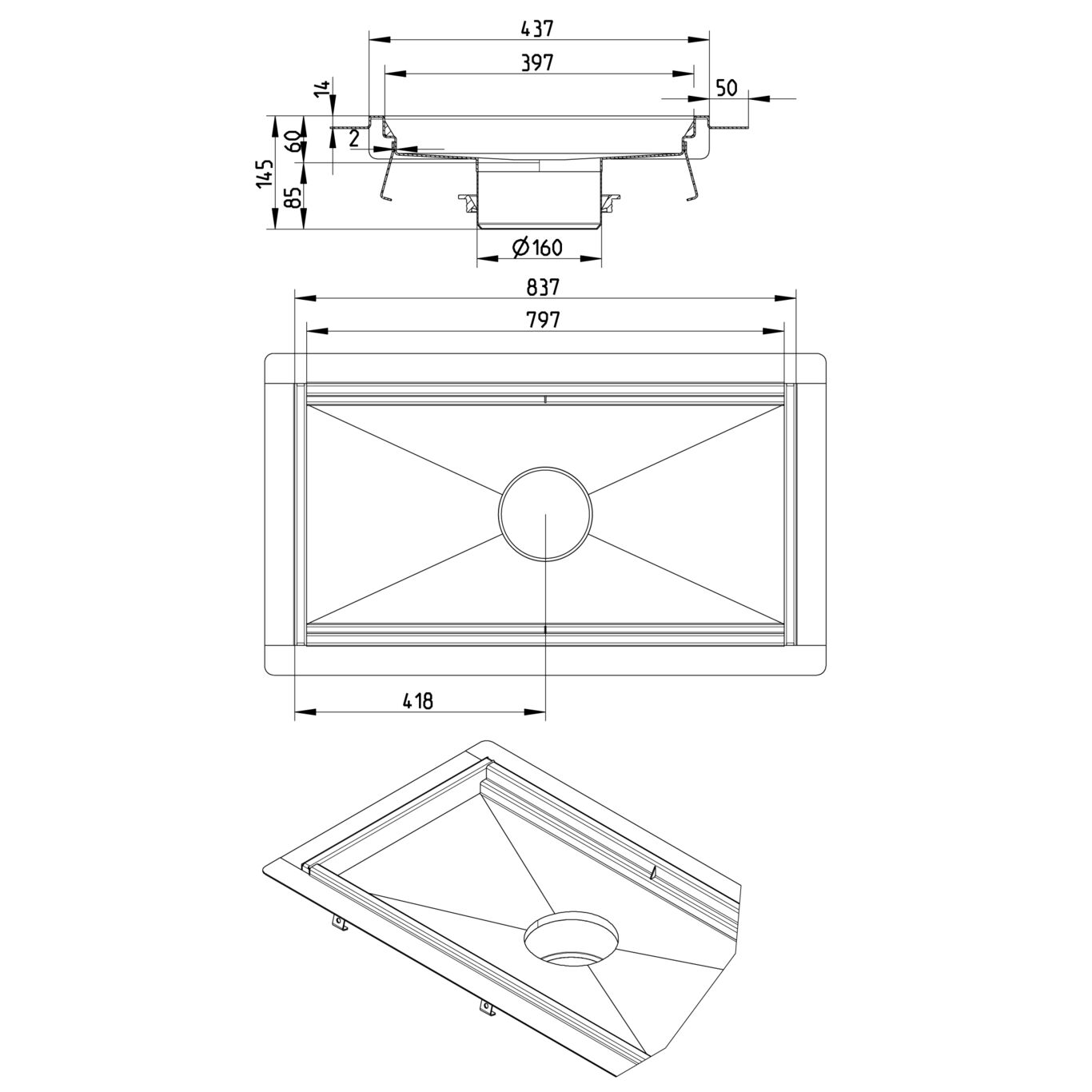

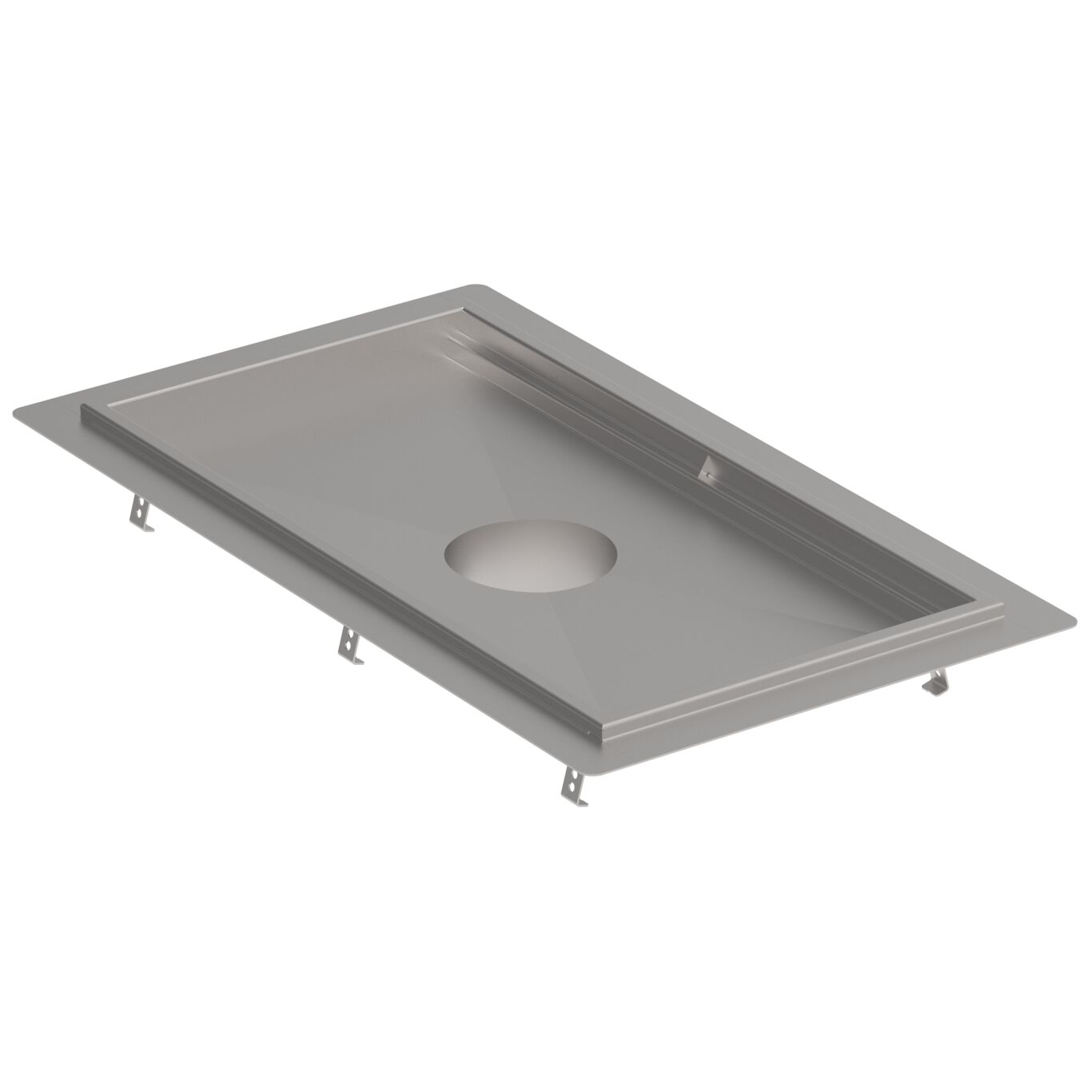

KITCHEN CHANNEL 400x800
-Floor: concrete, tiled and resin
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 145 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (Inch) | 15¾x31½ |
| Size (mm) | 400x800 |
| Weight (kg) | 18,93 |
| Weight (lbs) | 41,73 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
