LOWER PART FOR ROOF DRAIN - (401.000.160)
×
![]()
Part Of the Series: Lower part-bitumen
Type no.: 401.000.160
EAN no.: 5705499141122

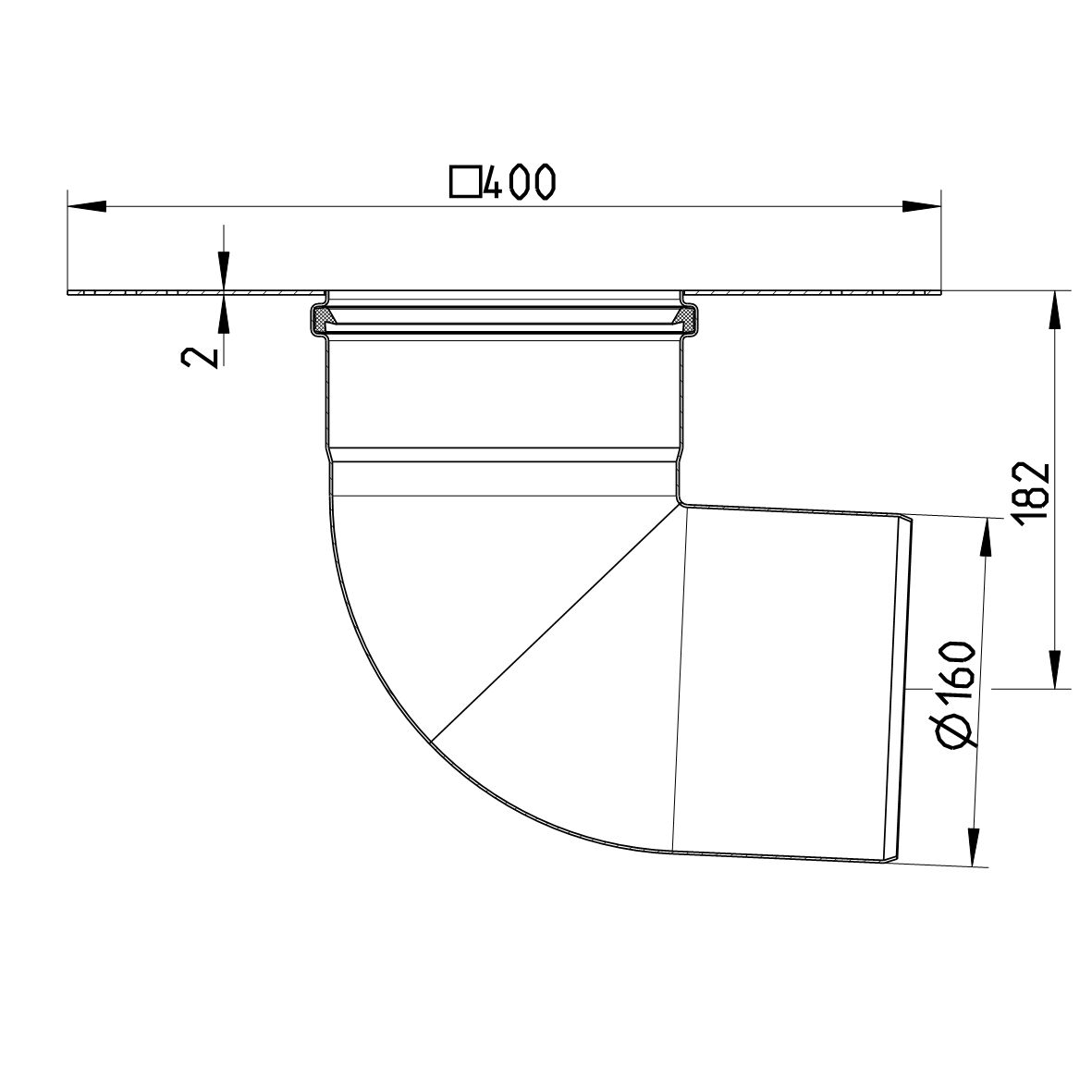

LOWER PART FOR ROOF DRAIN
-Roof: Bitumen
-Flange: 400x400mm
-Outlet: Ø160mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Horizontal |
| Roof | Bitumen |
| Weight (kg) | 4,06 |
| Weight (lbs) | 8,95 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
