ROOF DRAIN FOR SIPHONIC, HIGH - (402.206.110)
Part Of the Series: Drain for siphonic-single ply membrane
Type no.: 402.206.110
EAN no.: 5705499139129

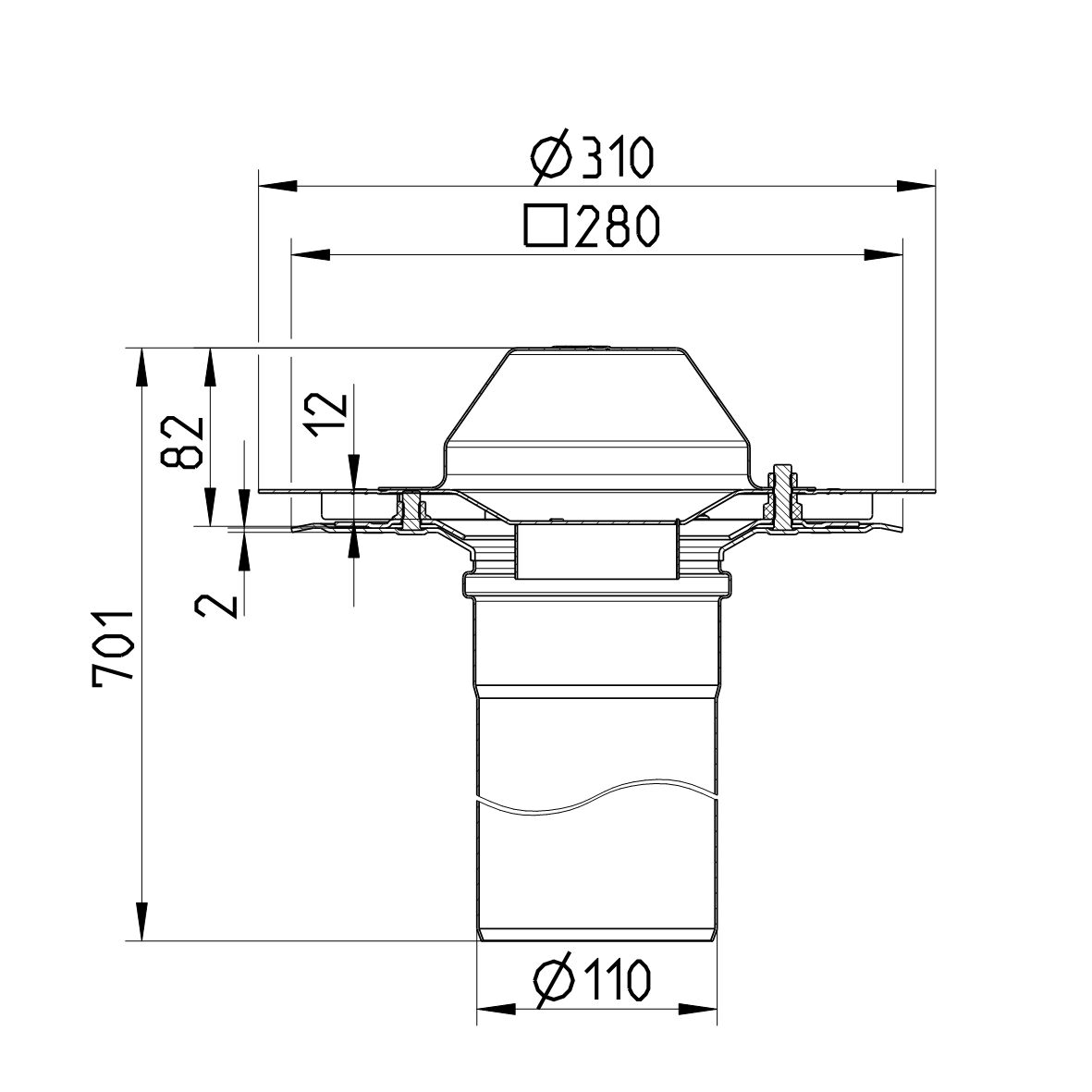

ROOF DRAIN FOR SIPHONIC, HIGH
-Roof: single ply membrane
-Flange: 280x280mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 35.0 |
Minimum Height (mm) | 701 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Roof | Single ply membrane |
System | Siphonic |
Weight (kg) | 4,76 |
Weight (lbs) | 10,49 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
