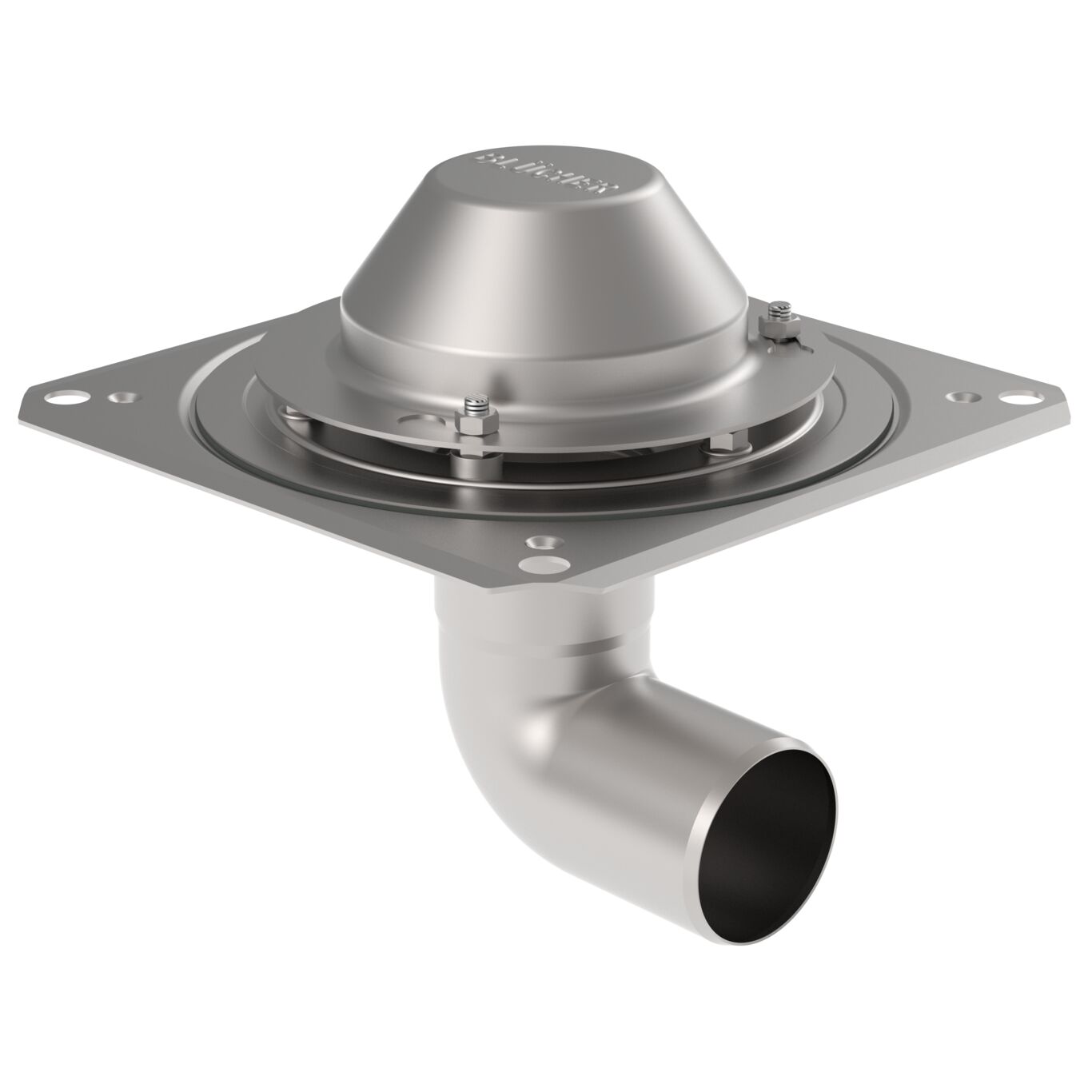

ROOF DRAIN FOR SIPHONIC - (402.200.075)
Part Of the Series: Drain for siphonic-single ply membrane
Type no.: 402.200.075
EAN no.: 5705499141337
ROOF DRAIN FOR SIPHONIC
-Roof: Single ply membrane
-Flange: 280x280mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 18.8 |
Minimum Height (mm) | 253 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Horizontal |
Roof | Single ply membrane |
System | Siphonic |
Weight (kg) | 2,94 |
Weight (lbs) | 6,48 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
