ROOF DRAIN FOR SIPHONIC - (404.202.075)
Part Of the Series: Drain for siphonic-channels
Type no.: 404.202.075
EAN no.: 5705499001167

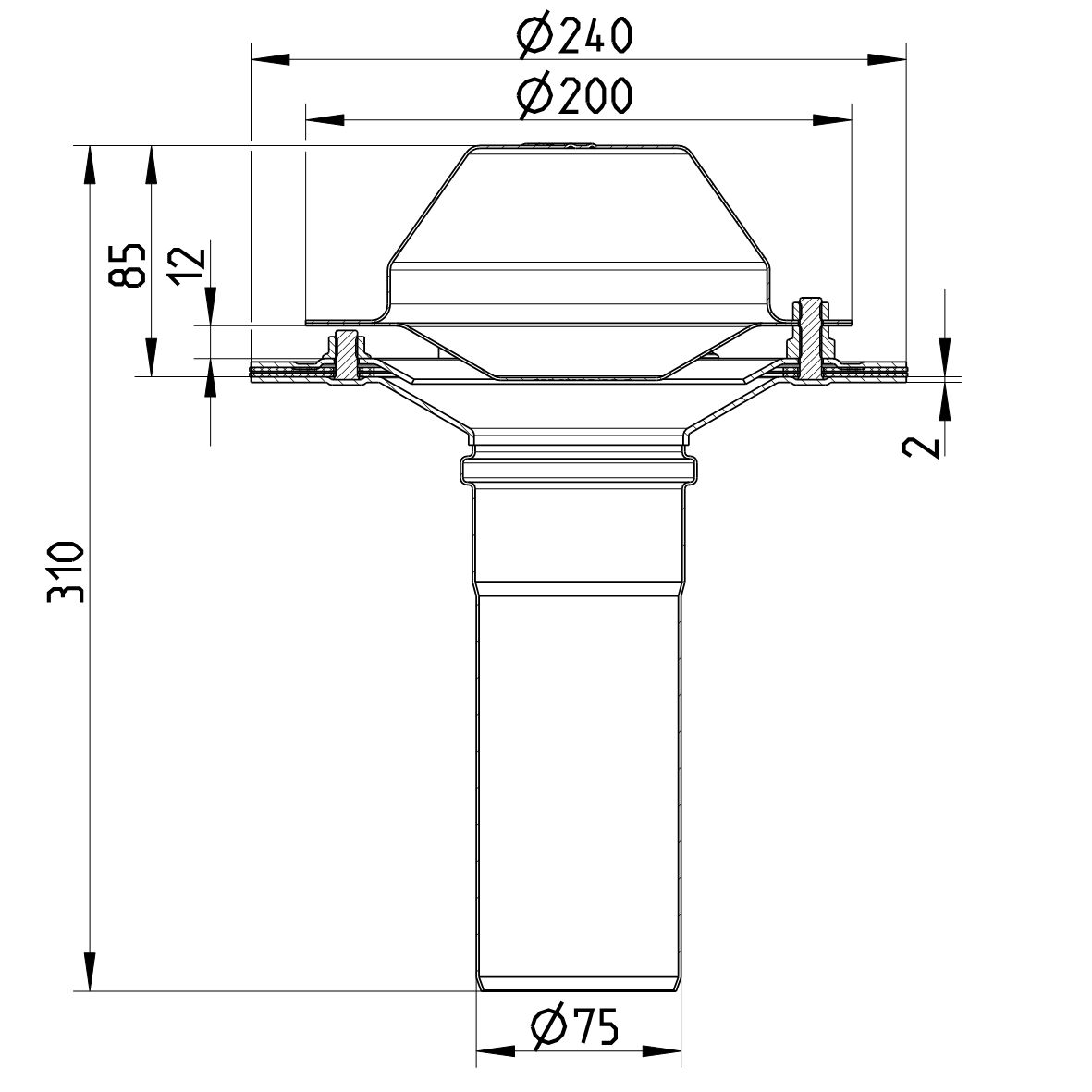

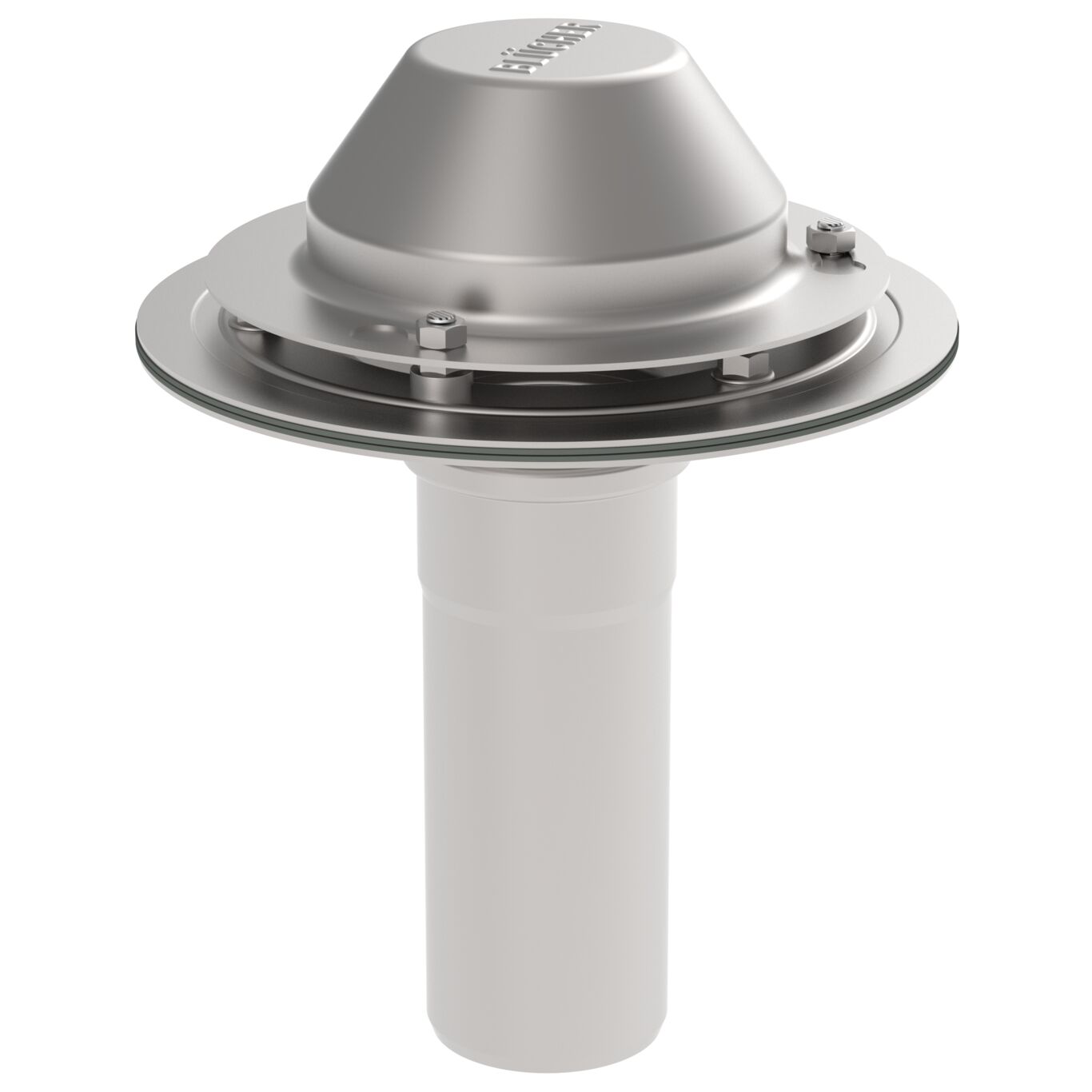

ROOF DRAIN FOR SIPHONIC
-For installation in metal gutters and channels
-Flange: Ø240mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 18.8 |
Minimum Height (mm) | 310 |
Outlet Diameter (mm) | 75 |
Weight (kg) | 2,57 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
