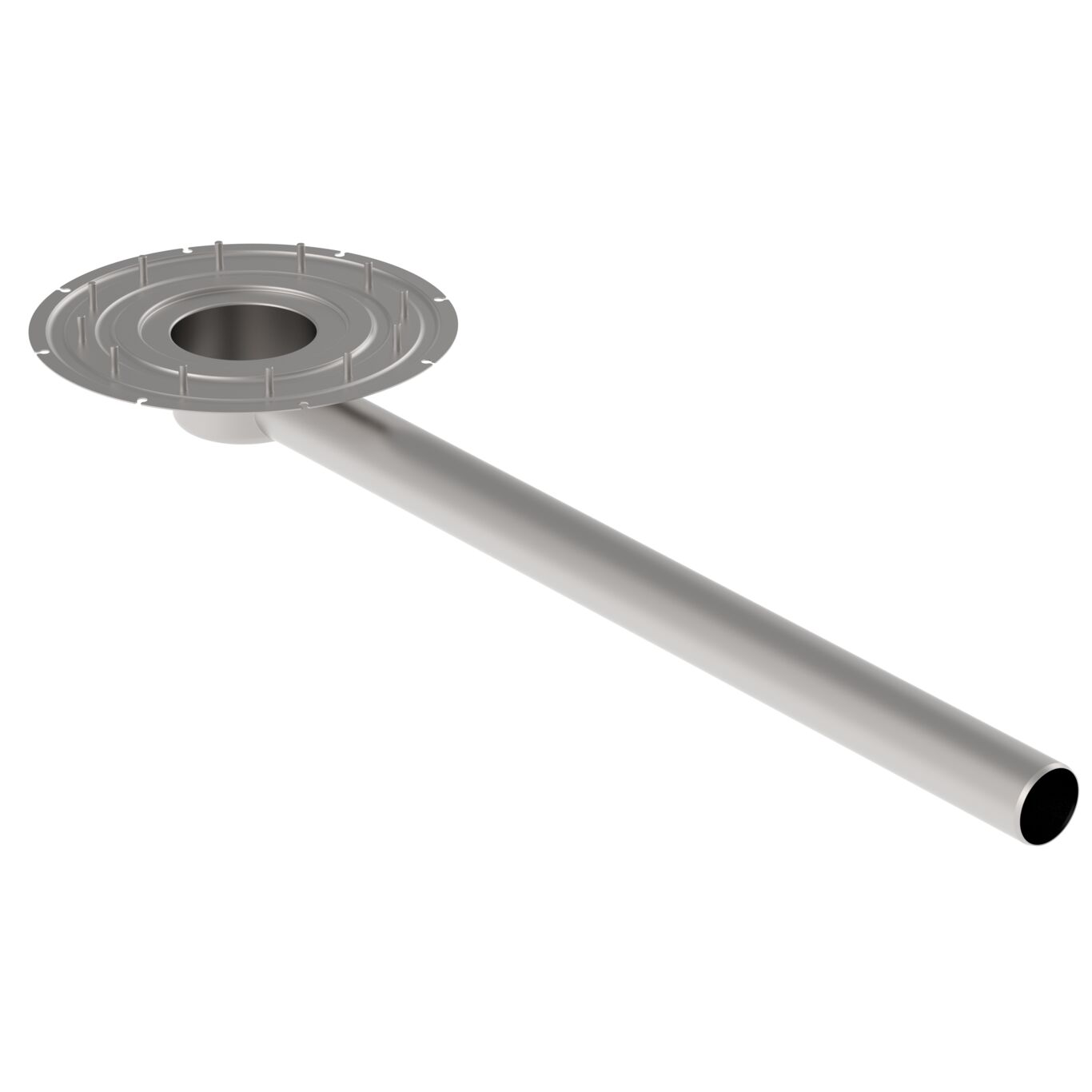

PARAPET DRAIN FOR GRAVITY - (405.000.075)
Part Of the Series: Drain-Parapet
Type no.: 405.000.075
EAN no.: 5705499139037
NRF no.: 3397199

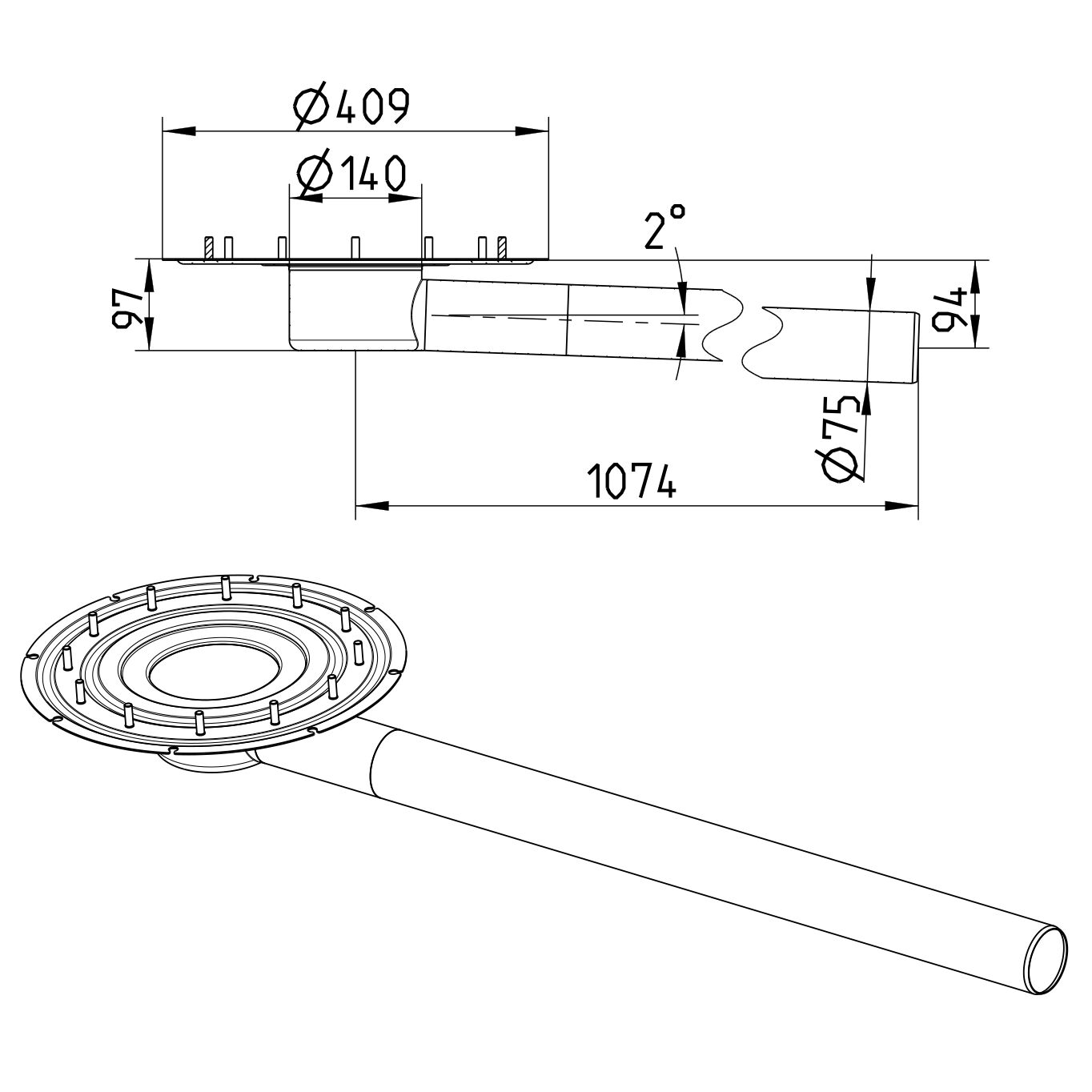

PARAPET DRAIN FOR GRAVITY
-Without leaf guard
-Clamping flange : Bitumen and single ply membrane
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 97 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Horizontal |
Roof | Bitumen|Single ply membrane |
System | Gravity |
Weight (kg) | 3,77 |
Weight (lbs) | 8,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
