ROOF DRAIN FOR GRAVITY - (404.102.050)
×
![]()
Part Of the Series: Drain for gravity-channels
Type no.: 404.102.050
EAN no.: 5705499001112

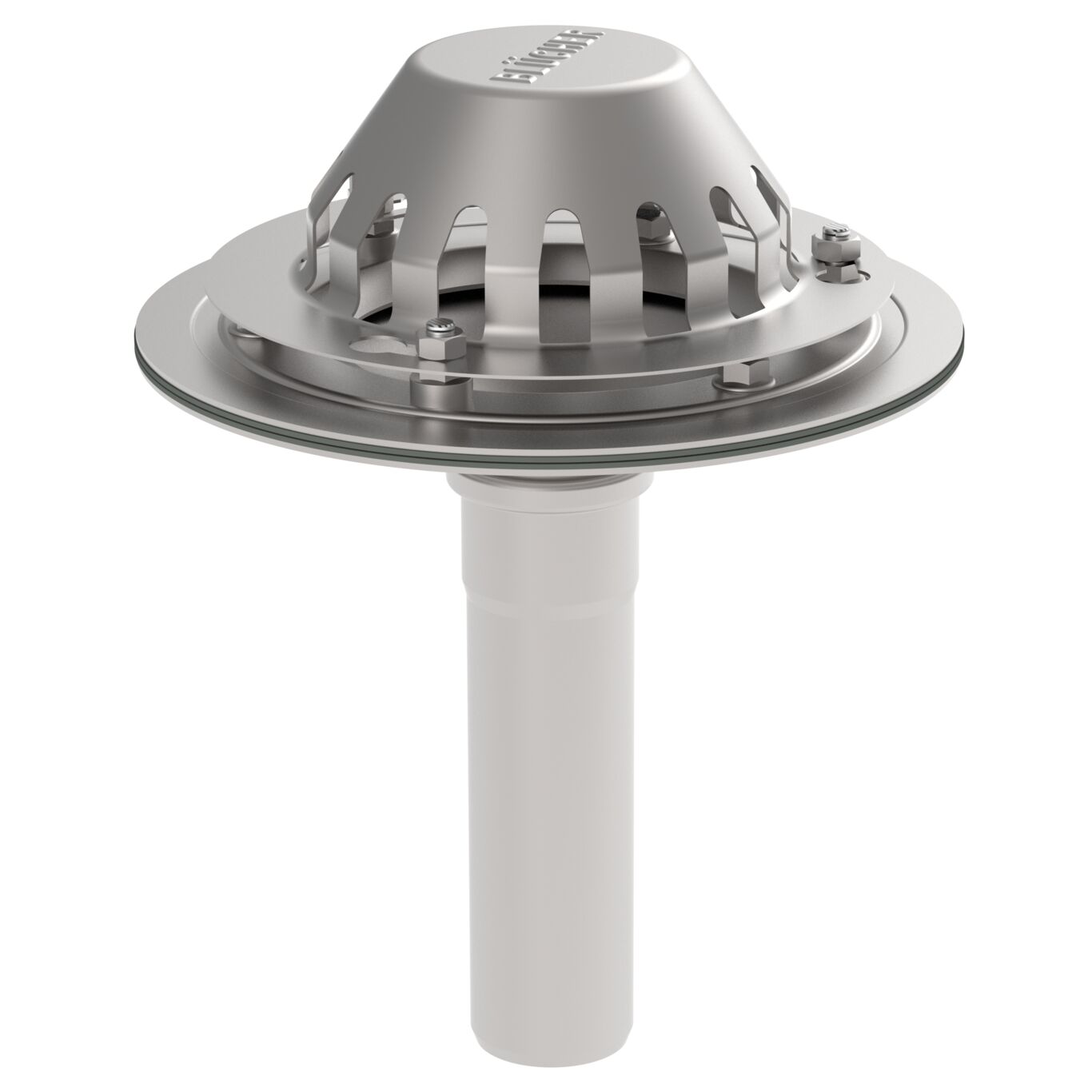

ROOF DRAIN FOR GRAVITY
-For installation in metal gutters and channels

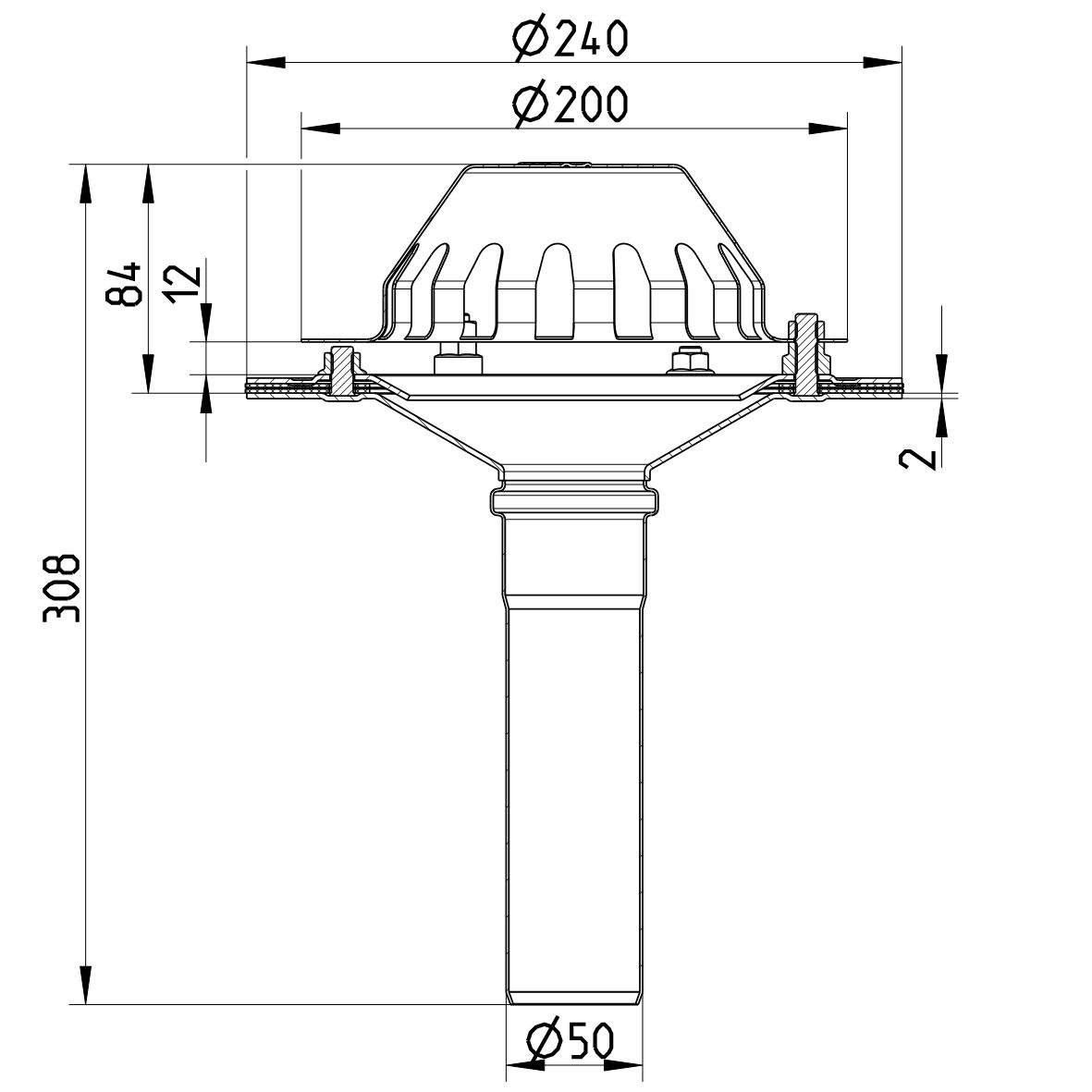

-Flange: Ø240mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 4.8 |
| Minimum Height (mm) | 308 |
| Outlet Diameter (mm) | 50 |
| Roof | Metal Gutter |
| System | Gravity |
| Weight (kg) | 2,14 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
