ROOF DRAIN FOR GRAVITY - (401.100.110)
Part Of the Series: Drain for gravity-bitumen
Type no.: 401.100.110
EAN no.: 5705499141153

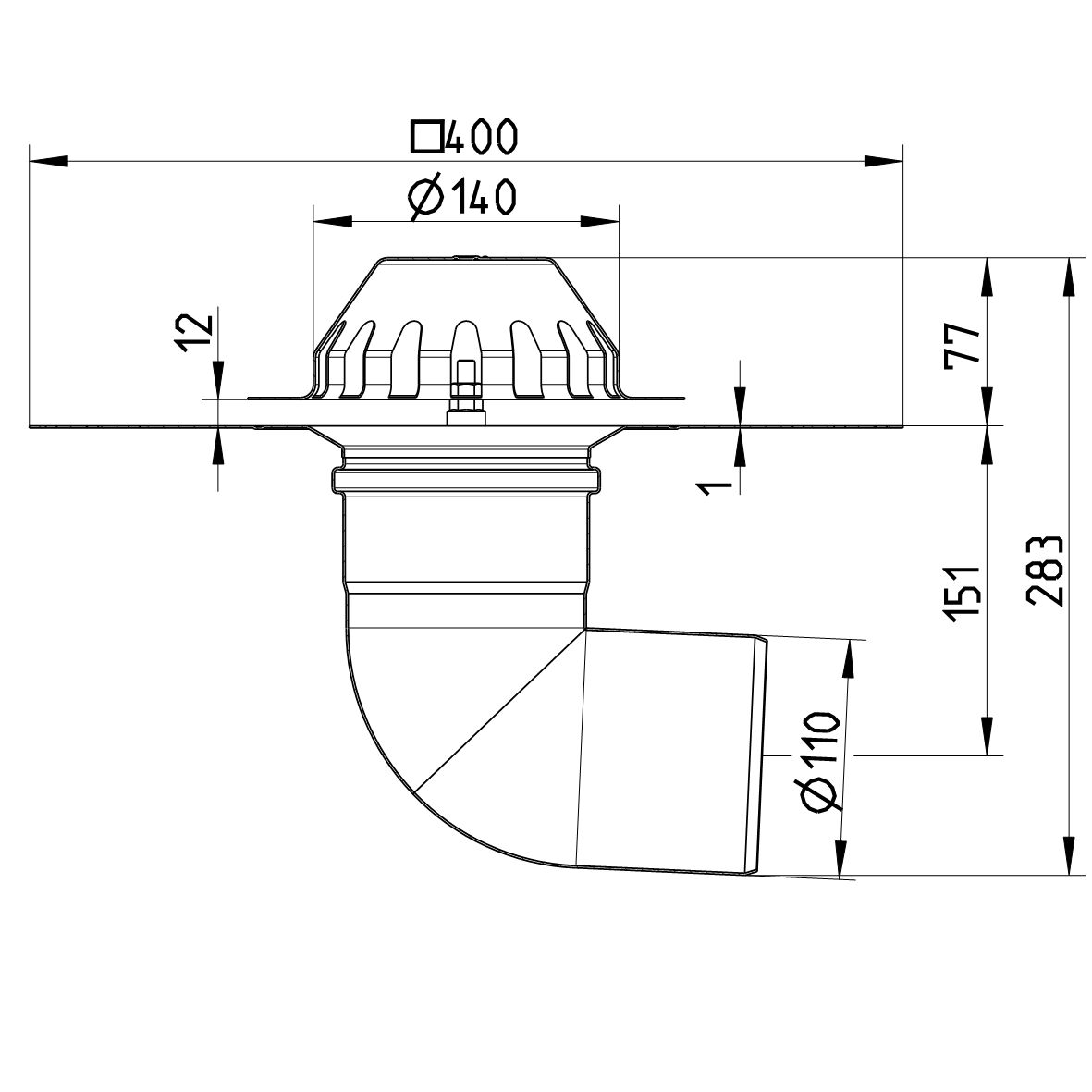

ROOF DRAIN FOR GRAVITY
-Roof: Bitumen
-Flange: 400x400mm
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 5.1 |
Minimum Height (mm) | 283 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Horizontal |
Roof | Bitumen |
System | Gravity |
Weight (kg) | 2,38 |
Weight (lbs) | 5,25 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
