ROOF DRAIN FOR GRAVITY - (403.100.050)
Part Of the Series: Drain for gravity-bitumen collar
Type no.: 403.100.050
EAN no.: 5705499141498
VVS no.: 164105050

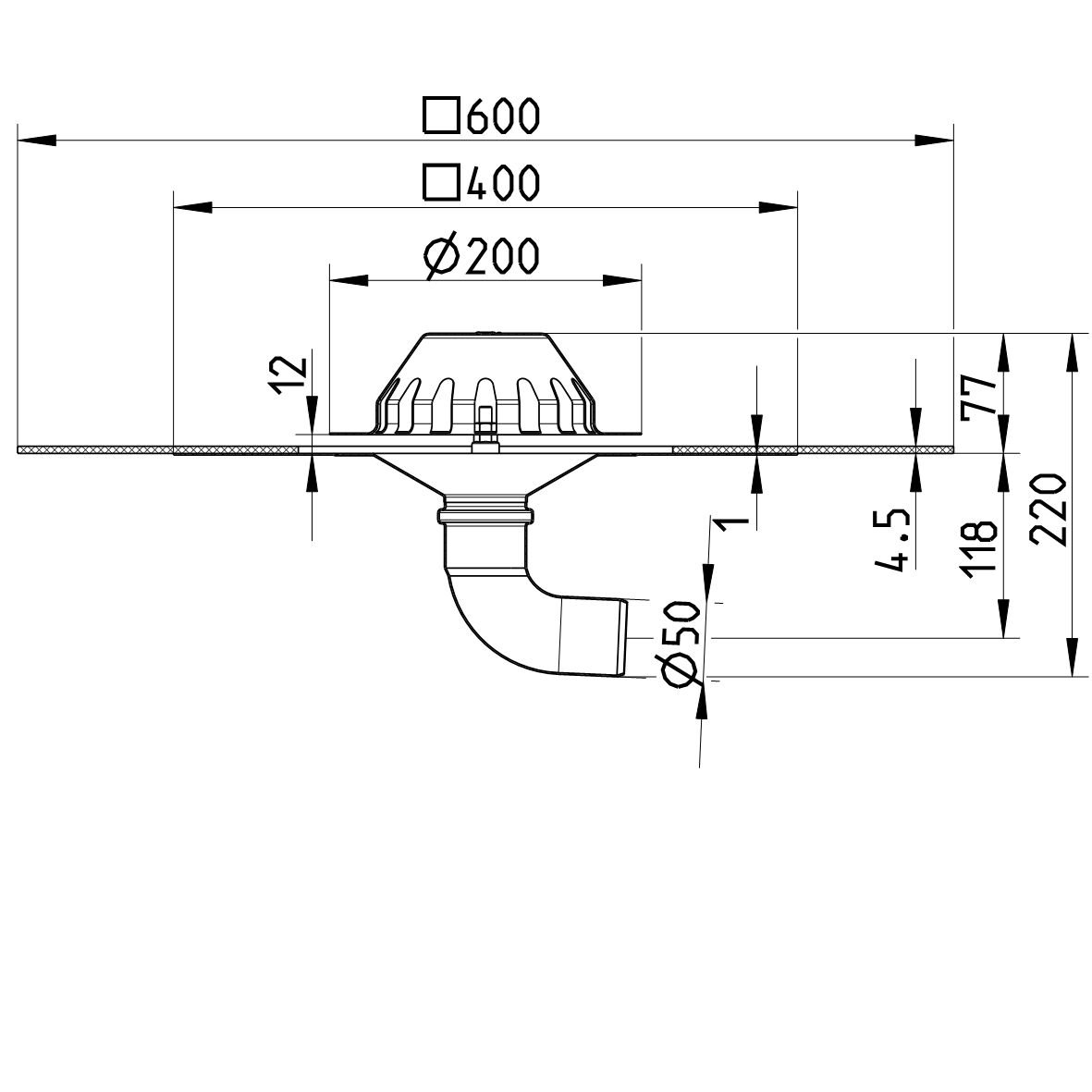

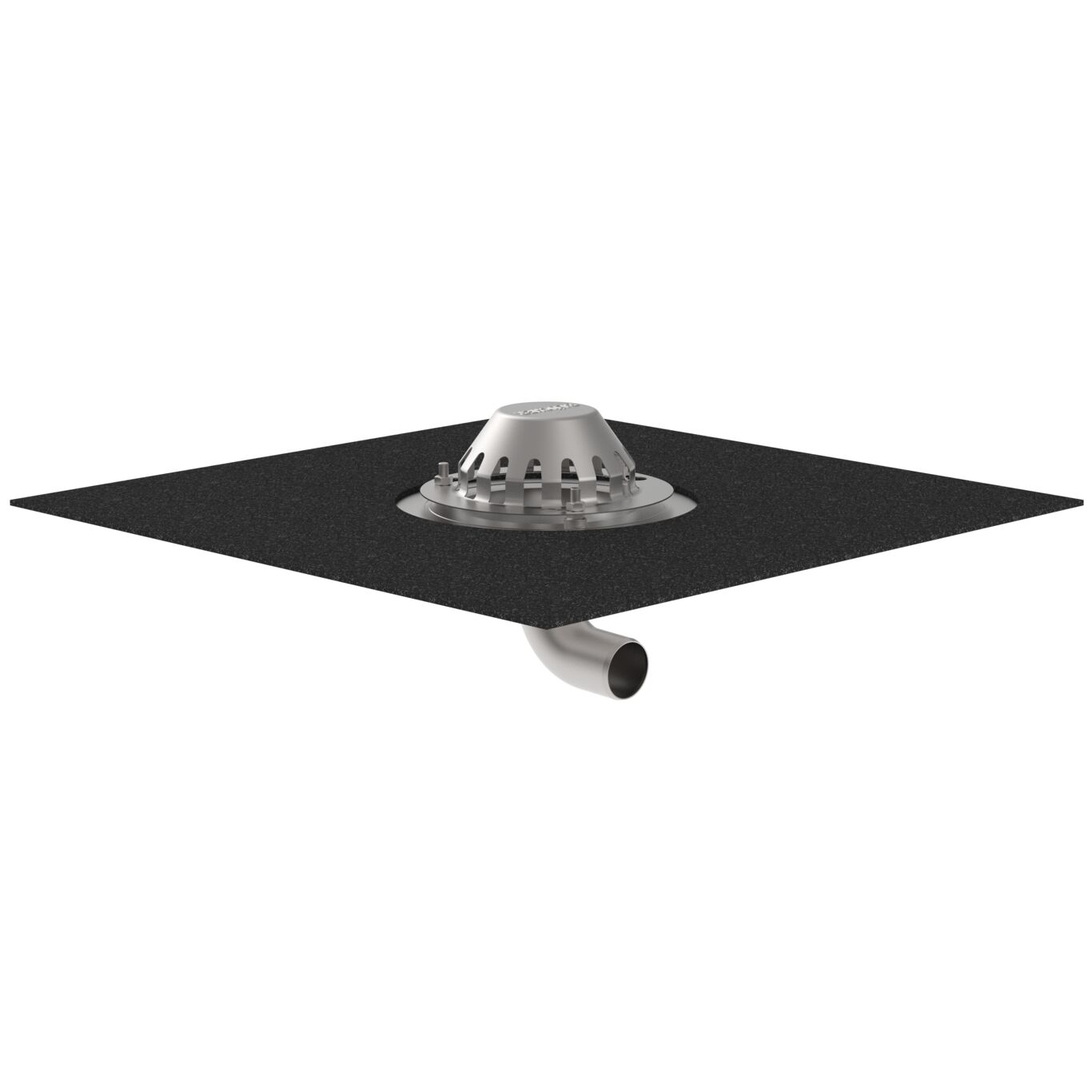

ROOF DRAIN FOR GRAVITY
-With pre-mounted bitumen collar
-Roof: bitumen
-Flange: 400x400mm
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 4.8 |
Minimum Height (mm) | 220 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Horizontal |
Roof | Bitumen |
System | Gravity |
Weight (kg) | 3,43 |
Weight (lbs) | 7,56 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
