COMPACT DRAIN - (185.151.075)
×
![]()
Part Of the Series: Drain-Balcony-150
Type no.: 185.151.075
EAN no.: 5705499002171
Size: 147x147

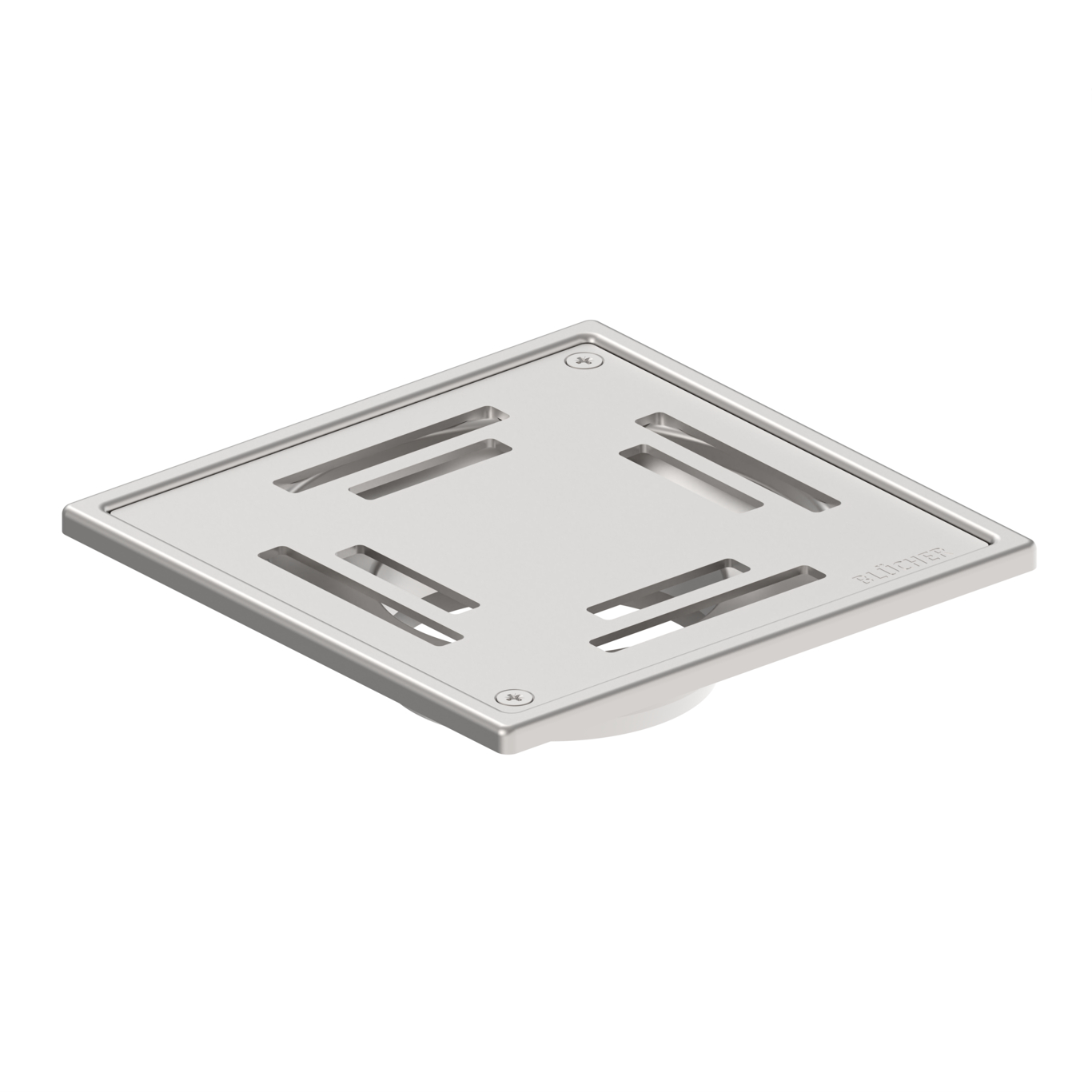

COMPACT DRAIN
-With screw lock, removable water trap cannot be used
-Floor: concrete and tiled
-Frame: 147x147mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |

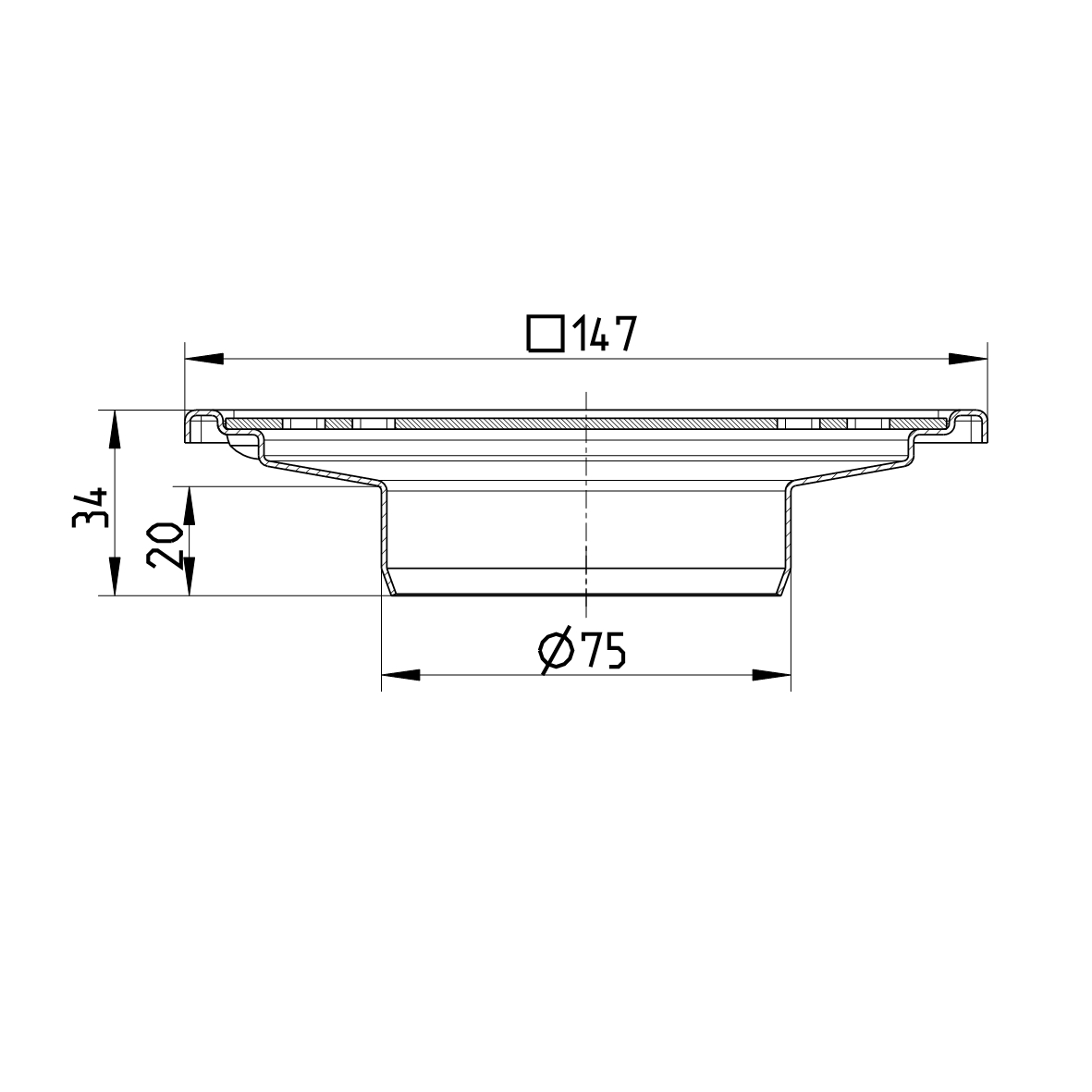

| Minimum Height (mm) | 34 |
| Number of Screws | 2 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 147x147 |
| Weight (kg) | 0,45 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
