COMPACT DRAIN 150X150 - (183.151.100)
×
![]()
Part Of the Series: Drain-Balcony-150
Type no.: 183.151.100
EAN no.: 5705499120332
VVS no.: 153701200
LVI no.: 3305827
Size: 150x150

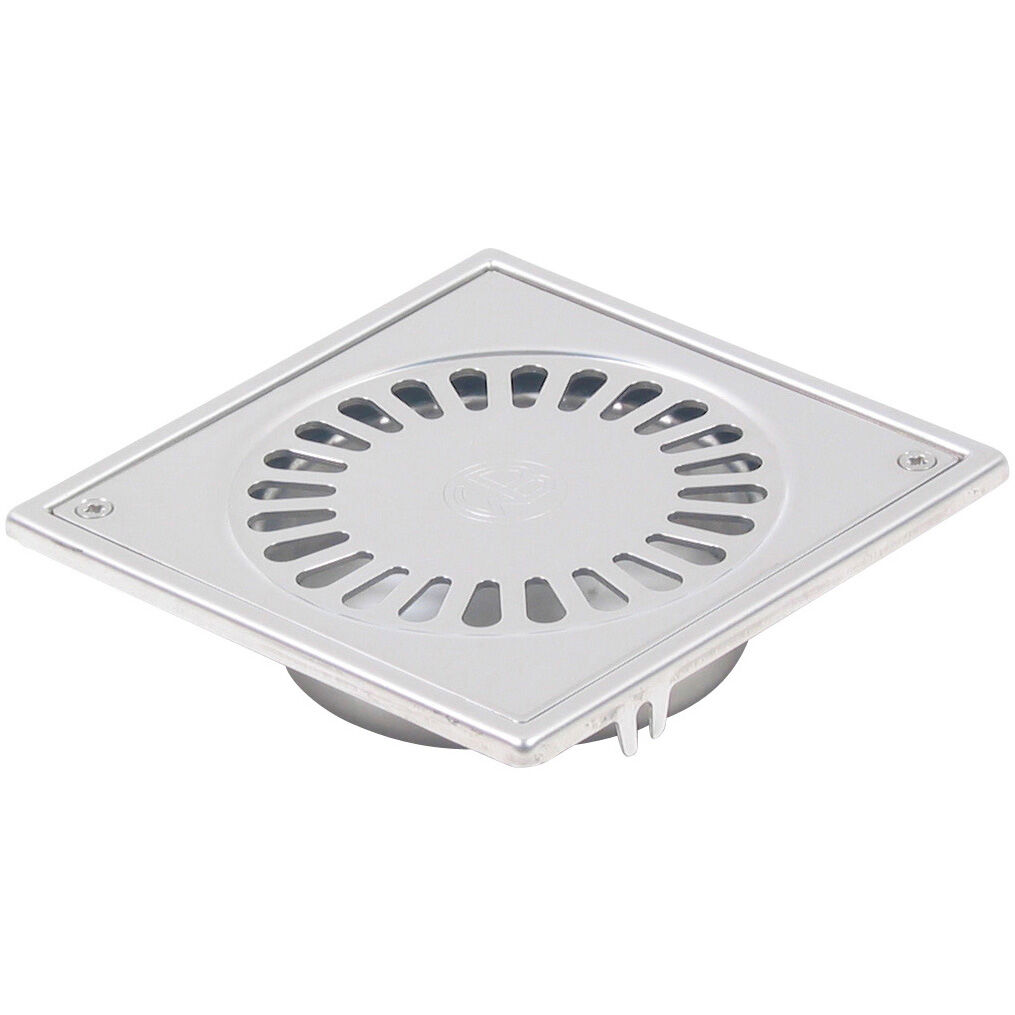

COMPACT DRAIN 150X150
-With screw lock, removable water trap cannot be used
-Floor: concrete and tiled
-Frame: 147x147mm
-Outlet: Ø100mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 35 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 2 |
| Number of Screws | 2 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 100 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 5⅞x5⅞ |
| Size (mm) | 150x150 |
| Weight (kg) | 0,45 |
| Weight (lbs) | 0,99 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
