COMPACT DRAIN 100X100 - (183.101.040)
×
![]()
Part Of the Series: Drain-Balcony-100
Type no.: 183.101.040
EAN no.: 5705499120295
VVS no.: 153701040
RSK no.: 7120095
NRF no.: 3394743
LVI no.: 3305823
Size: 100x100
COMPACT DRAIN 100X100
-With screw lock, removable water trap cannot be used
-Floor: concrete and tiled

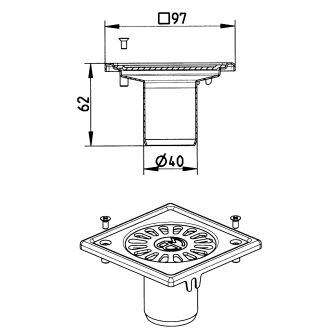

-Frame: 97x97mm
-Outlet: Ø40mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 62 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 2 |
| Number of Screws | 2 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 3⅞x3⅞ |
| Size (mm) | 100x100 |
| Weight (kg) | 0,14 |
| Weight (lbs) | 0,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
