PENETRATION WITH SPIGOT - (872.210.200 S)
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 872.210.200 S
EAN no.: 5705499139778

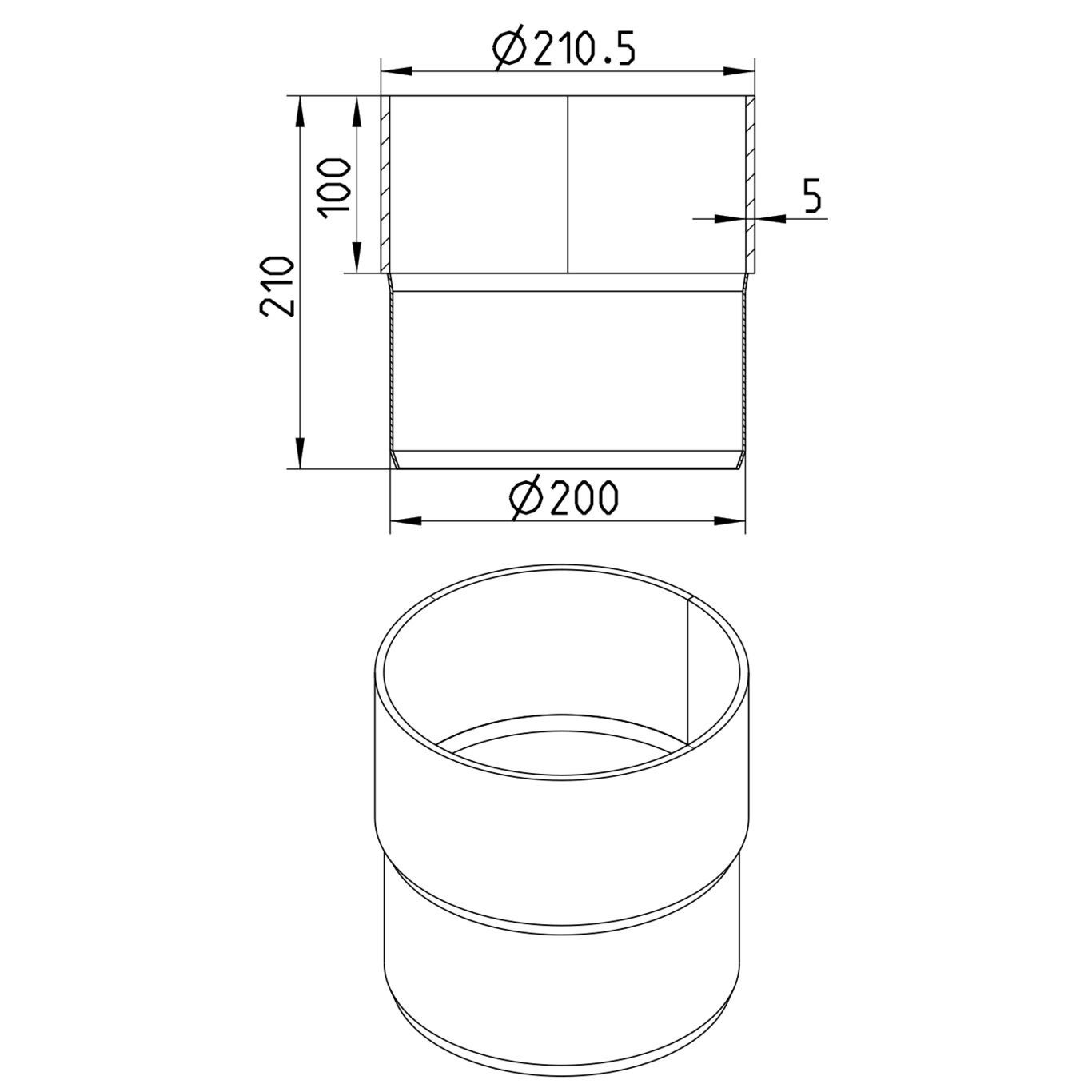

PENETRATION WITH SPIGOT
-Welding transition: Ø210.5mm
-Diameter: Ø200mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 210 |
Outlet dia. (Inch) | 8 |
Outlet Diameter (mm) | 200 |
Weight (kg) | 3,37 |
Weight (lbs) | 7,43 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
DNV - MEDB000016W, Rev7, Penetrations with SI sealing
HACCP Food Safety Programme - Europe ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes
