PENETRATION WITH SPIGOT - (872.168.160 S)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 872.168.160 S
EAN no.: 5705499139761
LVI no.: 0254468

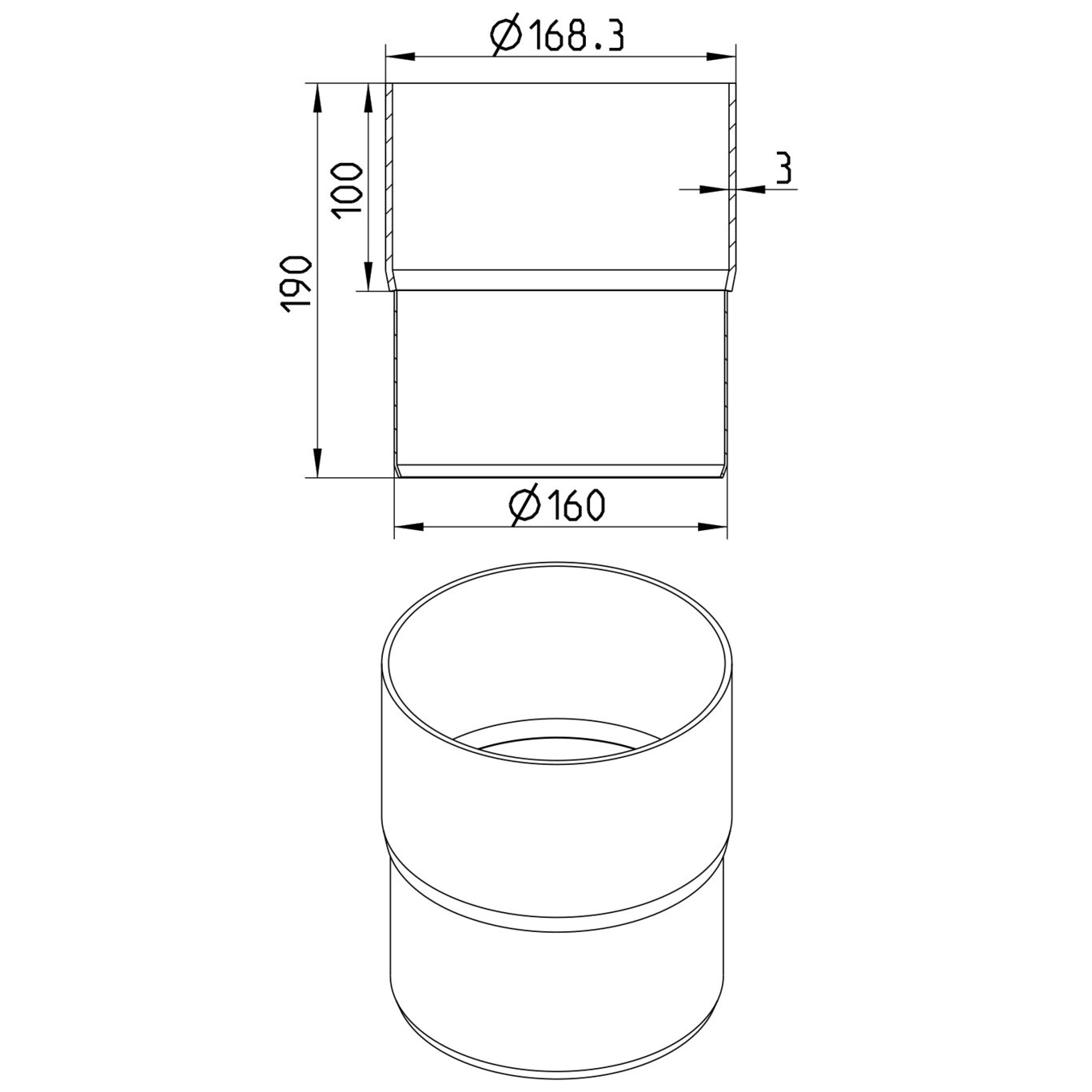

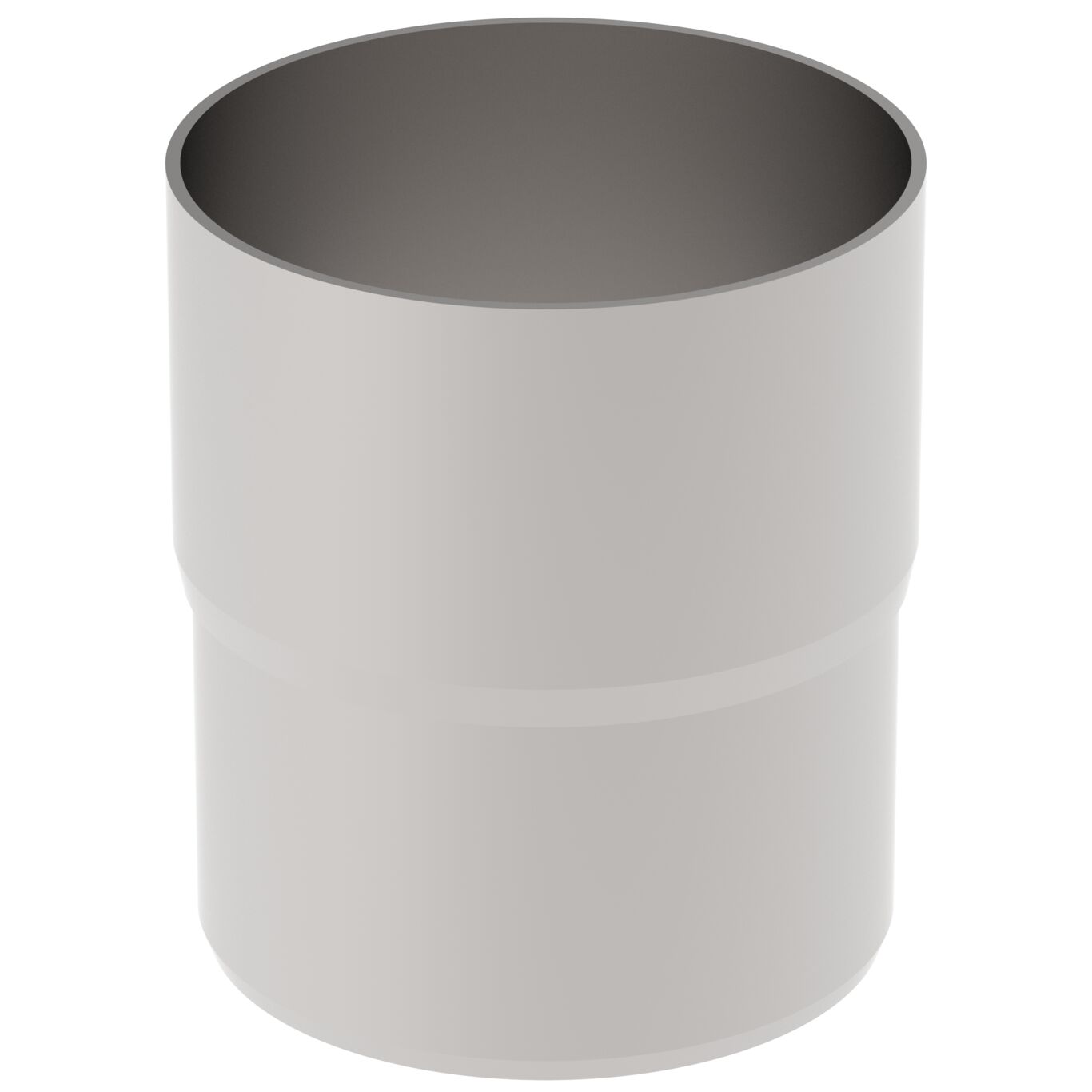

PENETRATION WITH SPIGOT
-Welding transition: Ø168.3mm
-Diameter: Ø160mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 190 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,79 |
| Weight (lbs) | 3,95 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
DNV - MEDB000016W, Rev7, Penetrations with SI sealing
