PENETRATION WITH SPIGOT - (872.050.040 S)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 872.050.040 S
EAN no.: 5705499413304
NRF no.: 2172806

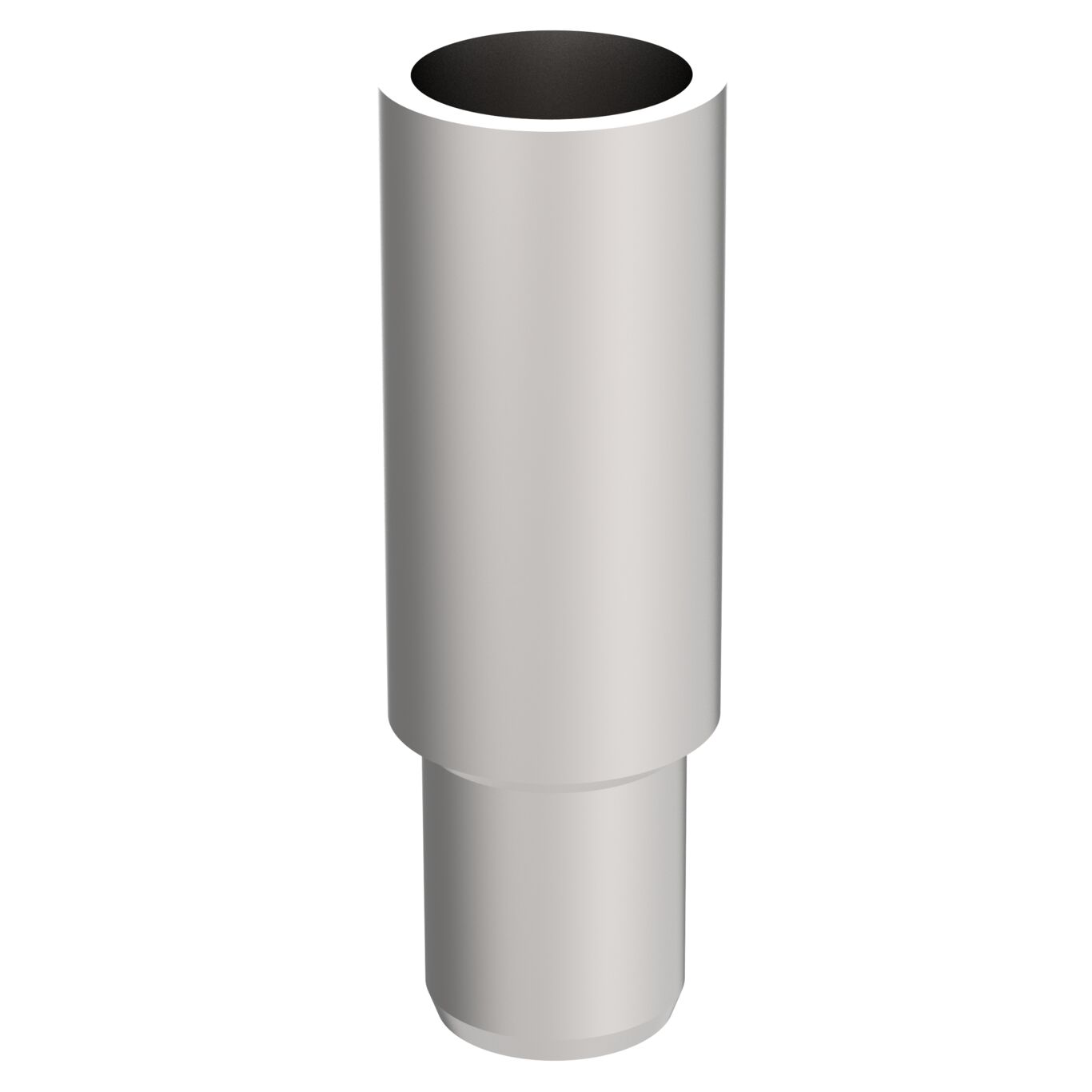

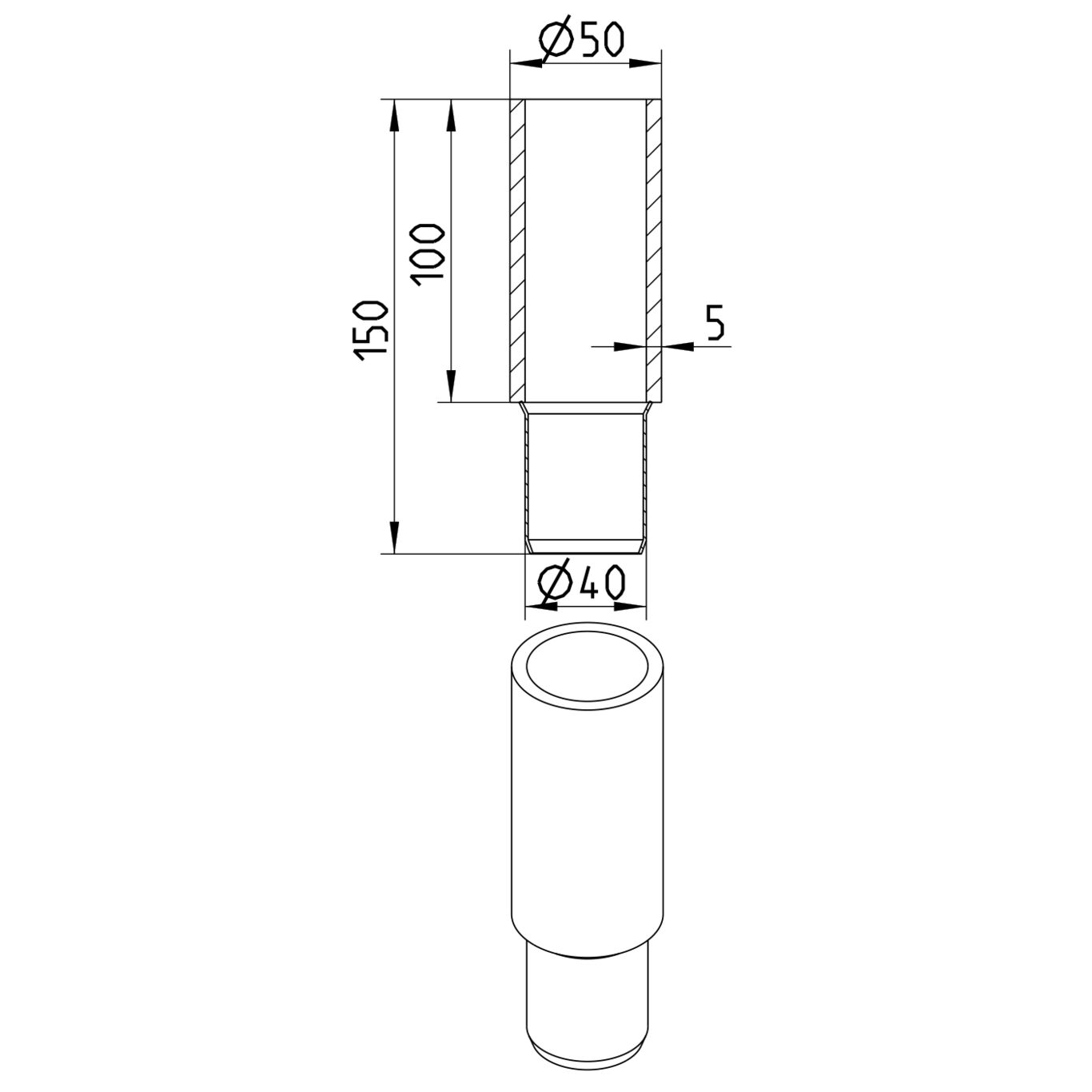

PENETRATION WITH SPIGOT
-Welding transition: Ø50mm
-Diameter: Ø40mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| GWP total Co2 eq. for A1-A3 per product | 2,13kg |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 150 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,61 |
| Weight (lbs) | 1,83 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
BLÜCHER® EuroPipe EPD
Declaration of Conformity Welded penetrations
TÜRK LOYDU - 25041616077231247
HACCP Food Safety Programme - Europe
DNV - MERB0001N3Y, Rev0 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702 ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA_02
