PENETRATION WITH SOCKET - (875.168.160FS)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 875.168.160FS
EAN no.: 5705499139938

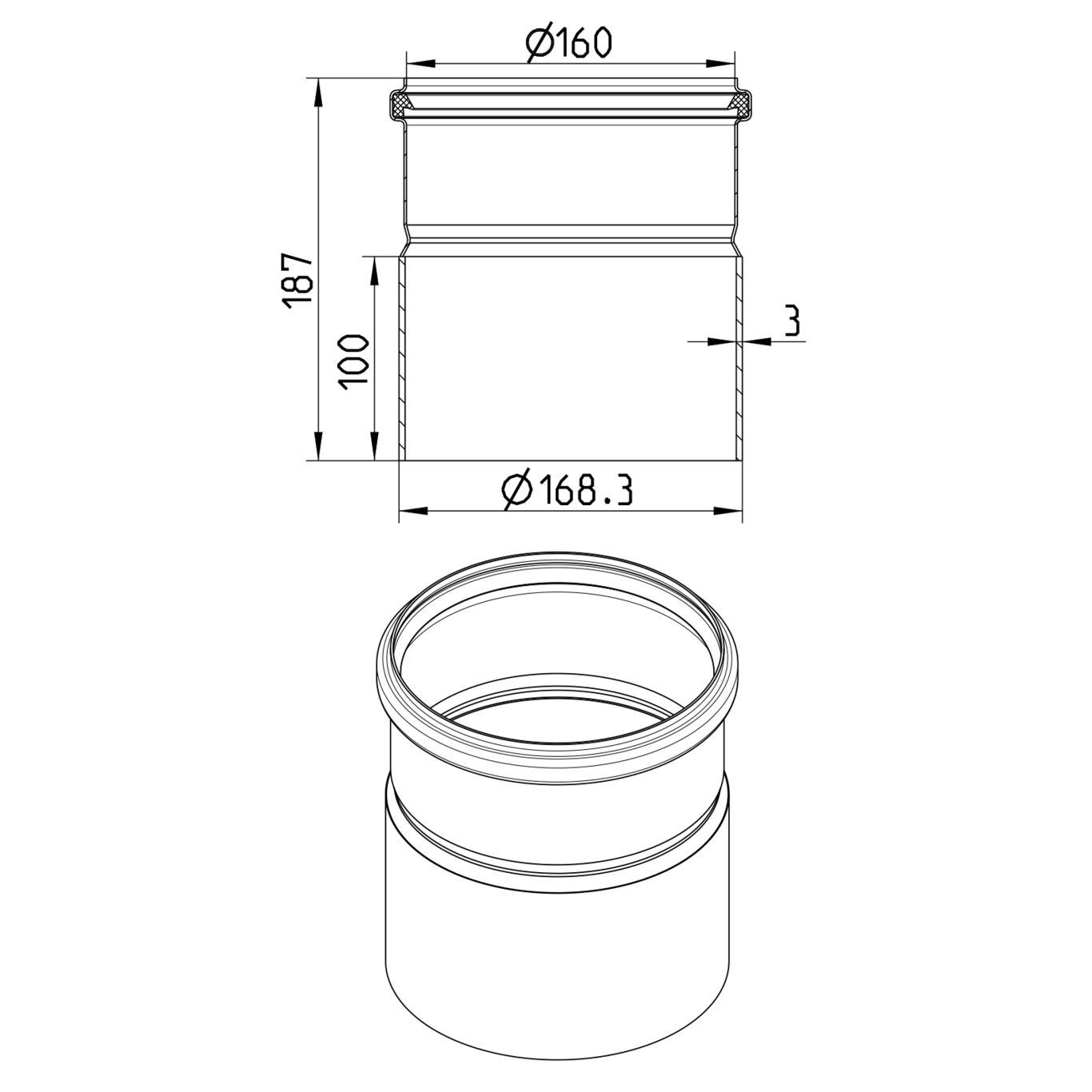

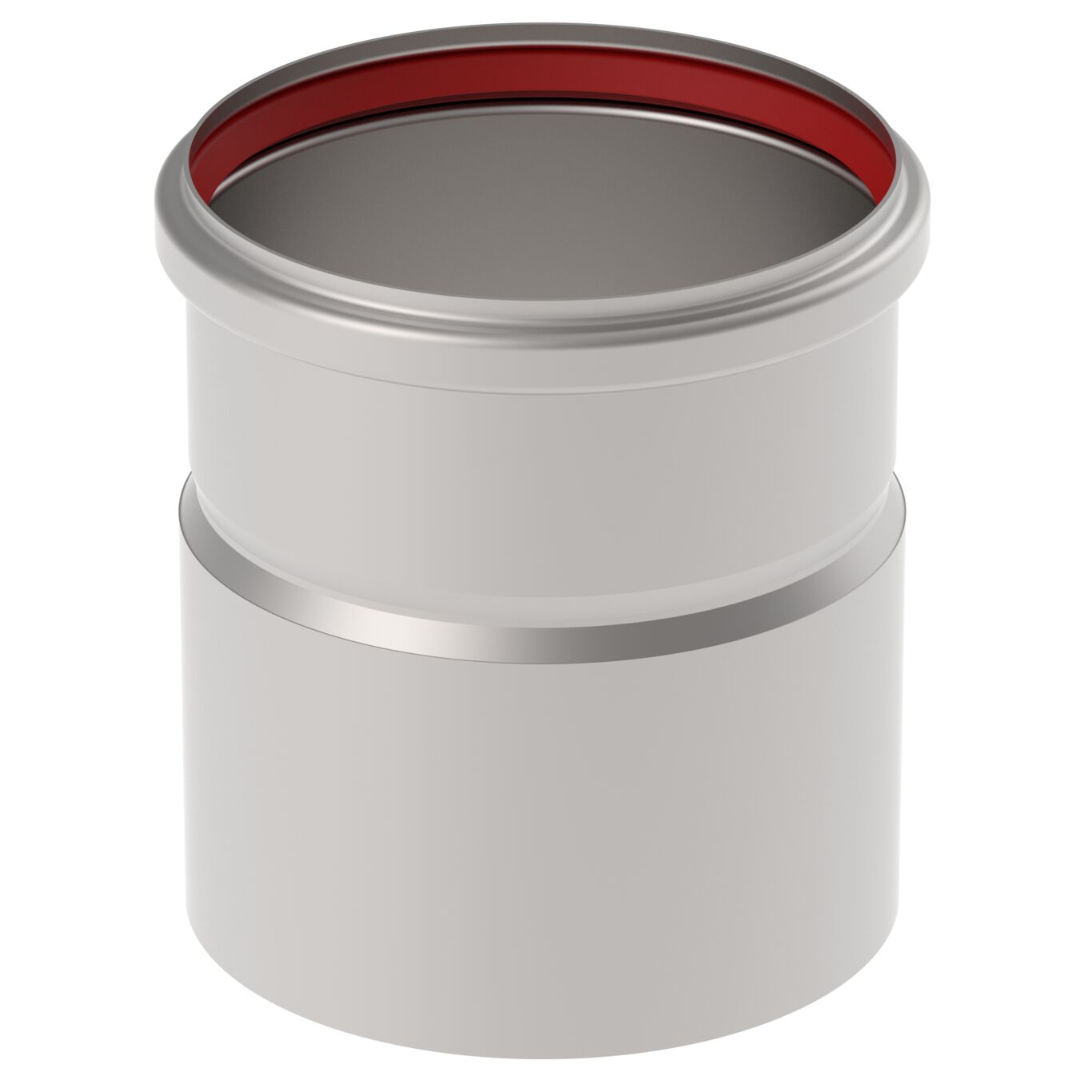

PENETRATION WITH SOCKET
-Welding transition: Ø168.3mm
-With SI sealing
-Diameter: Ø160mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 188 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,78 |
| Weight (lbs) | 3,92 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
HACCP Food Safety Programme - Australasia
BLÜCHER® EuroPipe EPD
DNV - MERB0001N3Y, Rev0
TÜRK LOYDU - 25041616077231247 ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes
