PENETRATION WITH SOCKET - (875.076.075FS)
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 875.076.075FS
EAN no.: 5705499139839

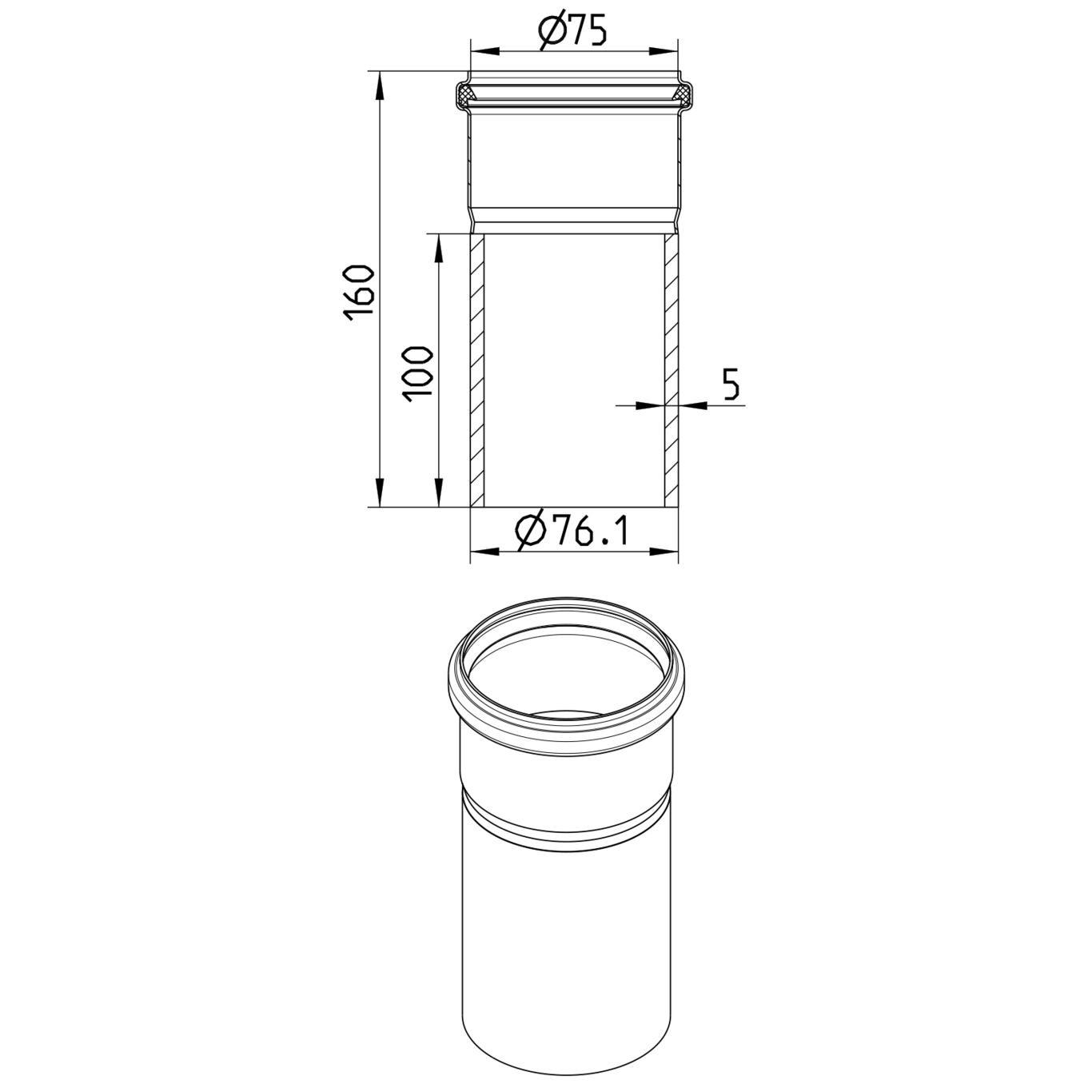

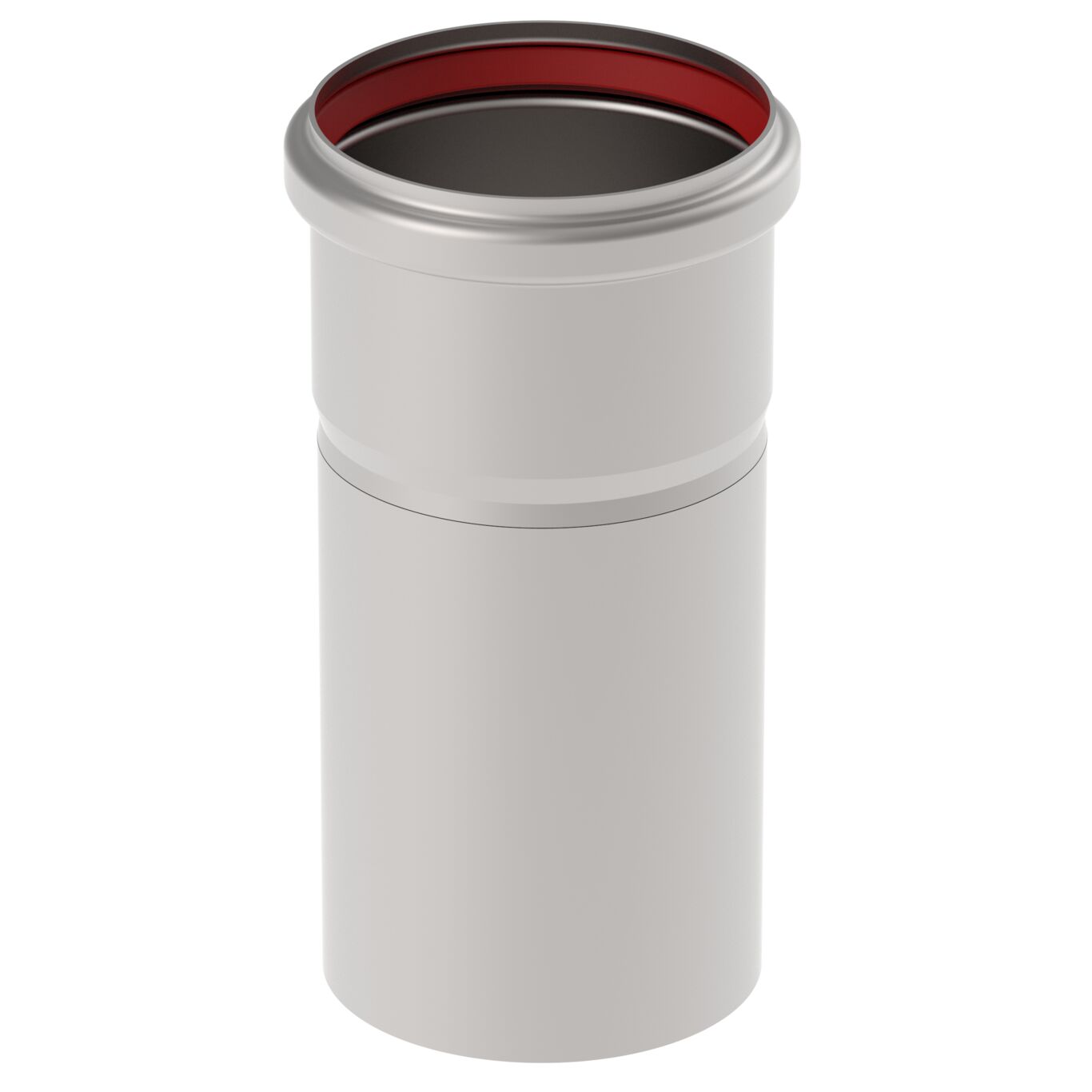

PENETRATION WITH SOCKET
-Welding transition: Ø76.1mm
-With SI sealing
-Diameter: Ø75mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 160 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Weight (kg) | 1,02 |
Weight (lbs) | 2,25 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
HACCP Food Safety Programme - Europe
DNV - MEDB000016W, Rev7, Penetrations with SI sealing Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe
