PENETRATION WITH SOCKET - (875.050.040FS)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 875.050.040FS
EAN no.: 5705499139792

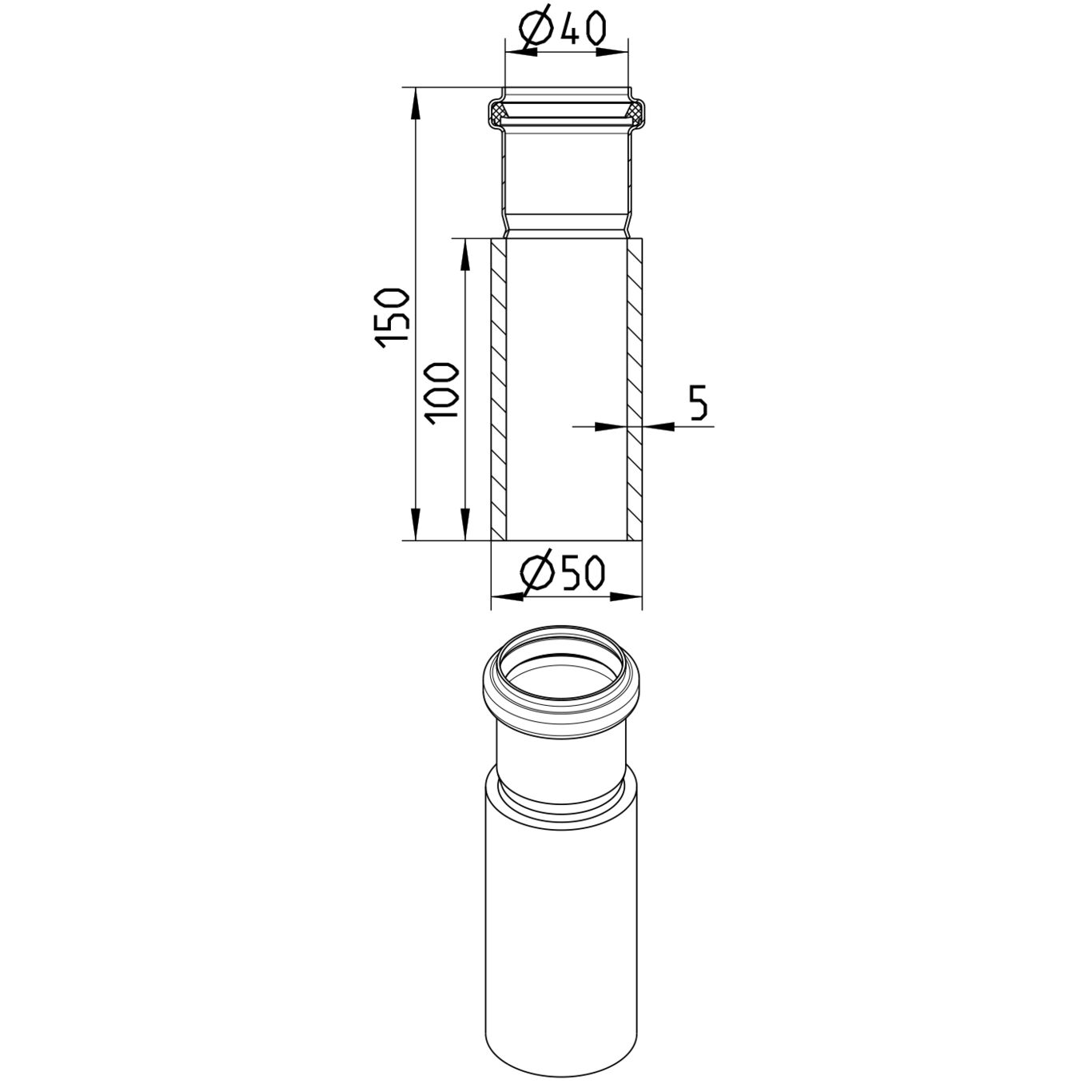

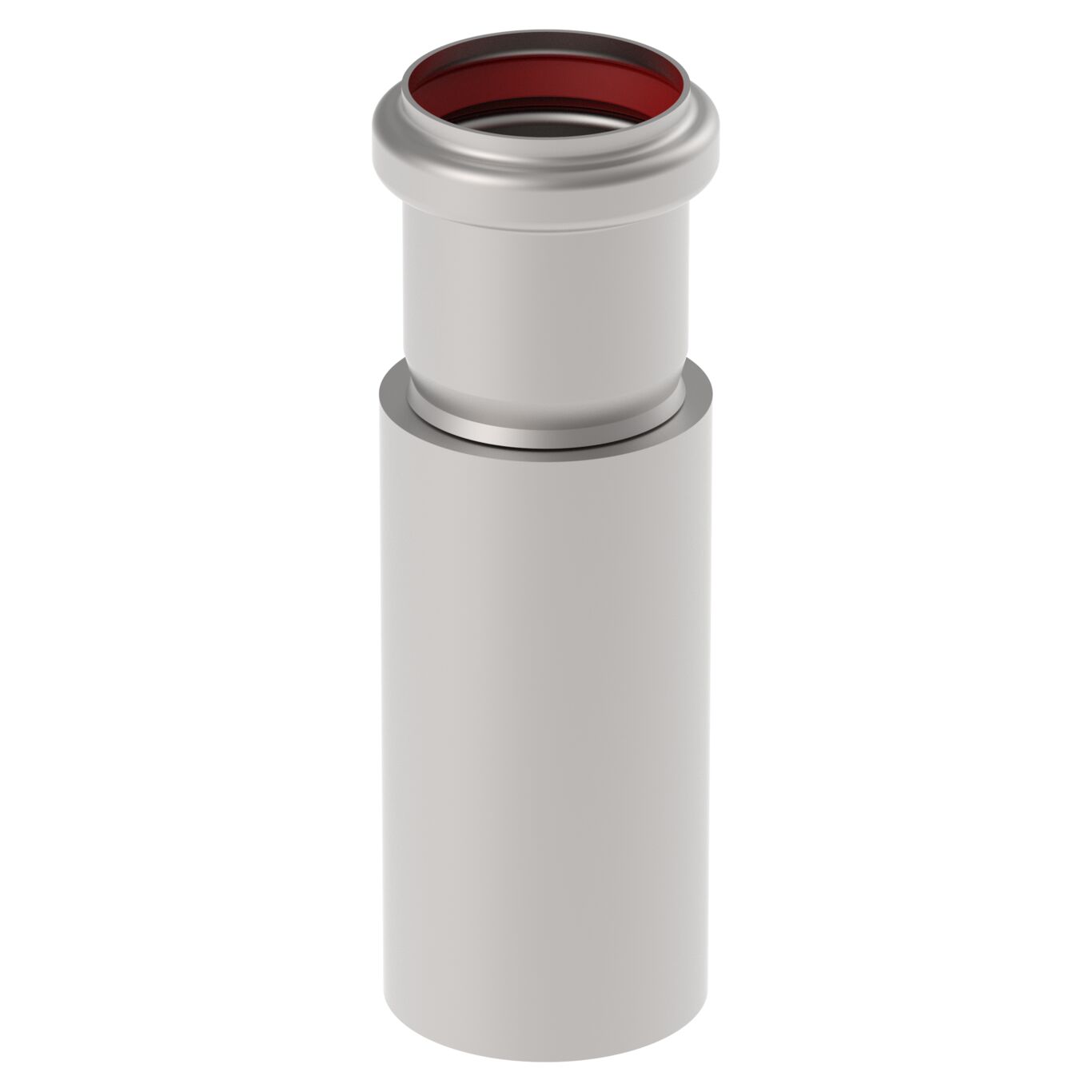

PENETRATION WITH SOCKET
-Welding transition: Ø50mm
-With SI sealing
-Diameter: Ø40mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 150 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,62 |
| Weight (lbs) | 1,37 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
Declaration of Conformity Welded penetrations
DNV - MERB0001N3Y, Rev0
TÜRK LOYDU - 25041616077231247
BLÜCHER® EuroPipe EPD Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA
