PENETRATION WITH SLEEVE - (866.025.160.10F)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.025.160.10F
EAN no.: 5705499411164
NRF no.: 2172395

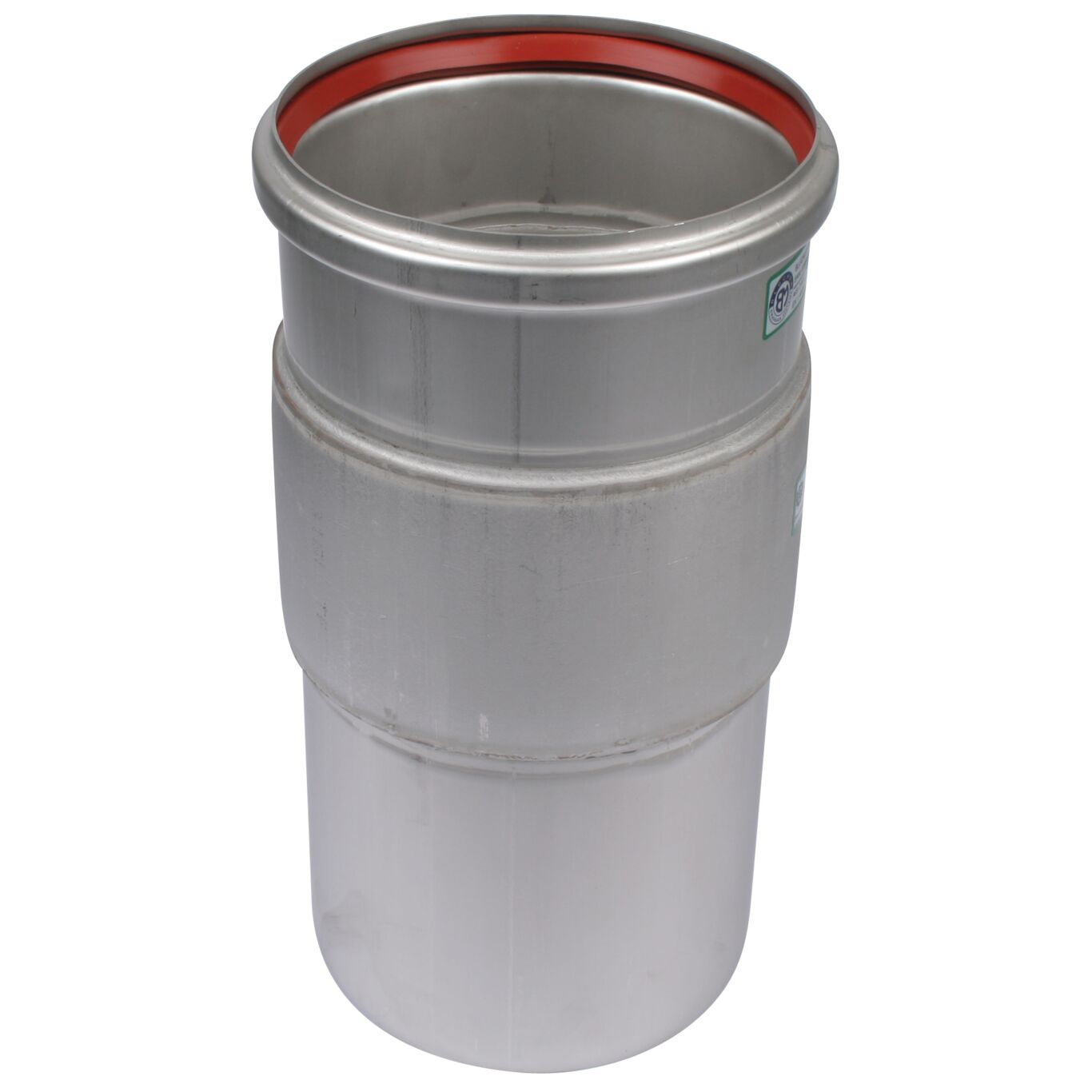

PENETRATION WITH SLEEVE
-Diameter: Ø160mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI304/EN1.4301

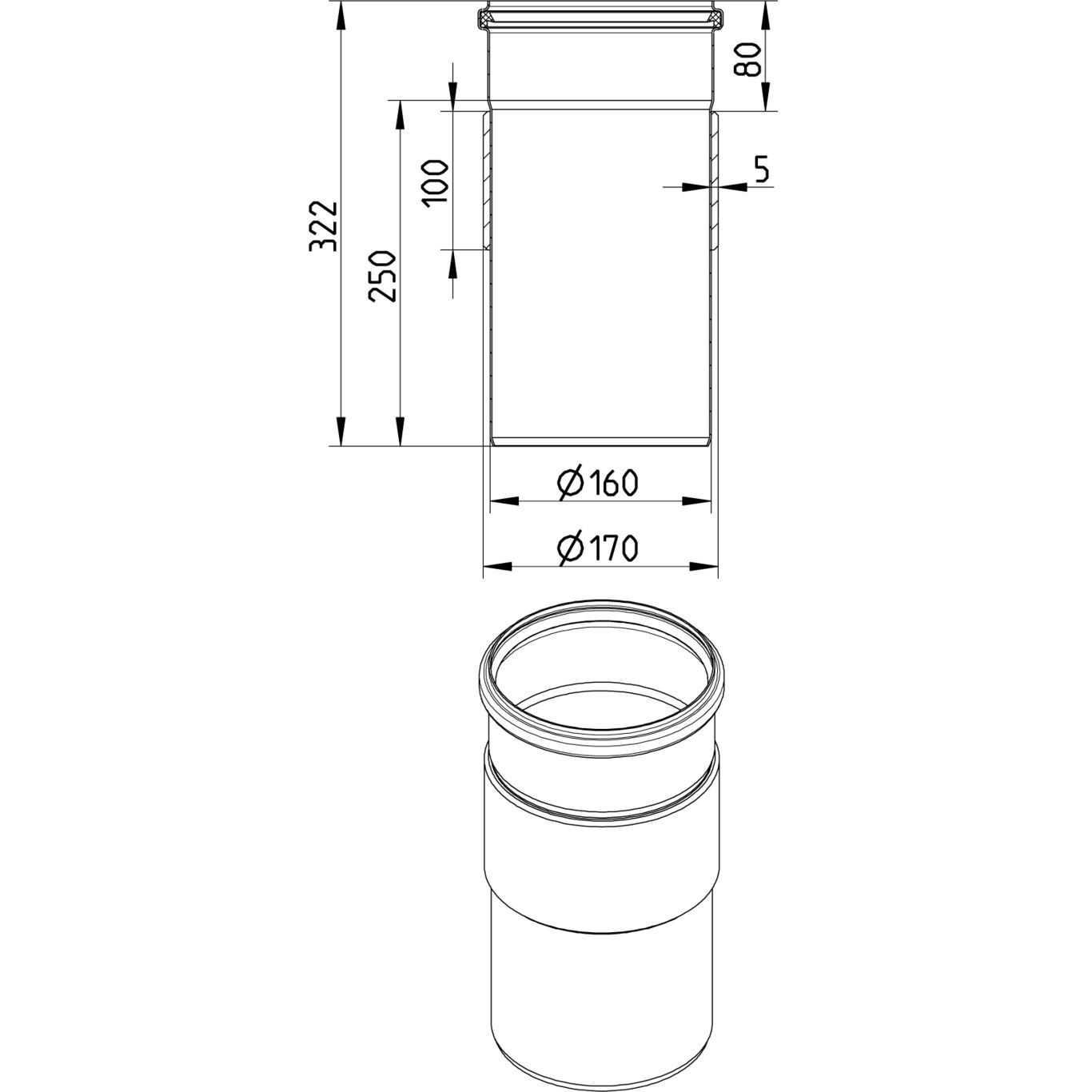

| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 250 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 3,80 |
| Weight (lbs) | 8,38 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
BLÜCHER® EuroPipe EPD
DNV - MERB0001N3Y, Rev0
TÜRK LOYDU - 25041616077231247
HACCP Food Safety Programme - Australasia
