PENETRATION WITH SLEEVE - (866.025.125.10FS)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.025.125.10FS
EAN no.: 5705499129397
NRF no.: 2172757

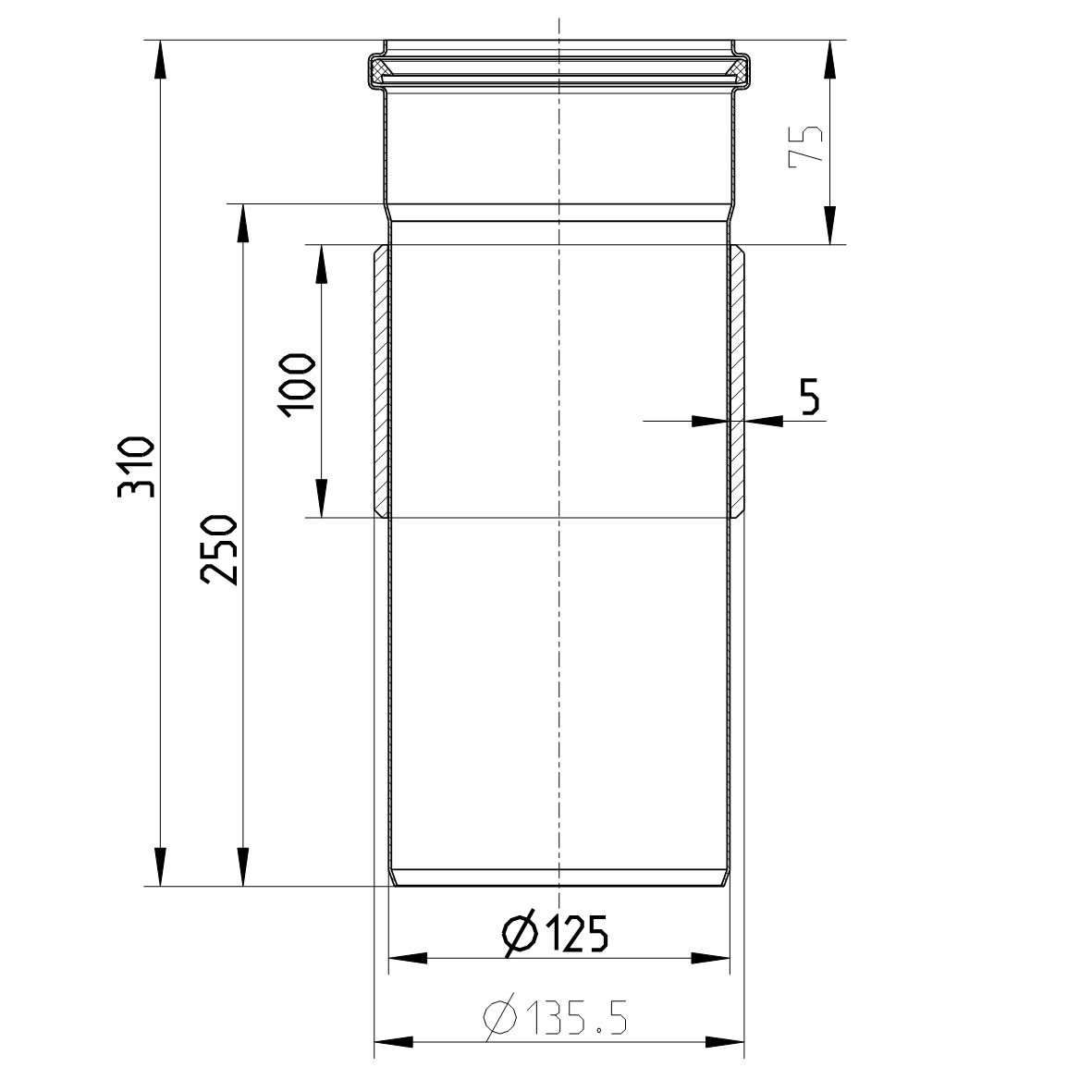

PENETRATION WITH SLEEVE
-Diameter: Ø125mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 2,64 |
| Weight (lbs) | 5,8 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
DNV - MERB0001N3Y, Rev0
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
TÜRK LOYDU - 25041616077231247
BLÜCHER® EuroPipe EPD ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC320524XG EuroPipe Achilles Certificate - 46702 MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001
