PENETRATION WITH SLEEVE - (866.025.125.10F)
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.025.125.10F
EAN no.: 5705499140729

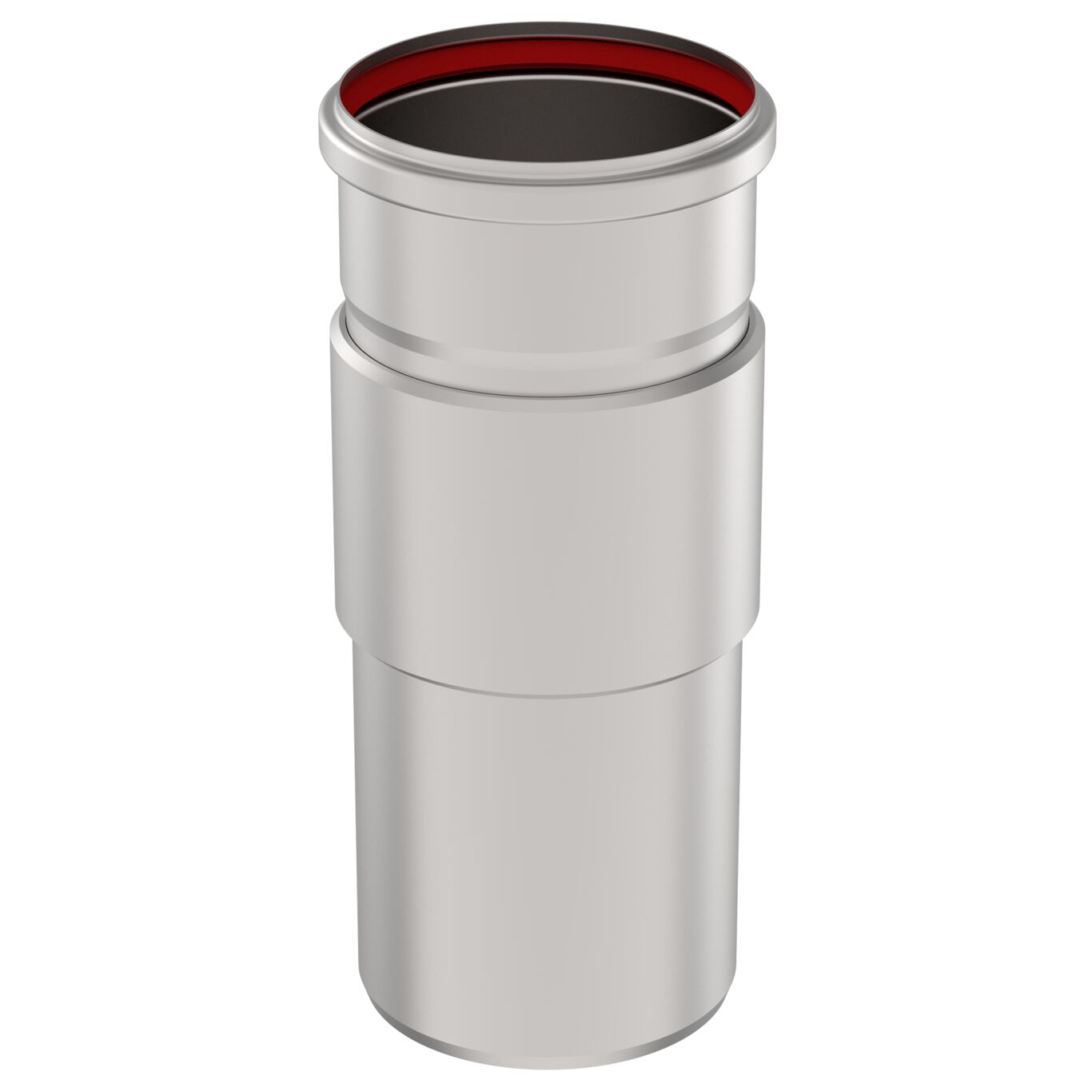

PENETRATION WITH SLEEVE
-With SI sealing
-Diameter: Ø125mm
-Deck: Steel
-Stainless steel: AISI304/EN1.4301

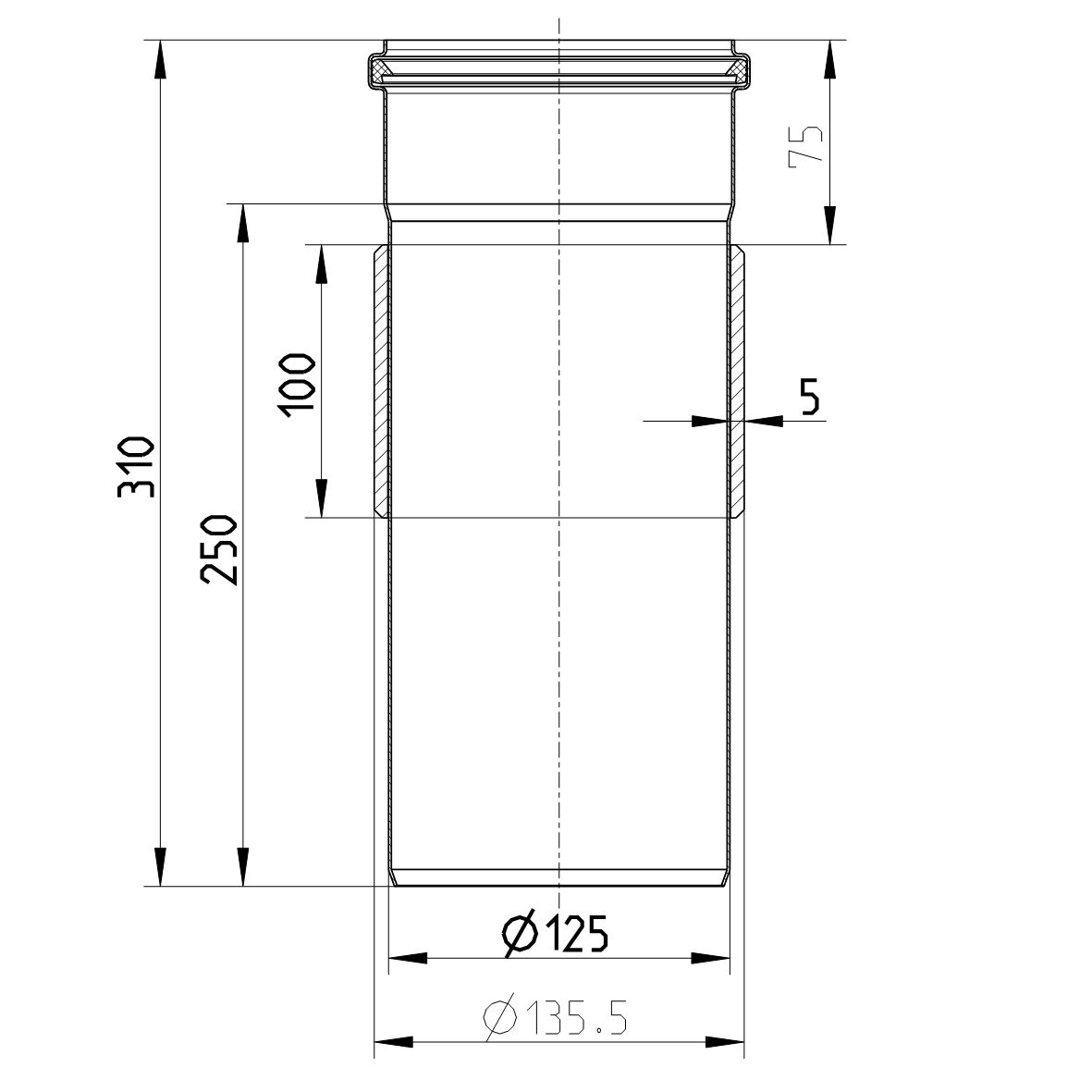

Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Length (mm) | 250 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet Diameter (mm) | 125 |
Weight (kg) | 2,64 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia DNV - MEDB000016W, Rev7, Penetrations with SI sealing HACCP Food Safety Programme - Europe KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA Bureau Veritas, 02375-I0 Pipes & Fittings ClassNK - Type866, TA21159E(N)_21FPA11DA DNV - TAP0000023-rev4, Sanitary discharge pipes RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA Achilles Certificate - 46702-22
