PENETRATION WITH SLEEVE - (866.025.110.10F)
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.025.110.10F
EAN no.: 5705499411157
NRF no.: 2172391

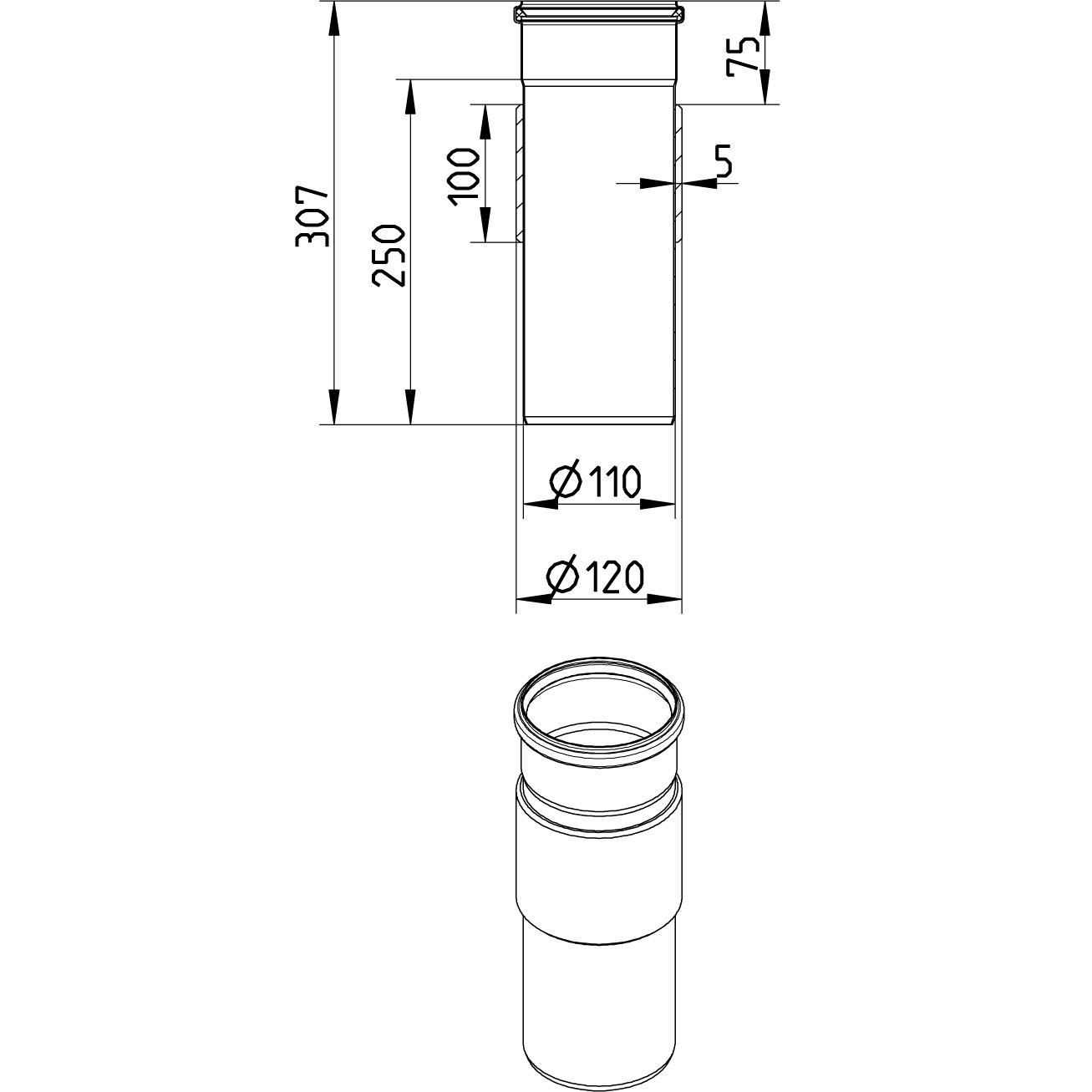

PENETRATION WITH SLEEVE
-Diameter: Ø110mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Length (mm) | 250 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 2,20 |
Weight (lbs) | 4,85 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe DNV - MEDB000016W, Rev7, Penetrations with SI sealing HACCP Food Safety Programme - Australasia Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 ABS - LD1716353-PDA ClassNK - Type866, TA21159E(N)_21FPA11DA Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev4, Sanitary discharge pipes
