PENETRATION WITH SLEEVE - (866.015.200.05FS)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.015.200.05FS
EAN no.: 5705499140767

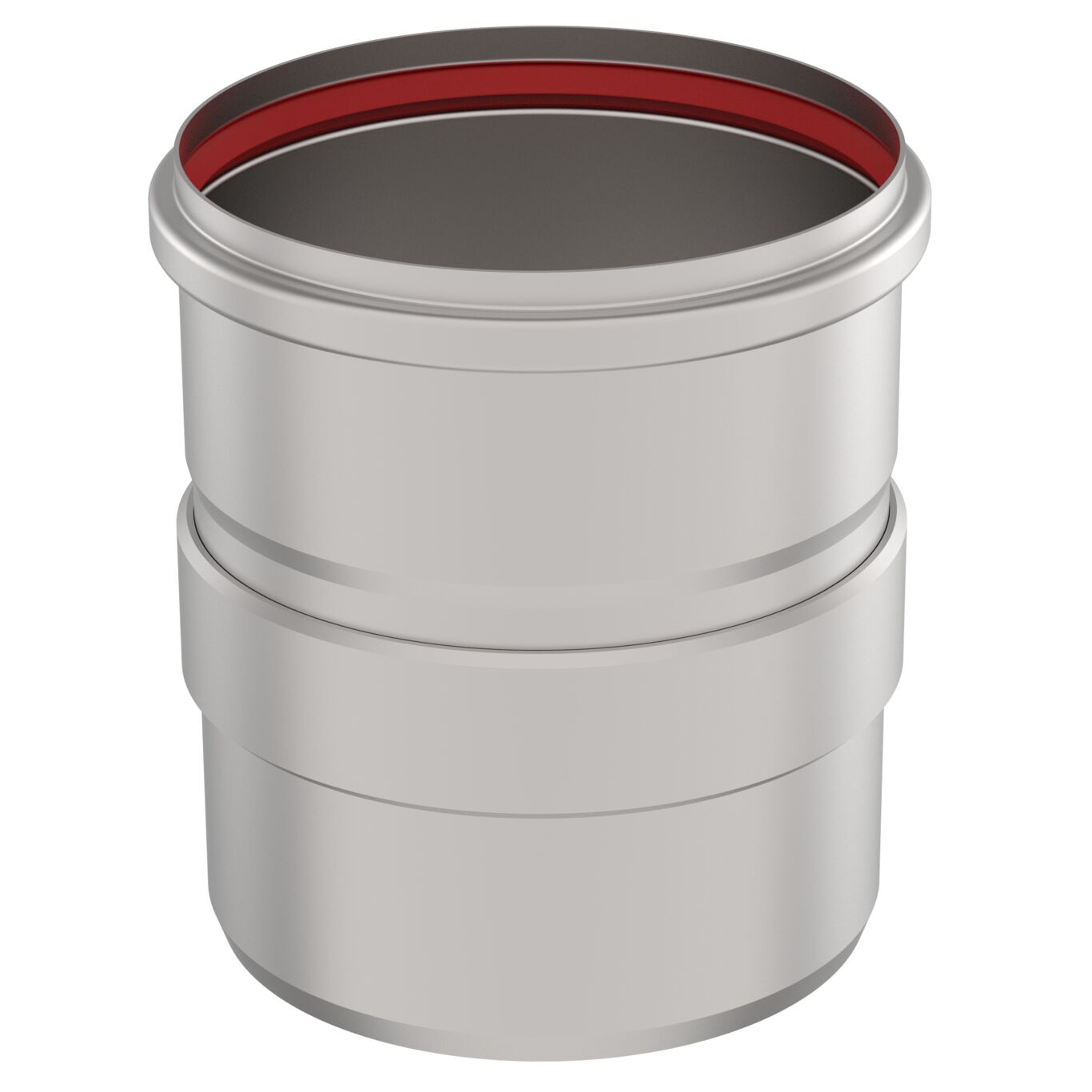

PENETRATION WITH SLEEVE
-With SI sealing
-Diameter: Ø200mm
-Deck: Steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 150 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 200 |
| Weight (kg) | 3,23 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
HACCP Food Safety Programme - Europe
BLÜCHER® EuroPipe EPD
DNV - MERB0001N3Y, Rev0
