PENETRATION WITH SLEEVE - (866.015.110.05FS)
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.015.110.05FS
EAN no.: 5705499140699
NRF no.: 2172739

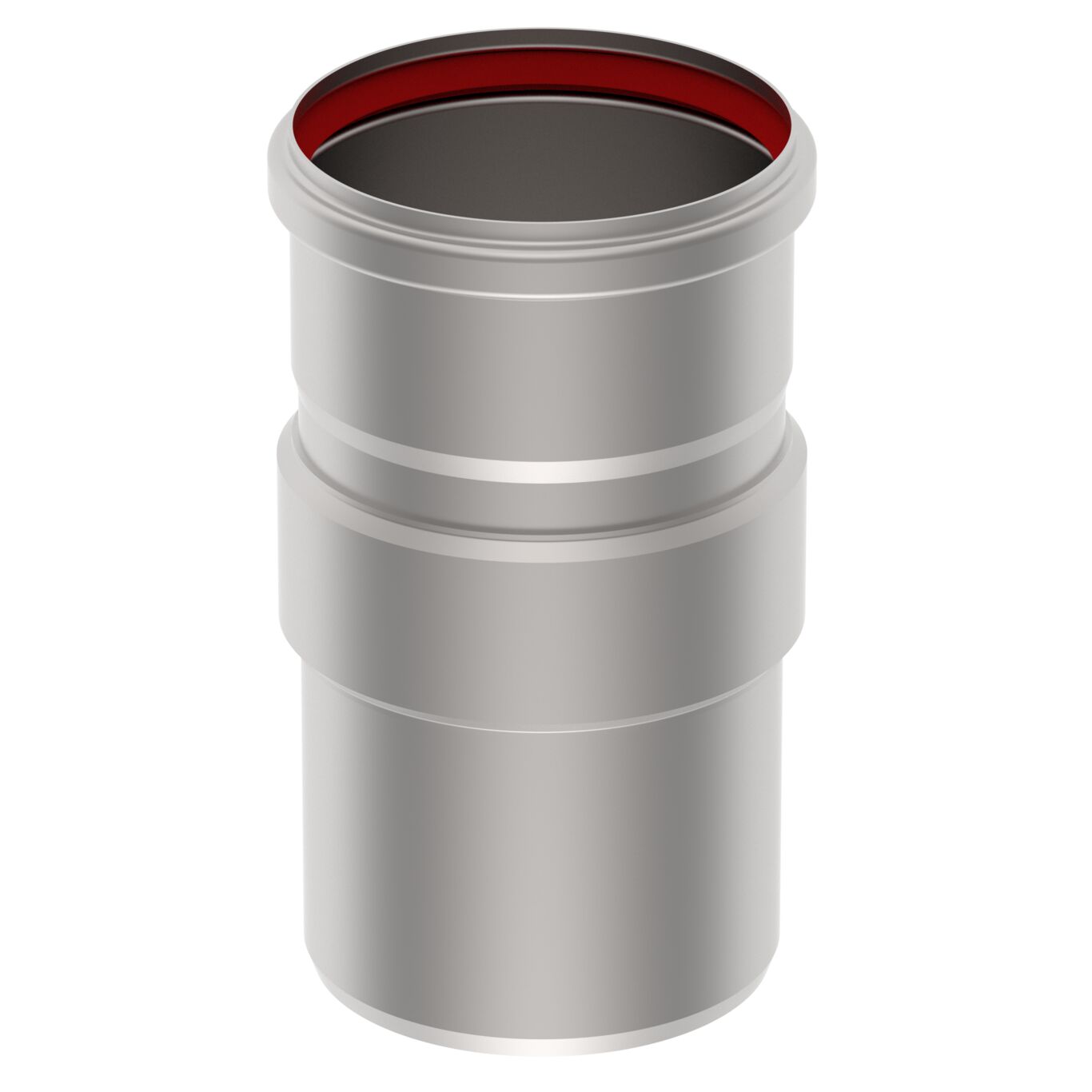

PENETRATION WITH SLEEVE
-With SI sealing
-Diameter: Ø110mm
-Deck: Steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 150 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,26 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
BLÜCHER® EuroPipe EPD
TÜRK LOYDU - 25041616077231247
DNV - MERB0001N3Y, Rev0
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
HACCP Food Safety Programme - Europe
Declaration of Conformity Welded penetrations
HACCP Food Safety Programme - Australasia KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702 ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02
