PENETRATION WITH SLEEVE - (866.015.075.05F)

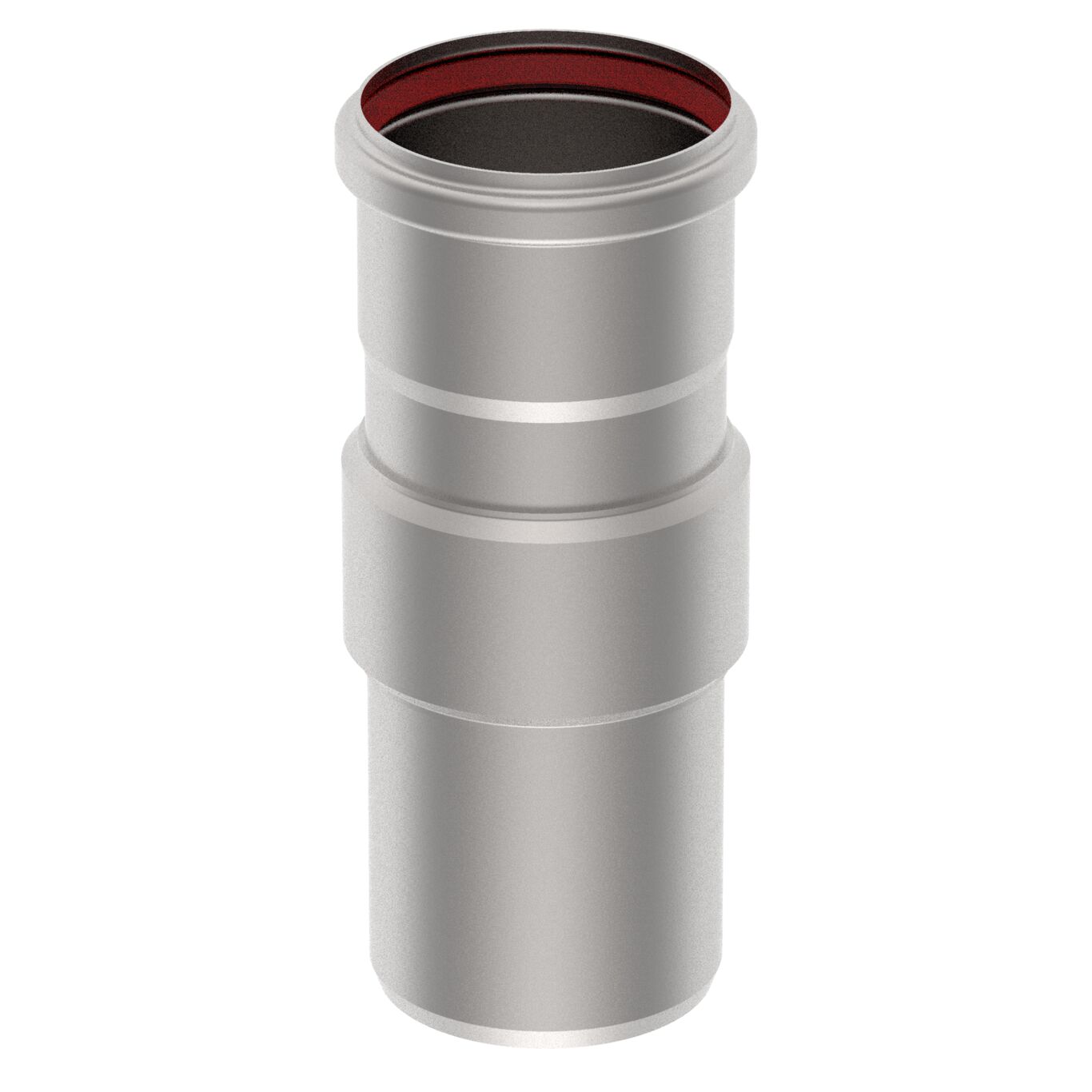

Product image of a penetration from the series Penetration-welding sleeve-steel.

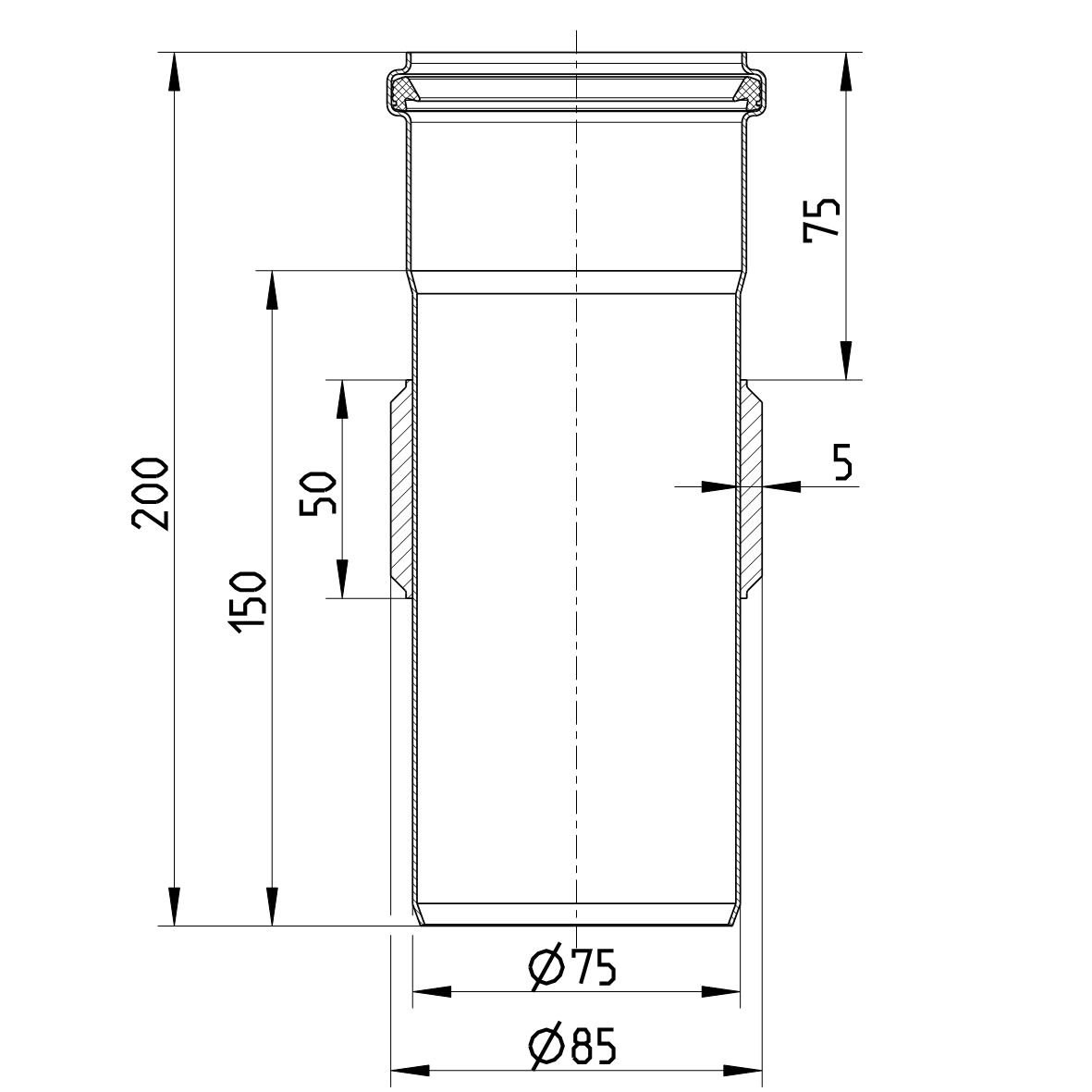

Line Drawing - Penetration-welding sleeve-steel

Part Of the Series: Penetration-welding sleeve-steel

Type no.: 866.015.075.05F

EAN no.: 5705499140668

NRF no.: 2170336

Take me to FAQ section

PENETRATION WITH SLEEVE
-With SI sealing
-Diameter: Ø75mm
-Deck: Steel
-Stainless steel: AISI304/EN1.4301

Product Specification
Deck	Steel
EC/MED (Bulkhead)	A0-A60
EC/MED (Deck)	A0-A60
Length (mm)	150
Material	AISI 304
Material (EN)	EN 1.4301
Outlet Diameter (mm)	75
Weight (kg)	0,85

Downloads
- Dimensions of socket and spigot
- Maintenance Manual - BLÜCHER® EuroPipe

Approvals and standards

For approvals and standards information, please refer to the below certificates.

HACCP Food Safety Programme - Europe DNV - MEDB000016W, Rev8, Penetrations with SI sealing DNV - MERB0001N3Y, Rev0 TÜRK LOYDU - 25041616077231247 HACCP Food Safety Programme - Australasia BLÜCHER® EuroPipe EPD Declaration of Conformity Welded penetrations Achilles Certificate - 46702 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe
