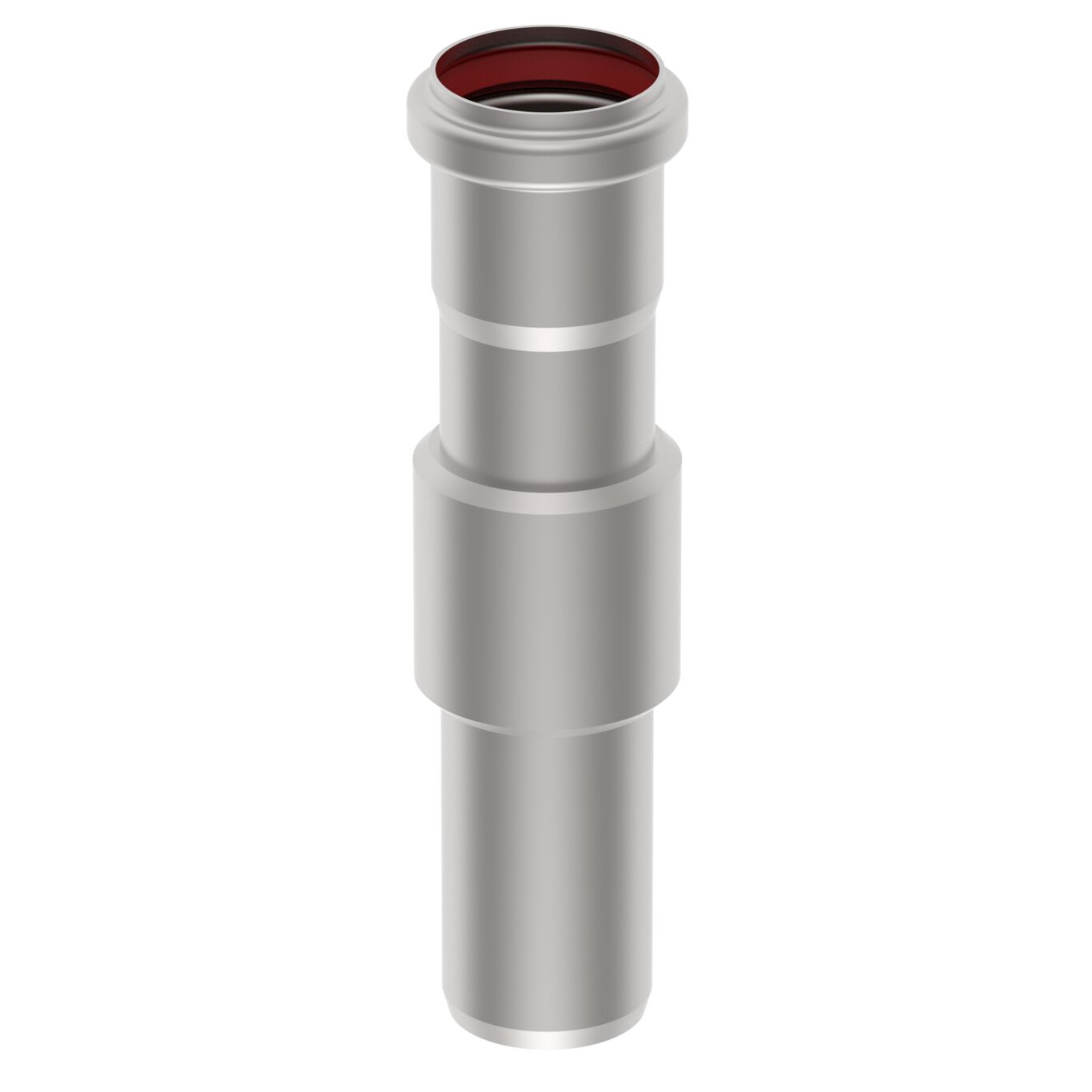

PENETRATION WITH SLEEVE - (866.015.040.05FS)
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.015.040.05FS
EAN no.: 5705499140620
PENETRATION WITH SLEEVE
-With SI sealing
-Diameter: Ø40mm
-Deck: Steel
-Stainless steel: AISI316L/EN1.4404

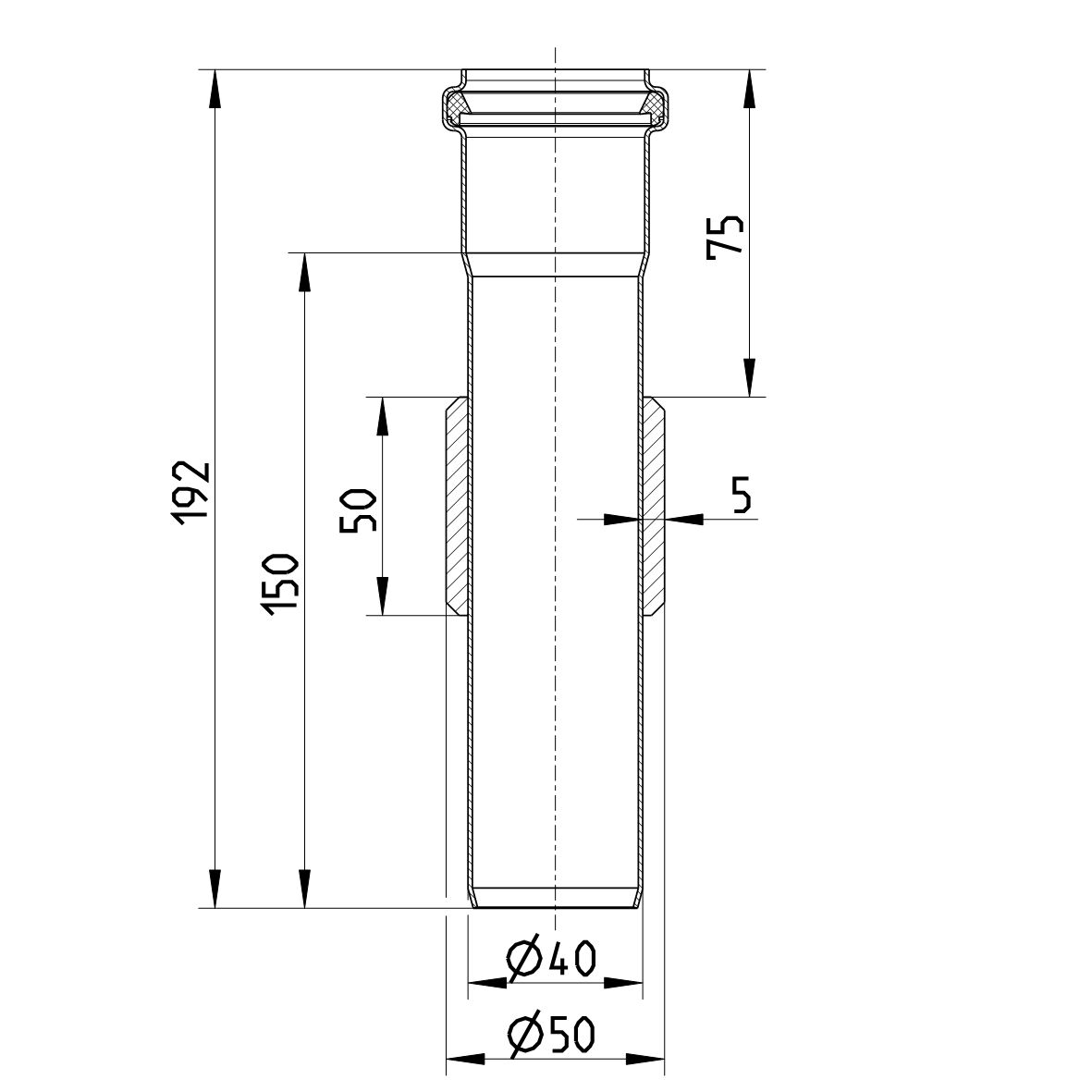

Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Length (mm) | 150 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 40 |
Weight (kg) | 0,47 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB000016W, Rev7, Penetrations with SI sealing HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia DNV - TAP0000023-rev4, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 ABS - LD1716353-PDA ClassNK - Type866, TA21159E(N)_21FPA11DA RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA
