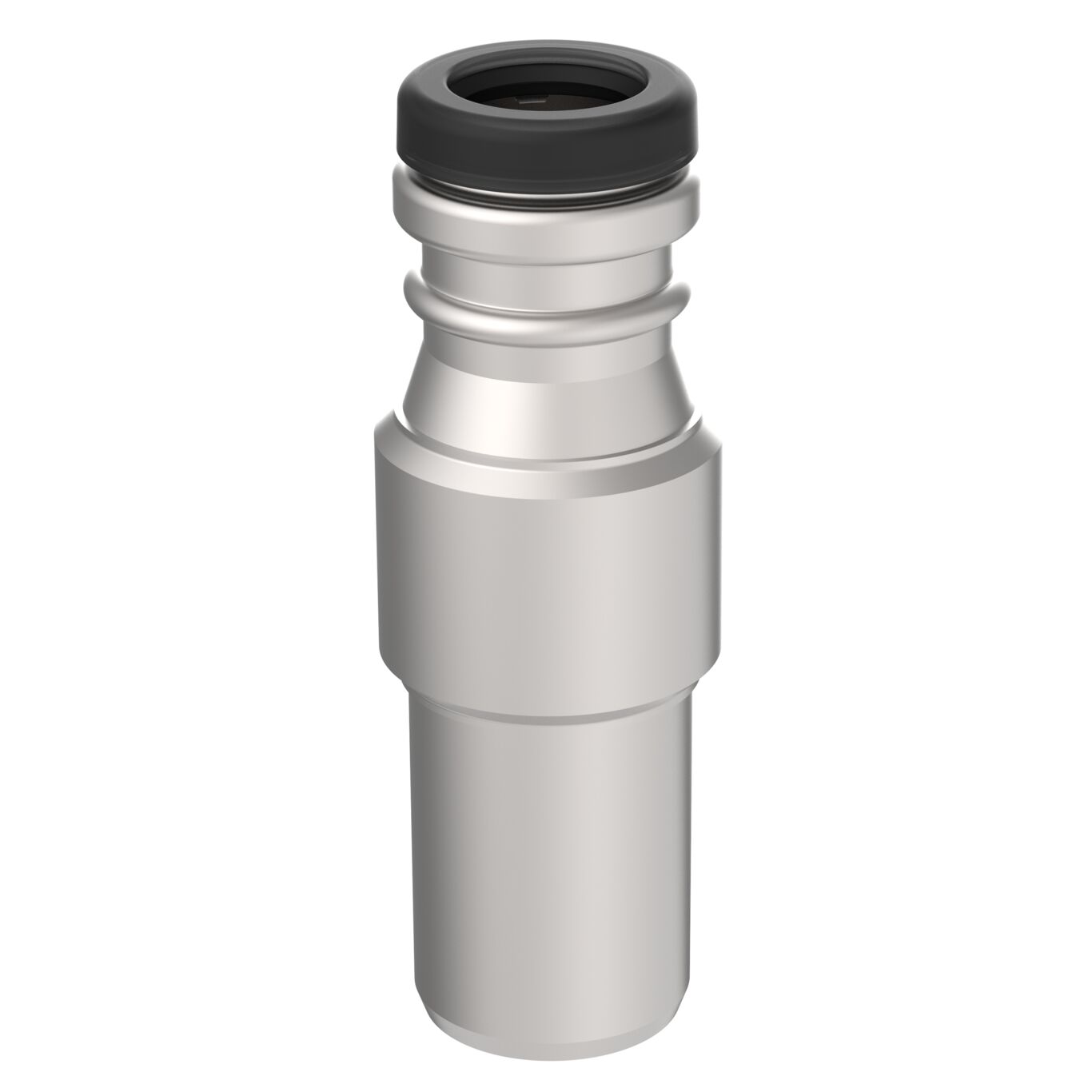

PENETRATION WITH SLEEVE - (866.032.050.05)
Part Of the Series: Penetration-welding sleeve-steel-wash basin
Type no.: 866.032.050.05
EAN no.: 5705499403985
NRF no.: 2170328
PENETRATION WITH SLEEVE

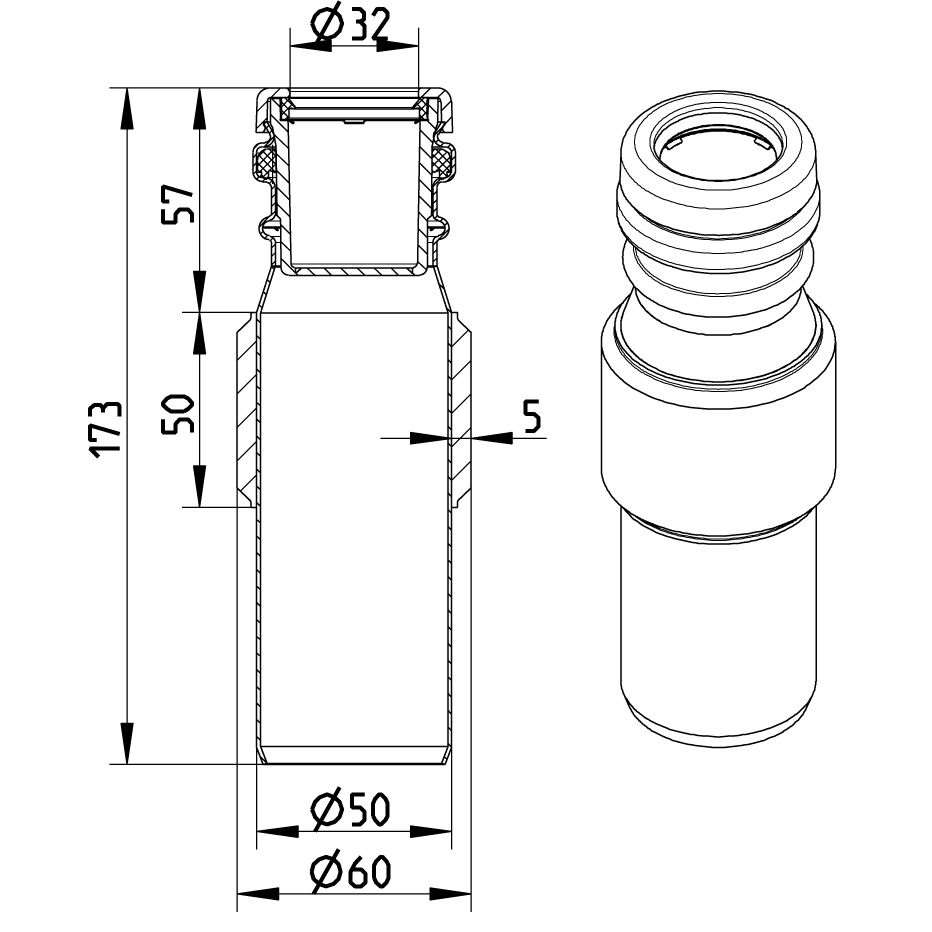

-Diameter: Ø32/50mm
-For wash basin
-Deck: steel
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Length (mm) | 128 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 173 |
Outlet dia. (Inch) | 1¼ |
Outlet Diameter (mm) | 32 |
Weight (kg) | 0,60 |
Weight (lbs) | 1,32 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev4, Sanitary discharge pipes ABS - LD1716353-PDA Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 ClassNK - Type866.032, TA21162E(N)_21FPA14DA Lloyds Register LR22419510TA
