PENETRATION WITH FLANGE - (868.125.110FS)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.125.110FS
EAN no.: 5705499411232
NRF no.: 2172786

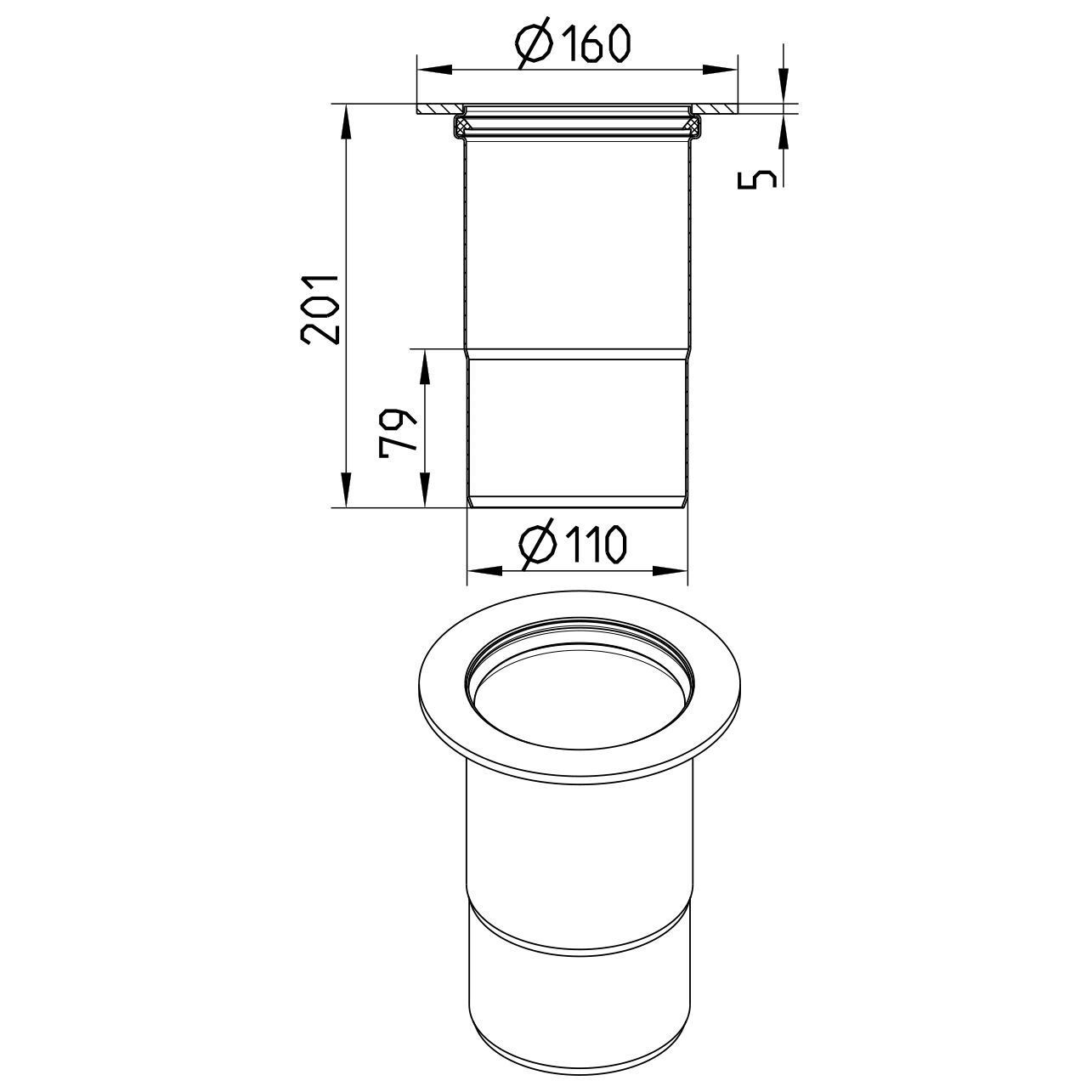

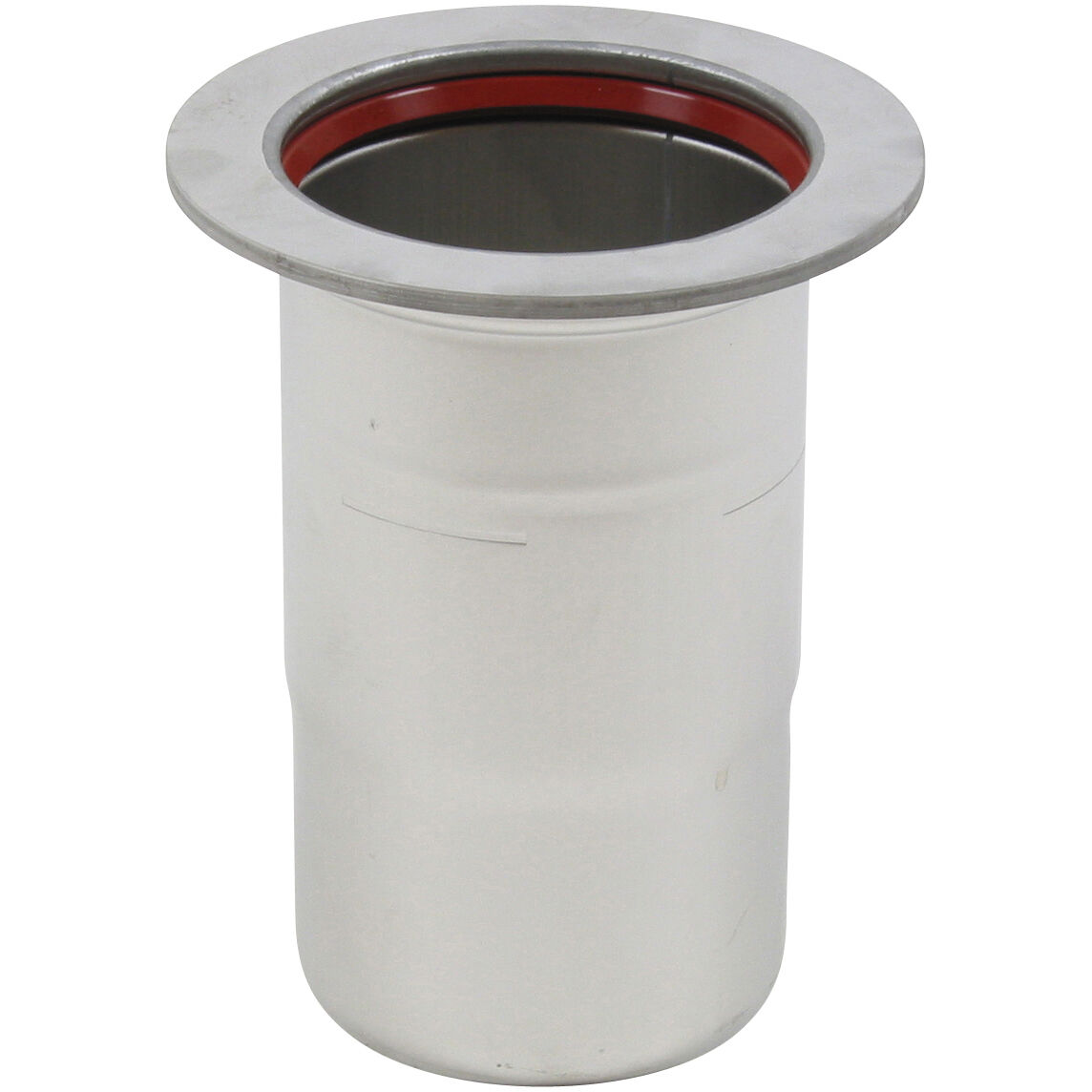

PENETRATION WITH FLANGE
-Diameter: Ø110mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 79 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 201 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,99 |
| Weight (lbs) | 2,2 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB000016W, Rev7, Penetrations with SI sealing
HACCP Food Safety Programme - Europe
