PENETRATION WITH FLANGE - (868.115.075F)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.115.075F
EAN no.: 5705499411201
NRF no.: 2172414
PENETRATION WITH FLANGE

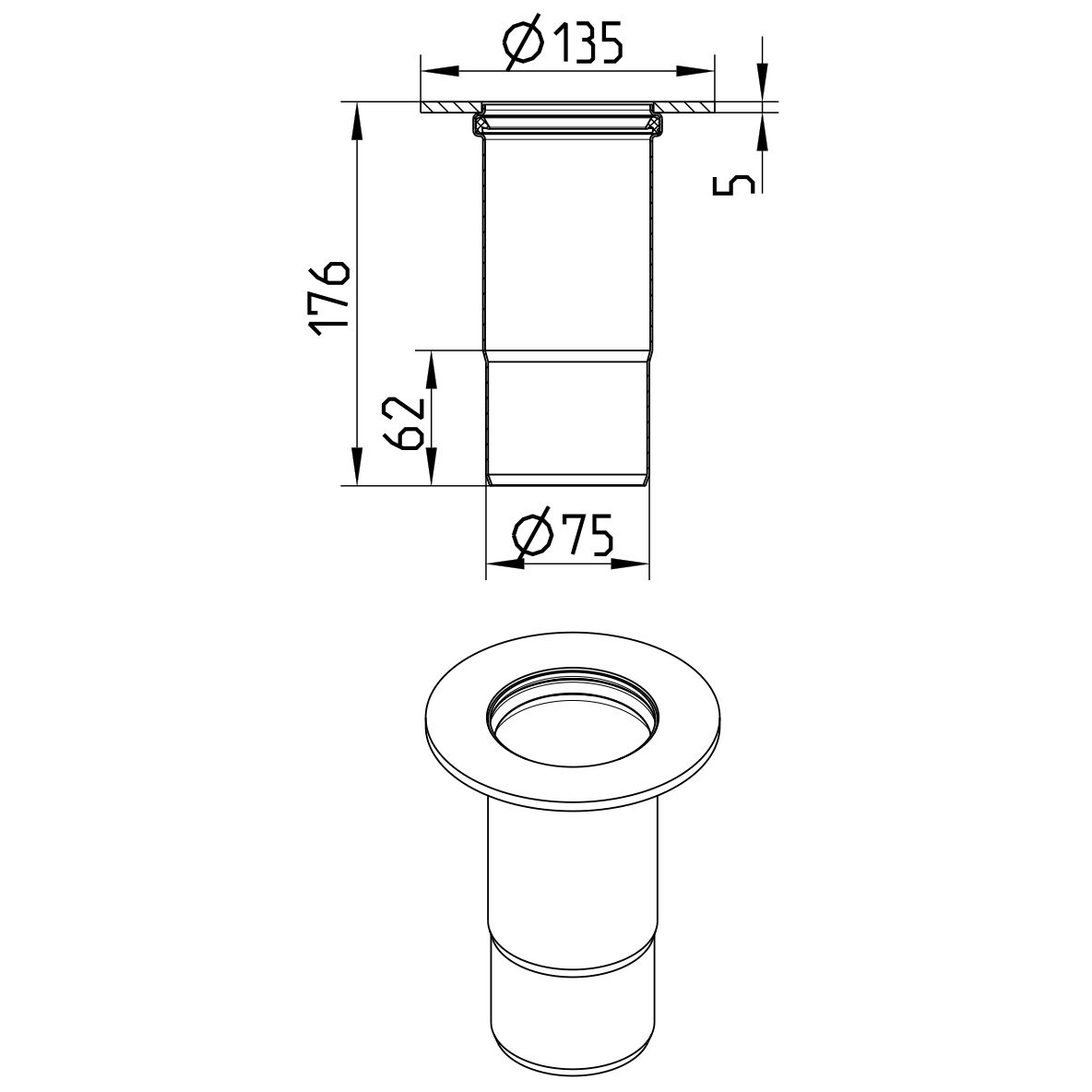

-Diameter: Ø75mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 62 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 176 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,70 |
| Weight (lbs) | 1,54 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
BLÜCHER® EuroPipe EPD
HACCP Food Safety Programme - Australasia
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
DNV - MERB0001N3Y, Rev0
TÜRK LOYDU - 25041616077231247 KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA Achilles Certificate - 46702 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC320524XG EuroPipe
