PENETRATION WITH FLANGE - (868.100.040F)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.100.040F
EAN no.: 5705499140804

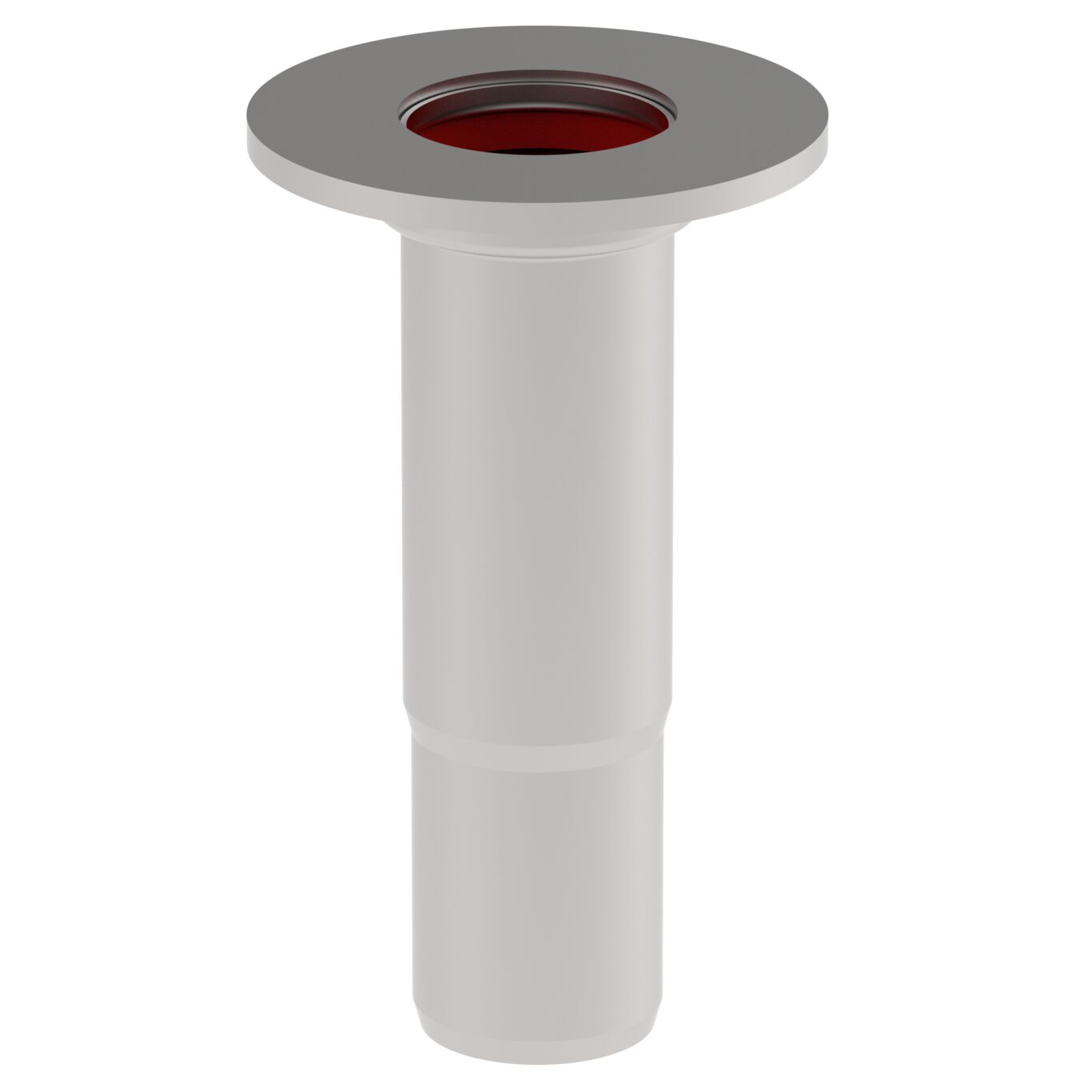

PENETRATION WITH FLANGE
-With SI sealing
-Diameter: Ø40mm
-Deck: Steel
-Stainless steel: AISI304/EN1.4301

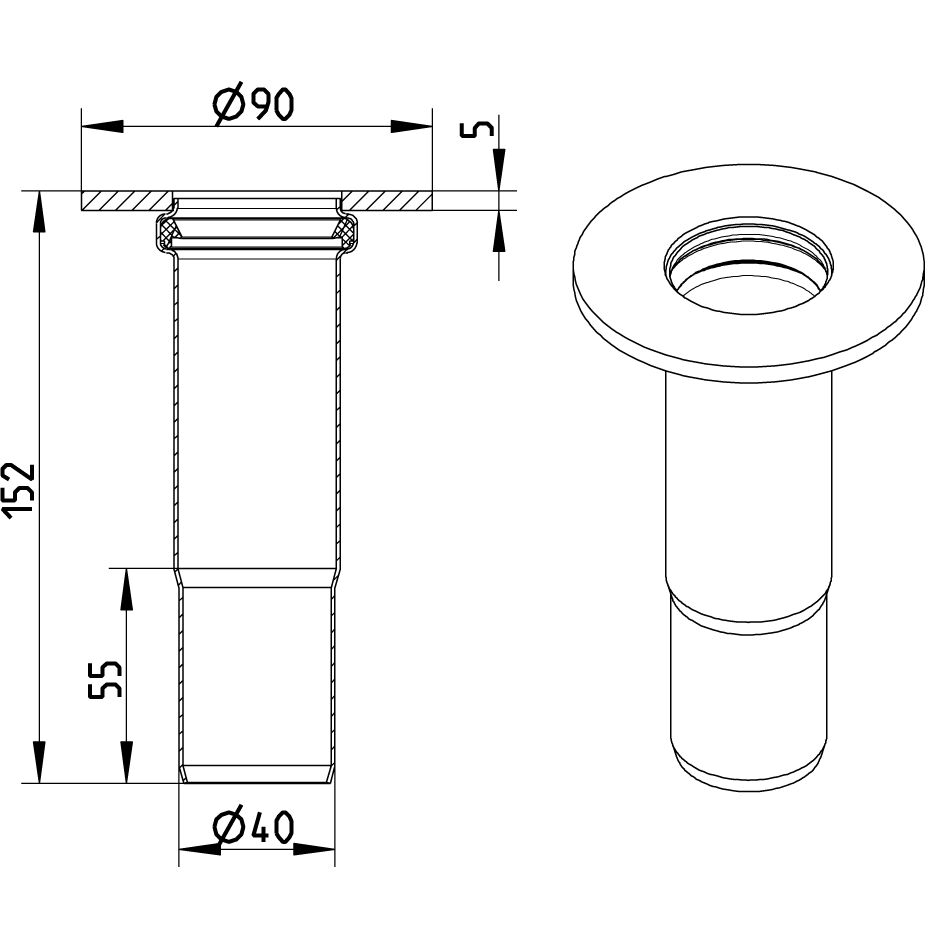

| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| GWP total Co2 eq. for A1-A3 per product | 1,26kg |
| Length (mm) | 55 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 152 |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,36 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
HACCP Food Safety Programme - Australasia
DNV - MERB0001N3Y, Rev0
TÜRK LOYDU - 25041616077231247
BLÜCHER® EuroPipe EPD ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA_02 Achilles Certificate - 46702 ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes
