PENETRATION WITH FLANGE - (868.000.200F)
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.000.200F
EAN no.: 5705499140934

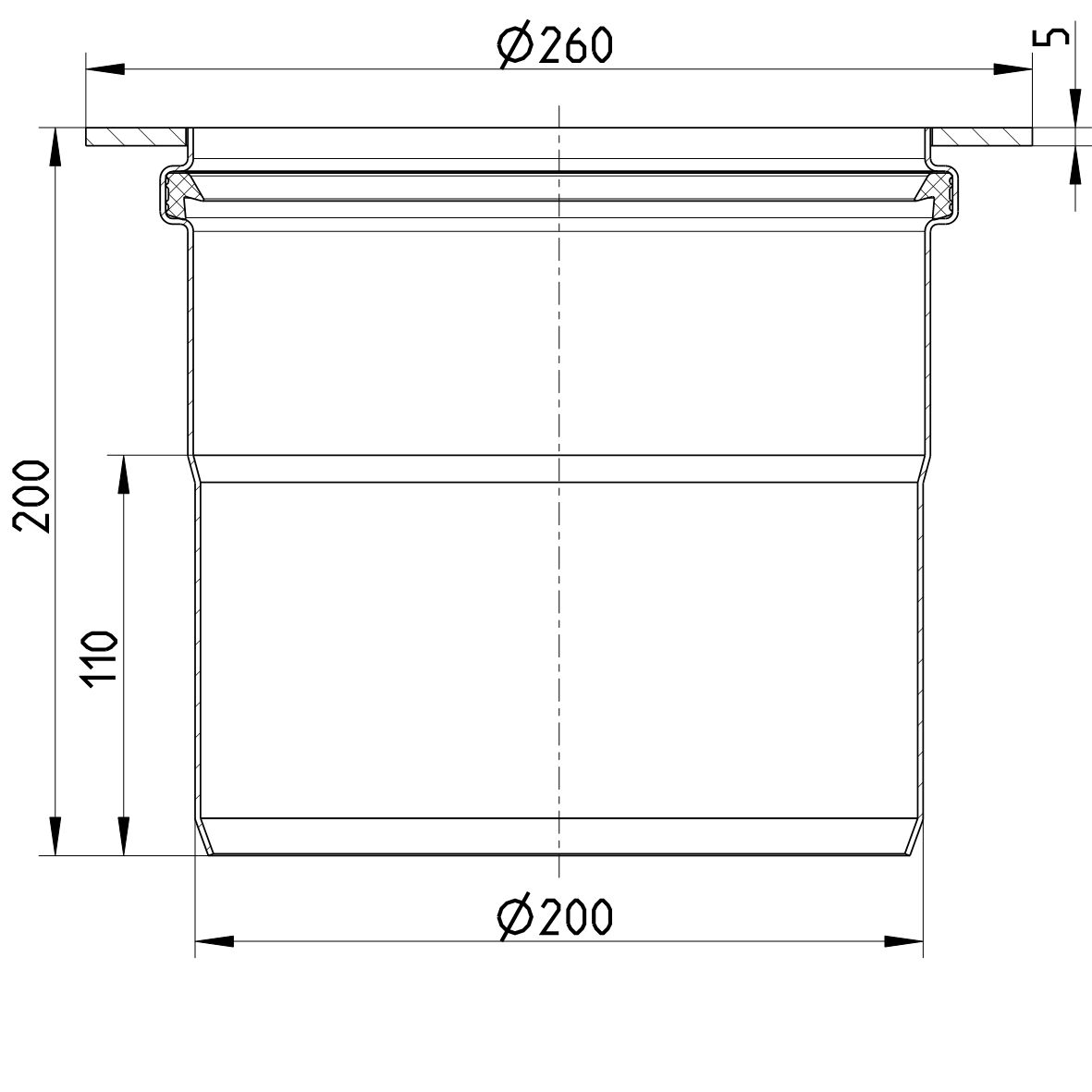

PENETRATION WITH FLANGE
-With SI sealing
-Diameter: Ø200mm
-Deck: Steel
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Length (mm) | 110 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 200 |
Outlet Diameter (mm) | 200 |
Weight (kg) | 2,45 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe DNV - MEDB000016W, Rev7, Penetrations with SI sealing HACCP Food Safety Programme - Australasia MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev4, Sanitary discharge pipes Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 ClassNK - Type868, TA21160E(N)_21FPA12DA Lloyds Register LR22419510TA ABS - LD1716353-PDA
