PENETRATION WITH FLANGE - (868.000.160F)
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.000.160F
EAN no.: 5705499140903

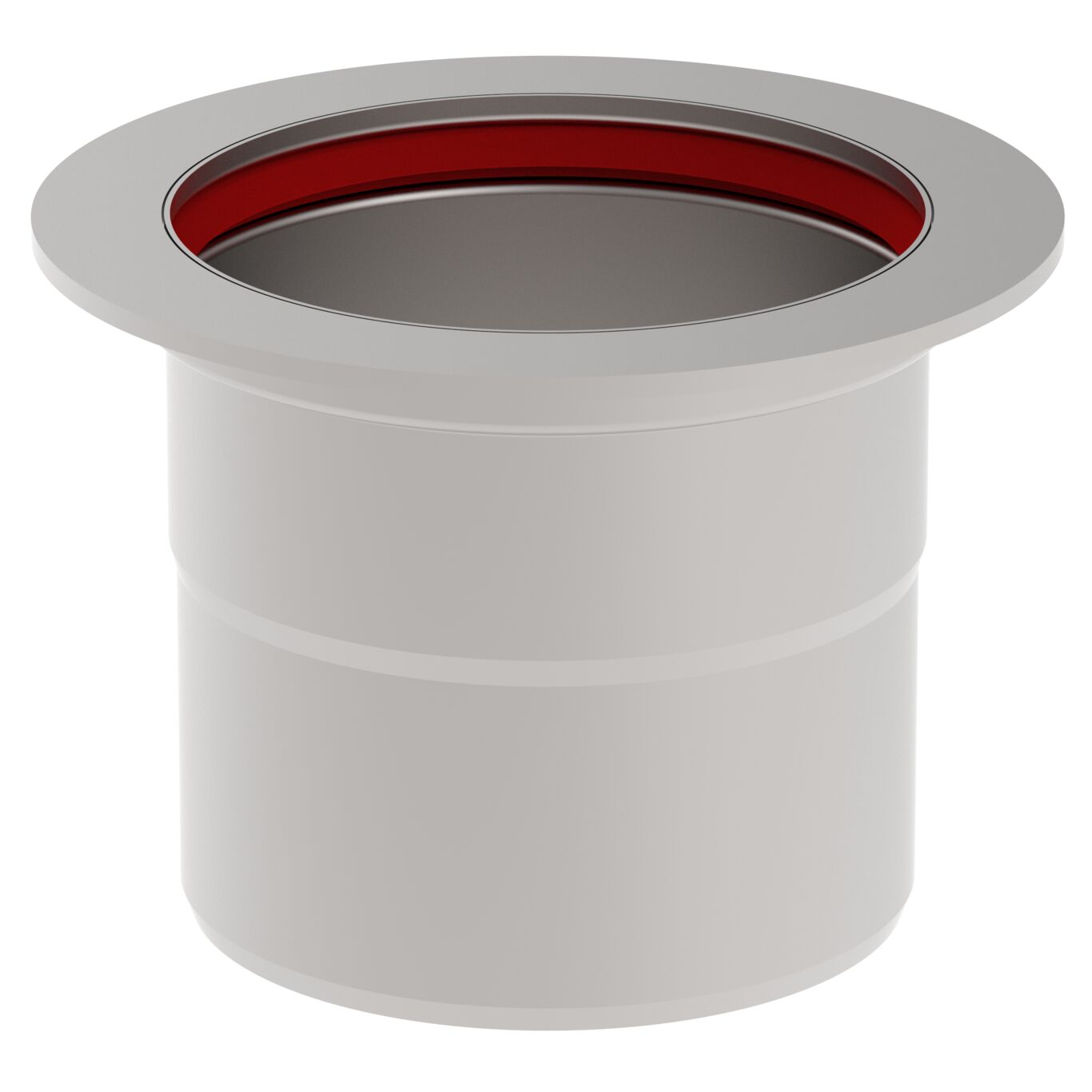

PENETRATION WITH FLANGE
-With SI sealing
-Diameter: Ø160mm
-Deck: Steel
-Stainless steel: AISI304/EN1.4301

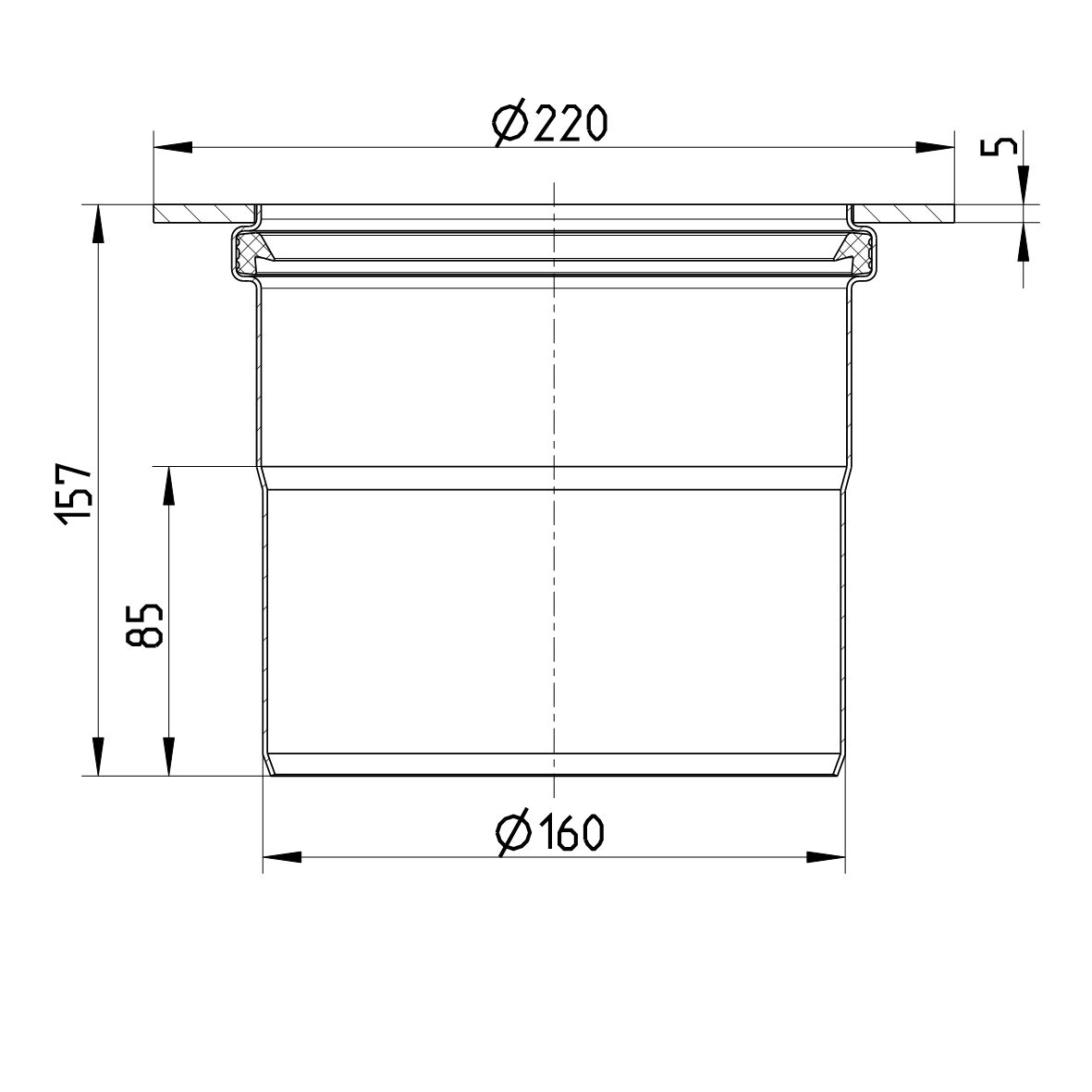

Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Length (mm) | 85 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 157 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 1,55 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB000016W, Rev7, Penetrations with SI sealing HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev4, Sanitary discharge pipes Achilles Certificate - 46702-22 ClassNK - Type868, TA21160E(N)_21FPA12DA ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings
