PENETRATION WITH FLANGE - (868.000.125FS)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.000.125FS
EAN no.: 5705499140880

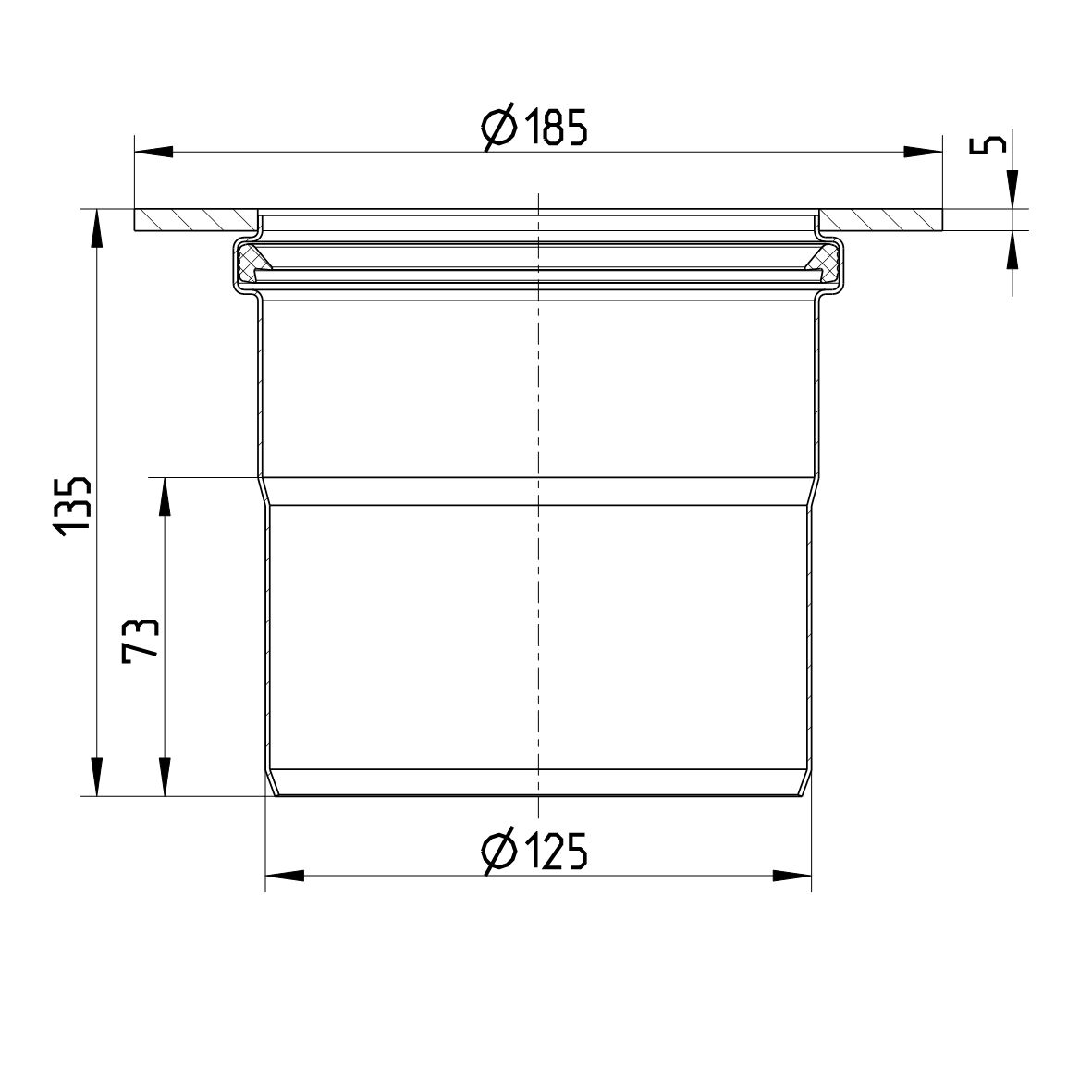

PENETRATION WITH FLANGE
-With SI sealing
-Diameter: Ø125mm
-Deck: Steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| GWP total Co2 eq. for A1-A3 per product | 3.49 |
| Length (mm) | 73 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 135 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 1,02 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
BLÜCHER® EuroPipe EPD
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
DNV - MERB0001N3Y, Rev0
HACCP Food Safety Programme - Australasia
TÜRK LOYDU - 25041616077231247 Achilles Certificate - 46702 Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM
