PENETRATION WITH FLANGE - (868.910.075 S)

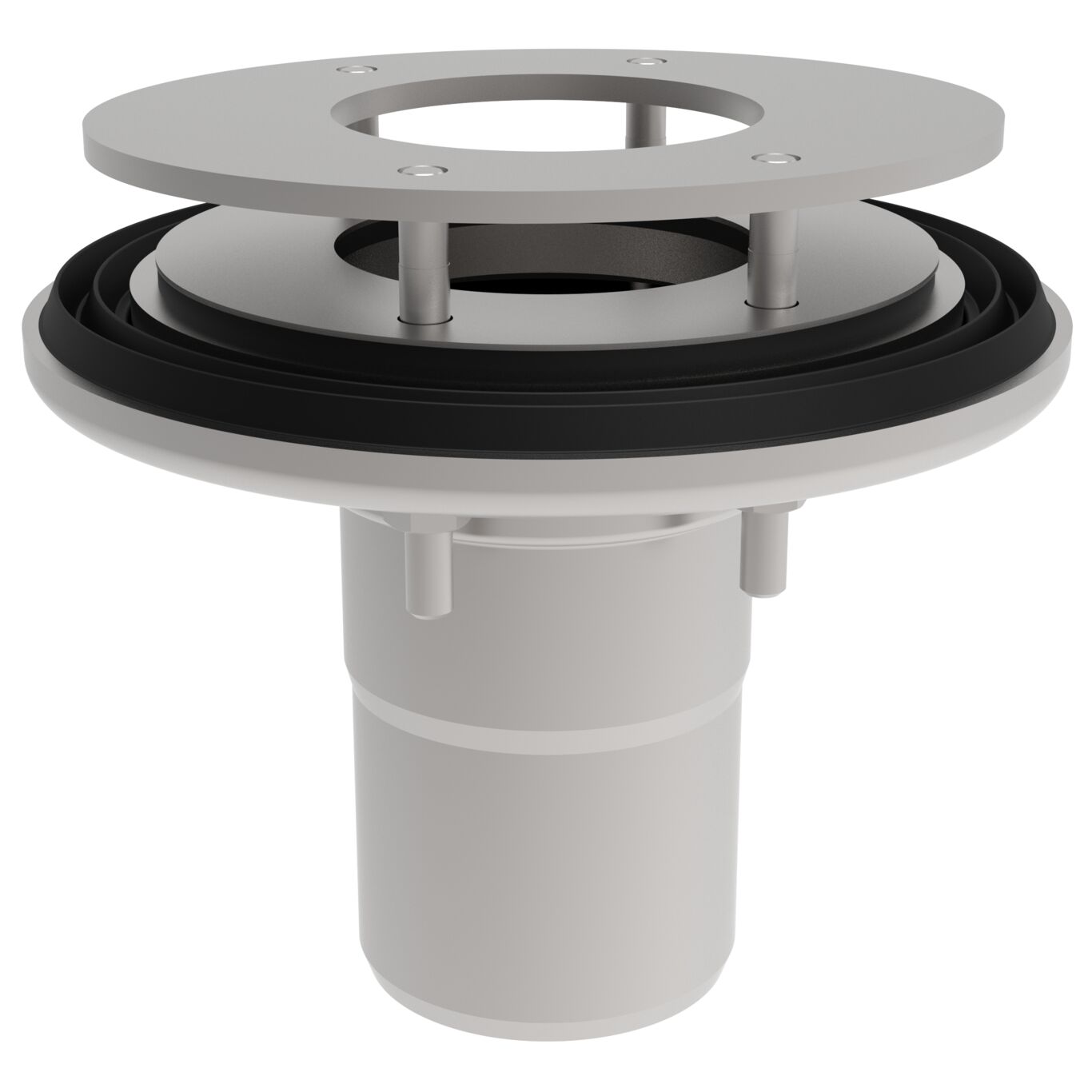

Product image of a penetration from the series Penetration-no welding.

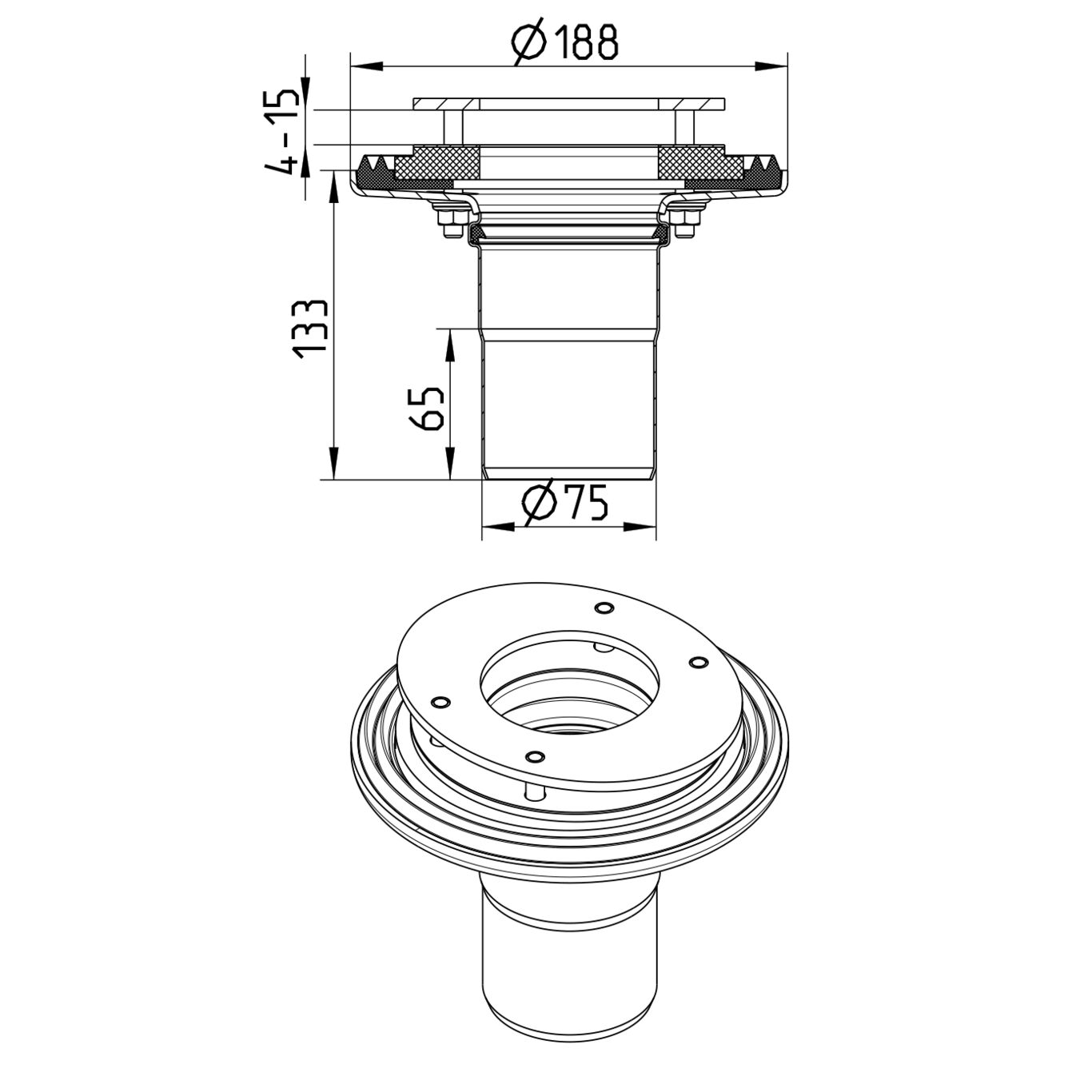

Line drawing of a penetration from the series Penetration-no welding.

Part Of the Series: Penetration-no welding

Type no.: 868.910.075 S

EAN no.: 5705499139532

Take me to FAQ section

PENETRATION WITH FLANGE
-Non-welded, with EPDM sealing
-Diameter: Ø75mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404

Product Specification
Deck	Steel
EC/MED (Deck)	A0-A60
Length (mm)	65
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet dia. (Inch)	3
Outlet Diameter (mm)	75
Weight (kg)	3,92
Weight (lbs)	8,64

Downloads

Approvals and standards

For approvals and standards information, please refer to the below certificates.

HACCP Food Safety Programme - Europe TÜRK LOYDU - 25041616077231247 HACCP Food Safety Programme - Australasia Declaration of Conformity Non-welded penetrations Declaration of Conformity Welded penetrations BLÜCHER® EuroPipe EPD DNVGL - MEDB00006YG, Plug n' Play penetrations DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe ABS - 23-2329630-PDA
