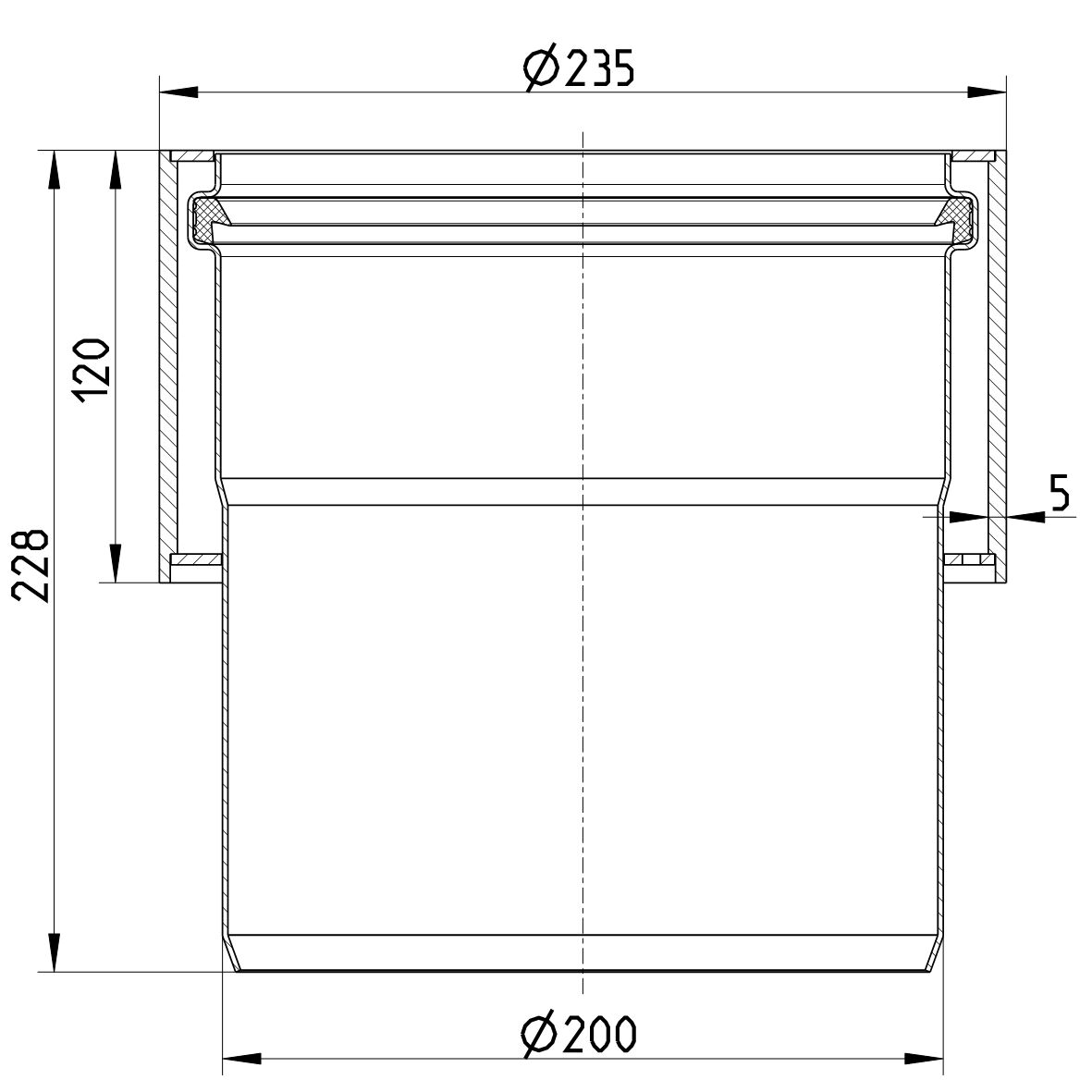

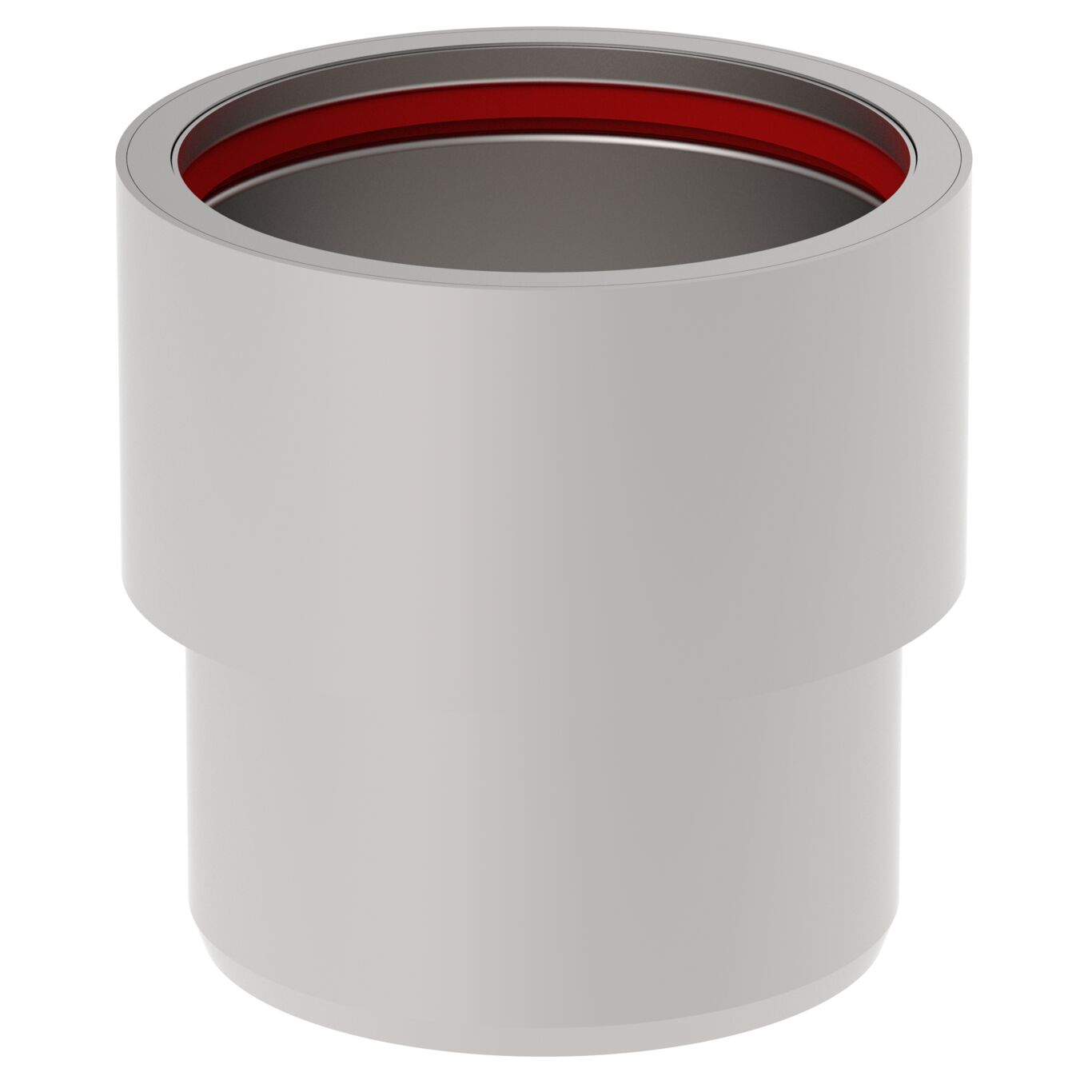

PENETRATION FOR CABIN WITH SLEEVE - (870.000.200FS)
×
![]()
Part Of the Series: Penetration-cabin-welding sleeve-steel
Type no.: 870.000.200FS
EAN no.: 5705499139747
PENETRATION FOR CABIN WITH SLEEVE
-Diameter: Ø200mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 228 |
| Outlet dia. (Inch) | 8 |
| Outlet Diameter (mm) | 200 |
| Weight (kg) | 5,57 |
| Weight (lbs) | 12,28 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
TÜRK LOYDU - 25041616077231247
HACCP Food Safety Programme - Australasia
DNV - MEDB000016W, Rev8, Penetrations with SI sealing ABS - 23-2329630-PDA ClassNK - Type870, TA21161E(N)_21FPA13DA RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes
