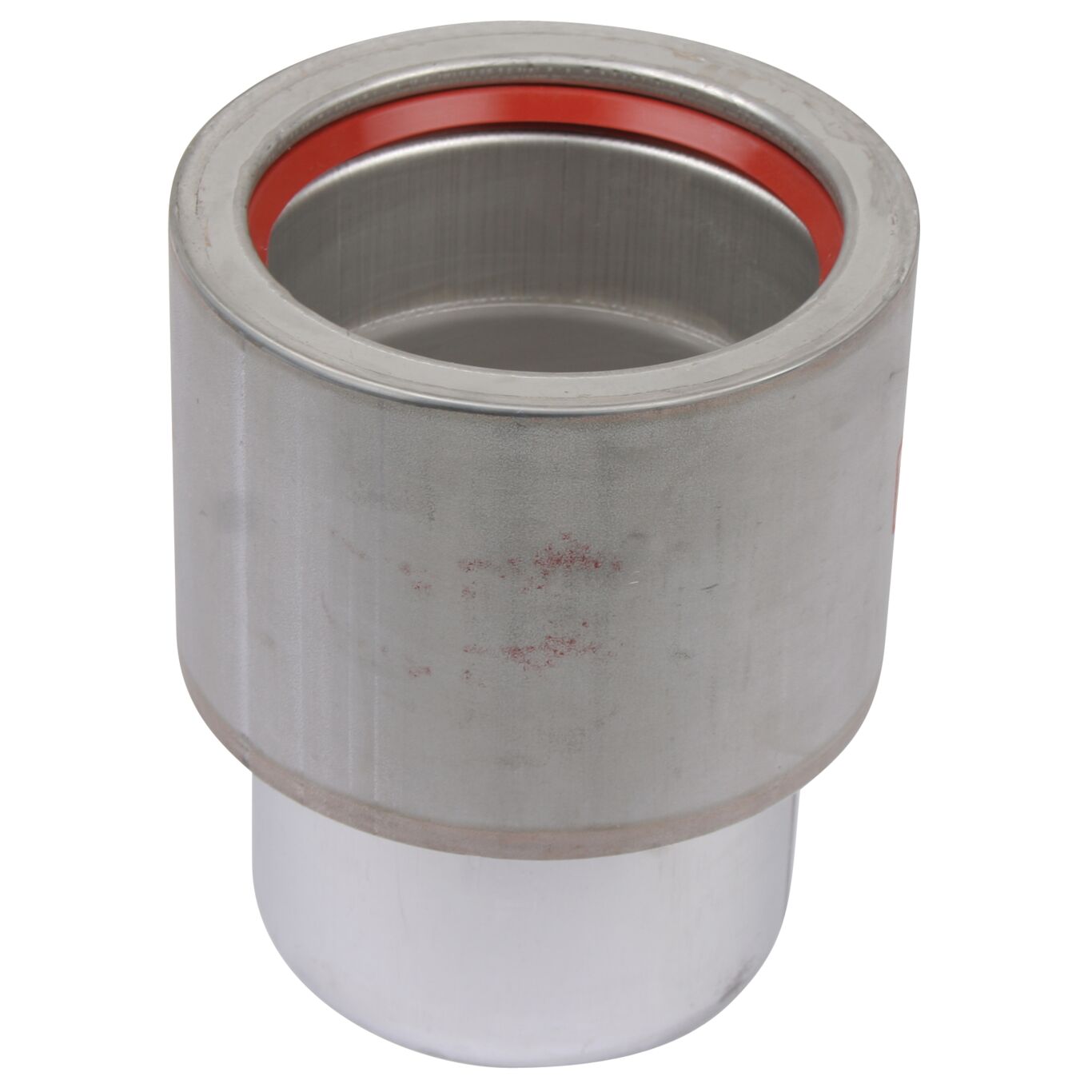

PENETRATION FOR CABIN WITH SLEEVE - (870.000.110F)
Part Of the Series: Penetration-cabin-welding sleeve-steel
Type no.: 870.000.110F
EAN no.: 5705499412154
NRF no.: 2172429
PENETRATION FOR CABIN WITH SLEEVE
-Diameter: Ø110mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI304/EN1.4301

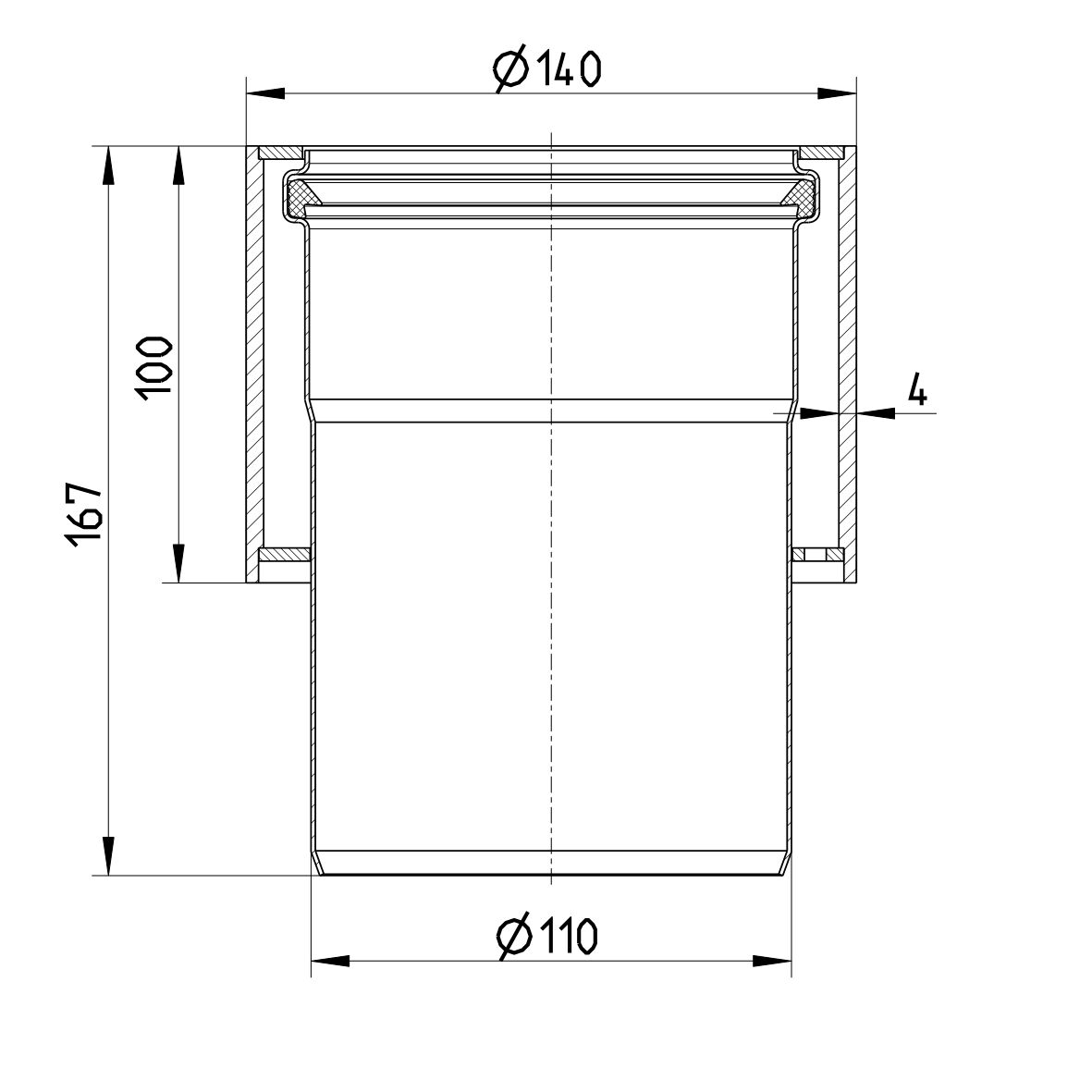

Product Specification | |
---|---|
Deck | Steel |
EC/MED (Deck) | A0-A60 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 167 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 2,29 |
Weight (lbs) | 5,05 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia DNV - MEDB000016W, Rev7, Penetrations with SI sealing Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe ClassNK - Type870, TA21161E(N)_21FPA13DA Achilles Certificate - 46702-22 DNV - TAP0000023-rev4, Sanitary discharge pipes
