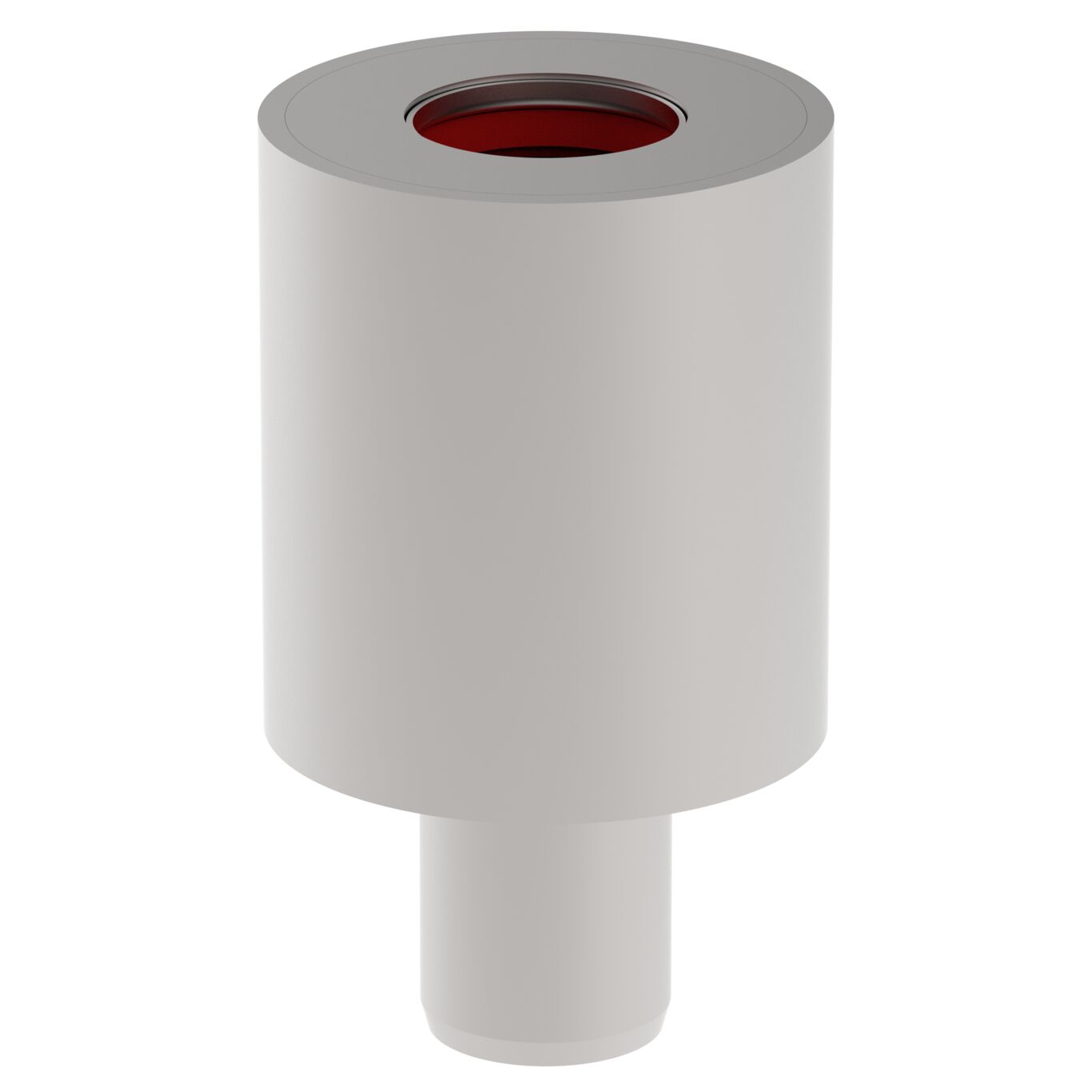

PENETRATION FOR CABIN WITH SLEEVE - (870.000.040F)
Part Of the Series: Penetration-cabin-welding sleeve-steel
Type no.: 870.000.040F
EAN no.: 5705499140965
PENETRATION FOR CABIN WITH SLEEVE
-Diameter: Ø40mm
-With SI sealing
-Deck: Steel
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Deck) | A0-A60 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |

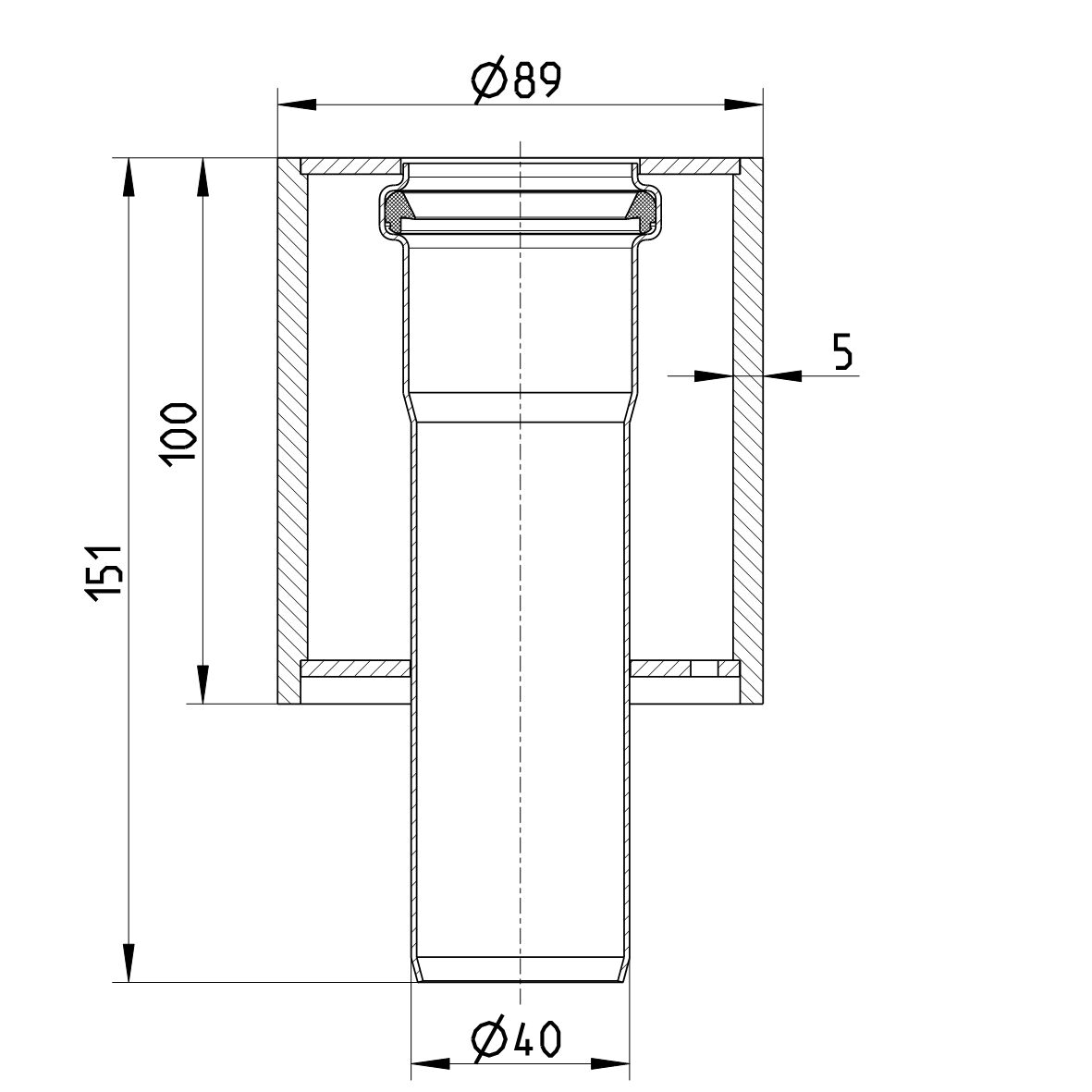

Minimum Height (mm) | 151 |
Outlet Diameter (mm) | 40 |
Weight (kg) | 1,45 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia DNV - MEDB000016W, Rev7, Penetrations with SI sealing HACCP Food Safety Programme - Europe ClassNK - Type870, TA21161E(N)_21FPA13DA DNV - TAP0000023-rev4, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA Achilles Certificate - 46702-22 ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe
