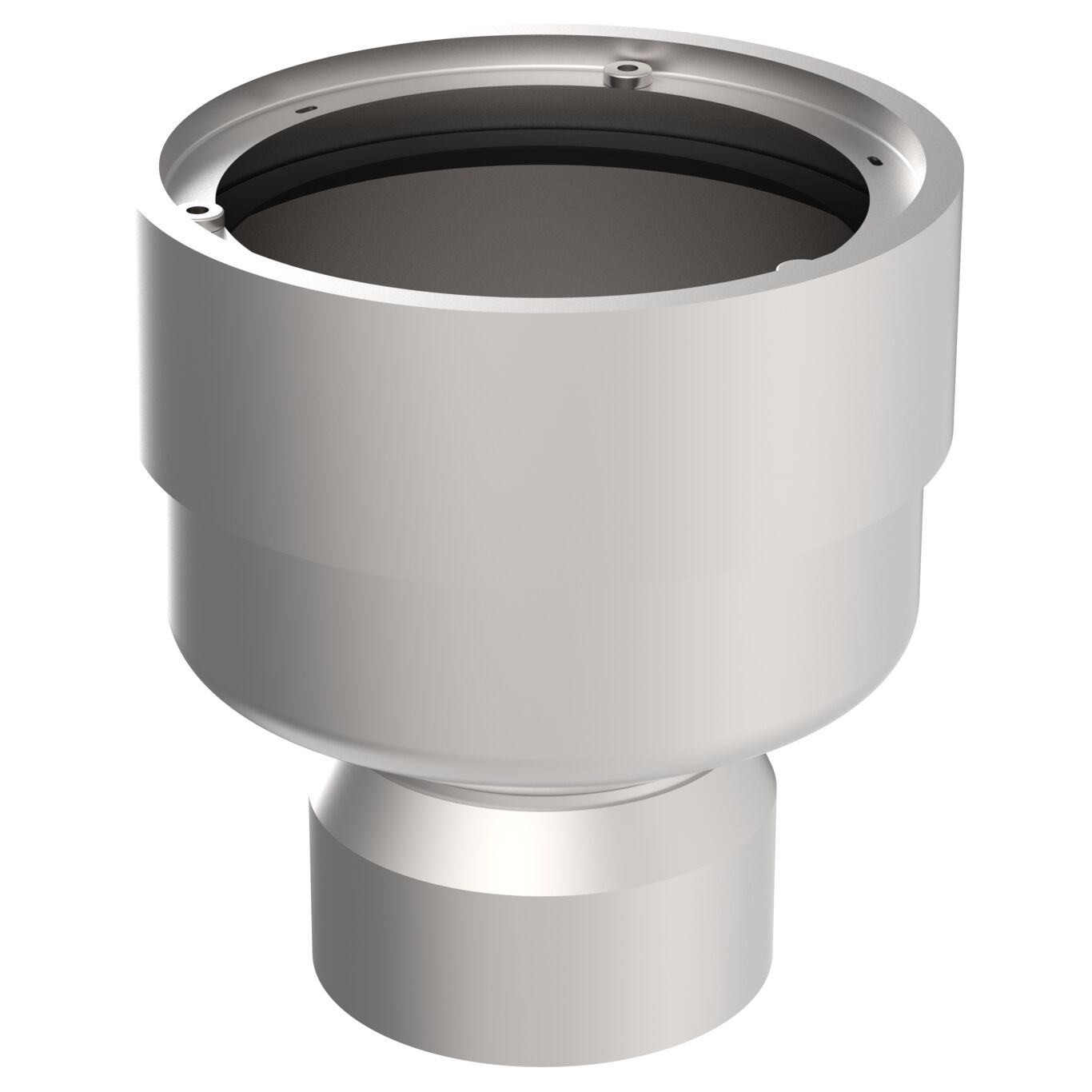

LOWER PART VERTICAL - (470.000.089 S)
×
![]()
Part Of the Series: Marine-lower part-welding sleeve-steel
Type no.: 470.000.089 S
EAN no.: 5705499140545
LOWER PART VERTICAL
-With welding sleeve
-Deck: Steel

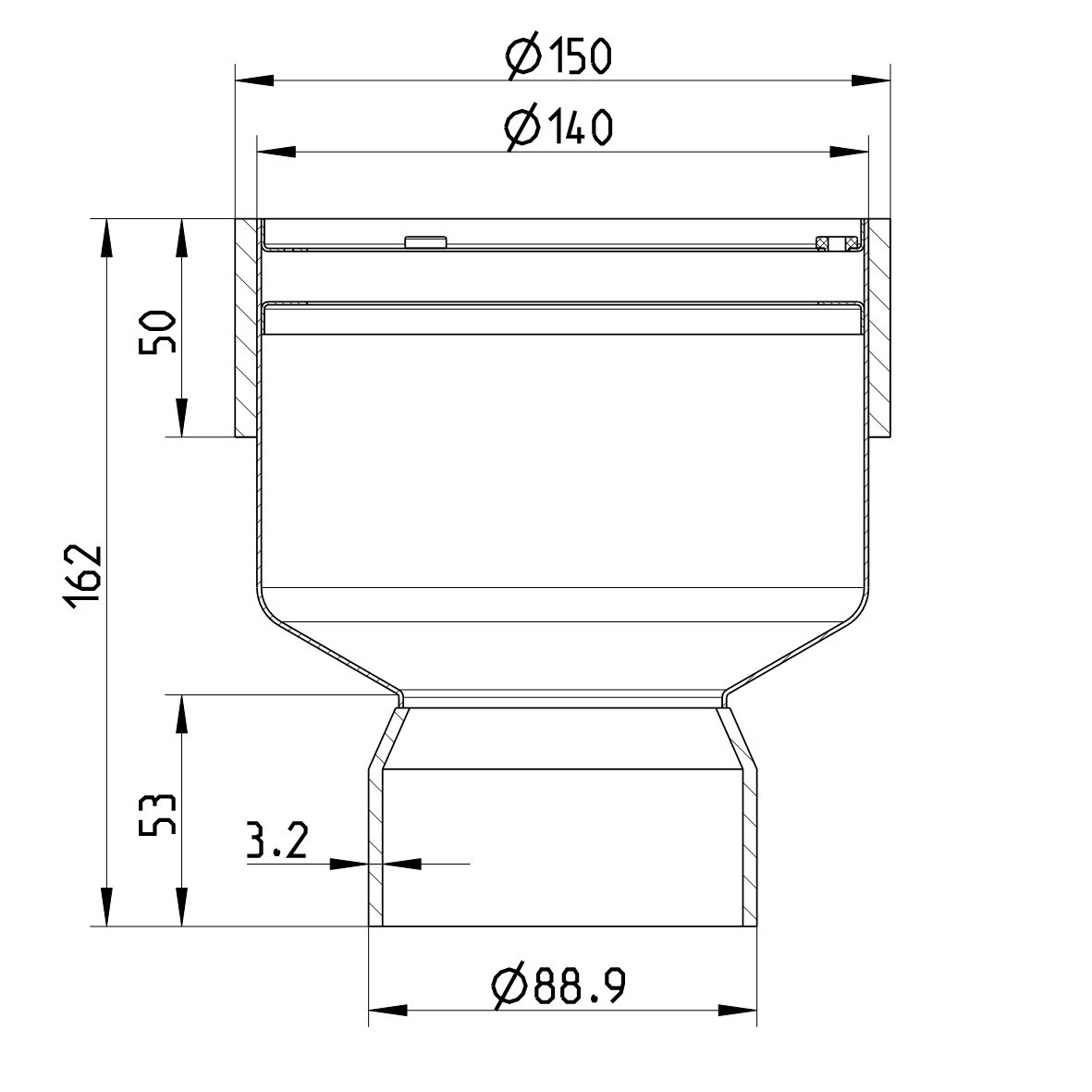

-Outlet: Ø88,9 x 3,2mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 162 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 88.9 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,79 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MERB0001N3Z, Rev0
Declaration of Conformity Welded penetrations
TÜRK LOYDU - 25041616077231247
BLÜCHER® Drains EPD DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas - 03456-I0, ShipDrains Achilles Certificate - 46702 Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA
