LOWER PART HORISONTAL - (475.000.089 S)
×
![]()
Part Of the Series: Marine-lower part-welding sleeve-steel
Type no.: 475.000.089 S
EAN no.: 5705499140583

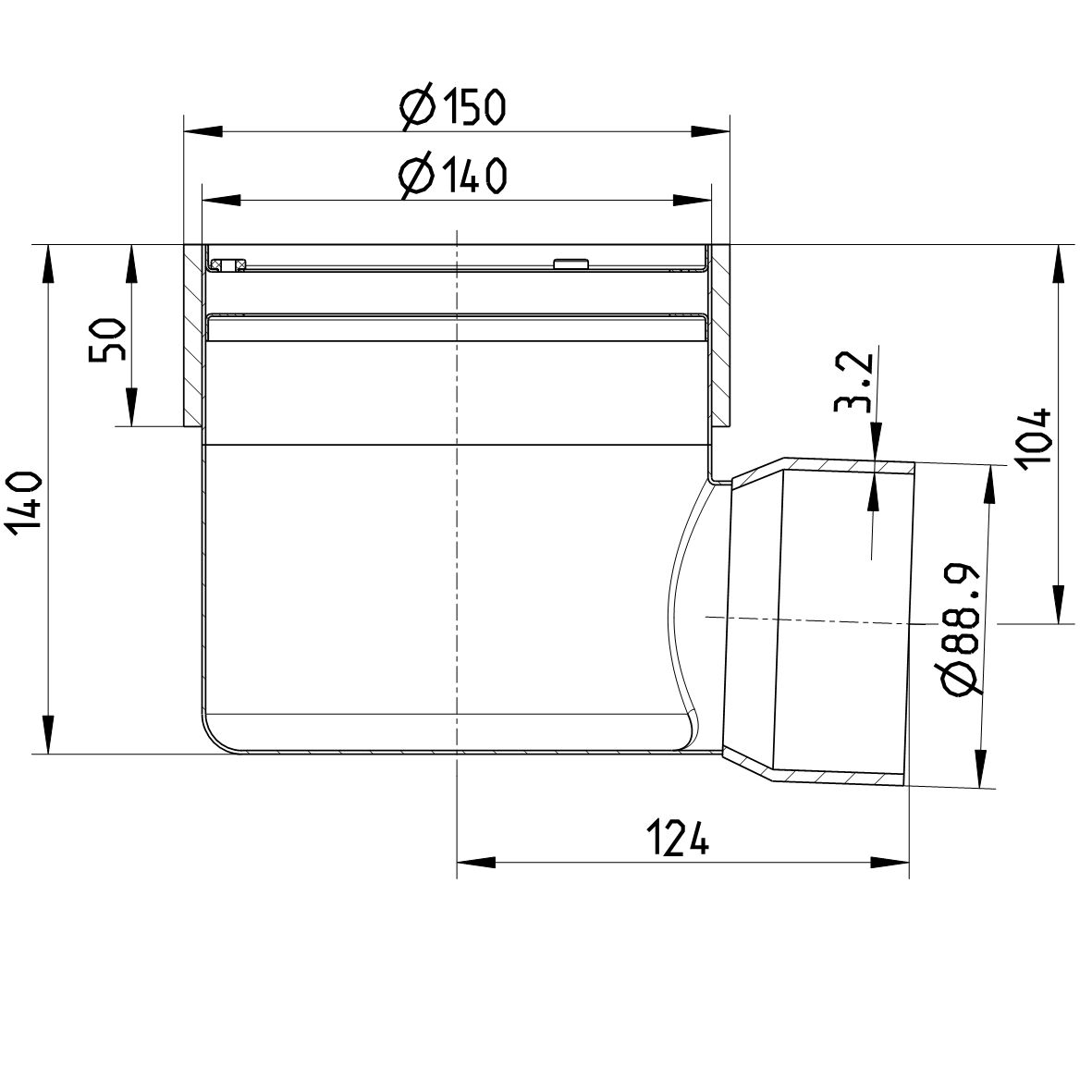

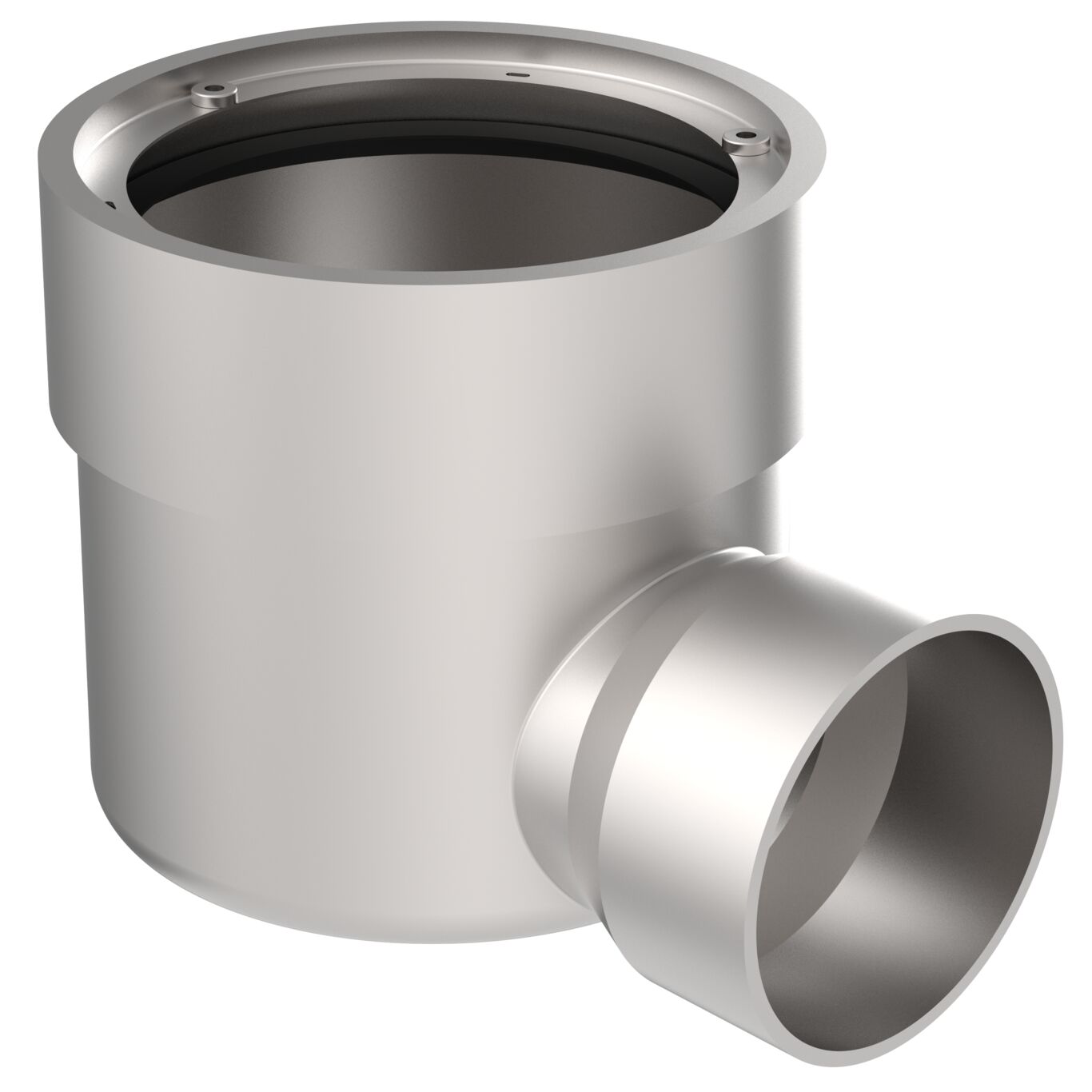

LOWER PART HORISONTAL
-With welding sleeve
-Deck: Steel
-Outlet: Ø88,9 x 3,2mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 140 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 88.9 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1,94 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB00000MA, Rev4, Marine Drains
BLÜCHER® Drains EPD
TÜRK LOYDU - 25041616077231247
DNV - MERB0001N3Z, Rev0 Bureau Veritas, 02375-I0 Pipes & Fittings Bureau Veritas - 03456-I0, ShipDrains DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA Achilles Certificate - 46702 RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA_02
