LOWER PART MARINE - (475.200.050)
×
![]()
Part Of the Series: Marine-lower part-welding flange-steel
Type no.: 475.200.050
EAN no.: 5705499106312
NRF no.: 3396723

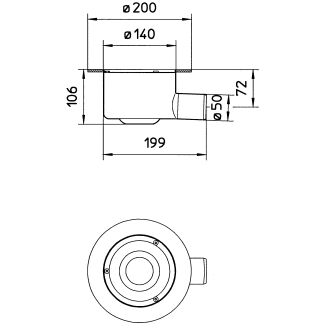

LOWER PART MARINE
-With welding flange
-Deck: steel
-Flange: Ø200mm
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 106 |
| Number of Inlets | 0 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1,30 |
| Weight (lbs) | 2,87 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB00000MA, Rev4, Marine Drains
DNV - MERB0001N3Z, Rev0
TÜRK LOYDU - 25041616077231247
BLÜCHER® Drains EPD
