LOWER PART MARINE - (470.900.110 S)
Part Of the Series: Marine-lower part-no welding
Type no.: 470.900.110 S
EAN no.: 5705499133332
NRF no.: 3397031

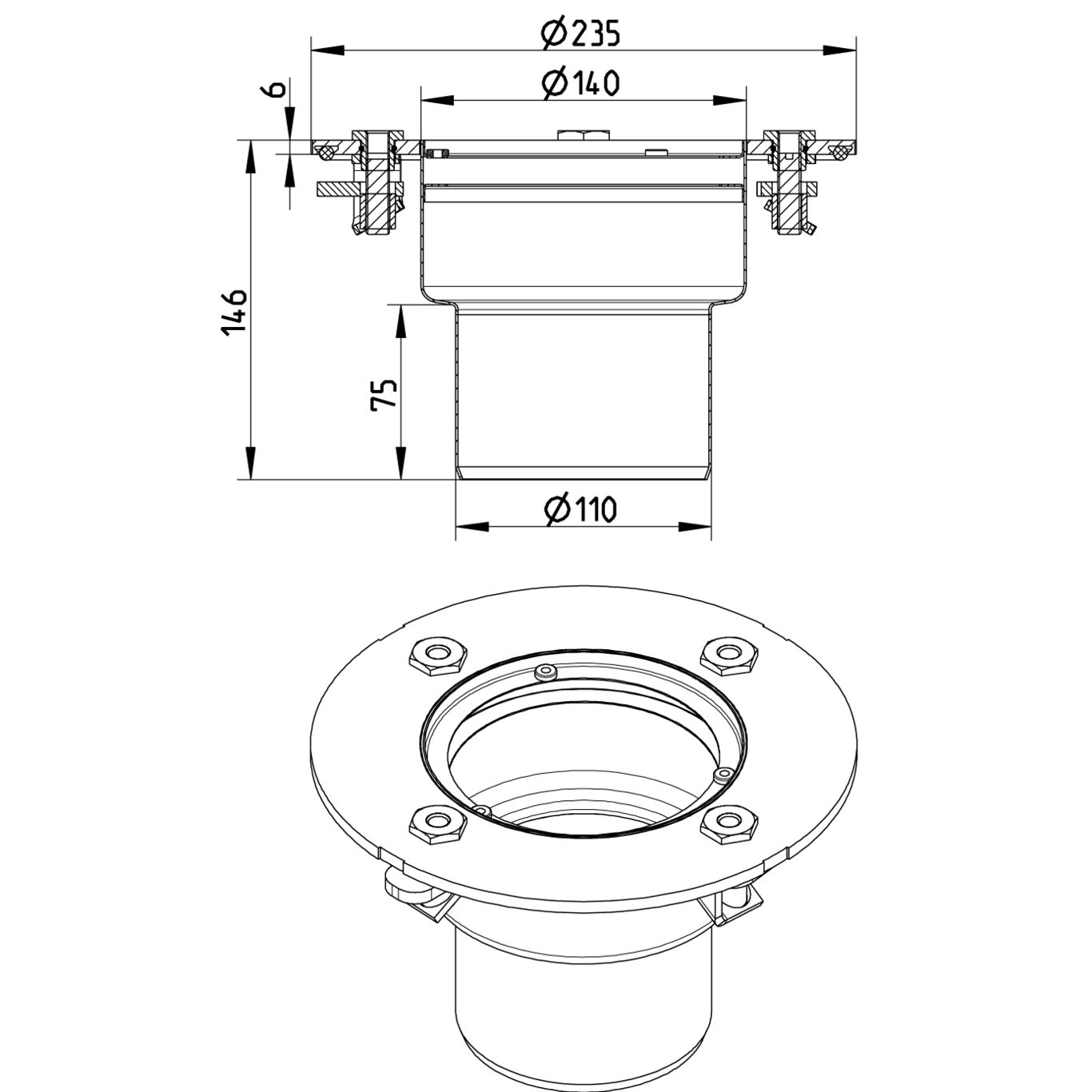

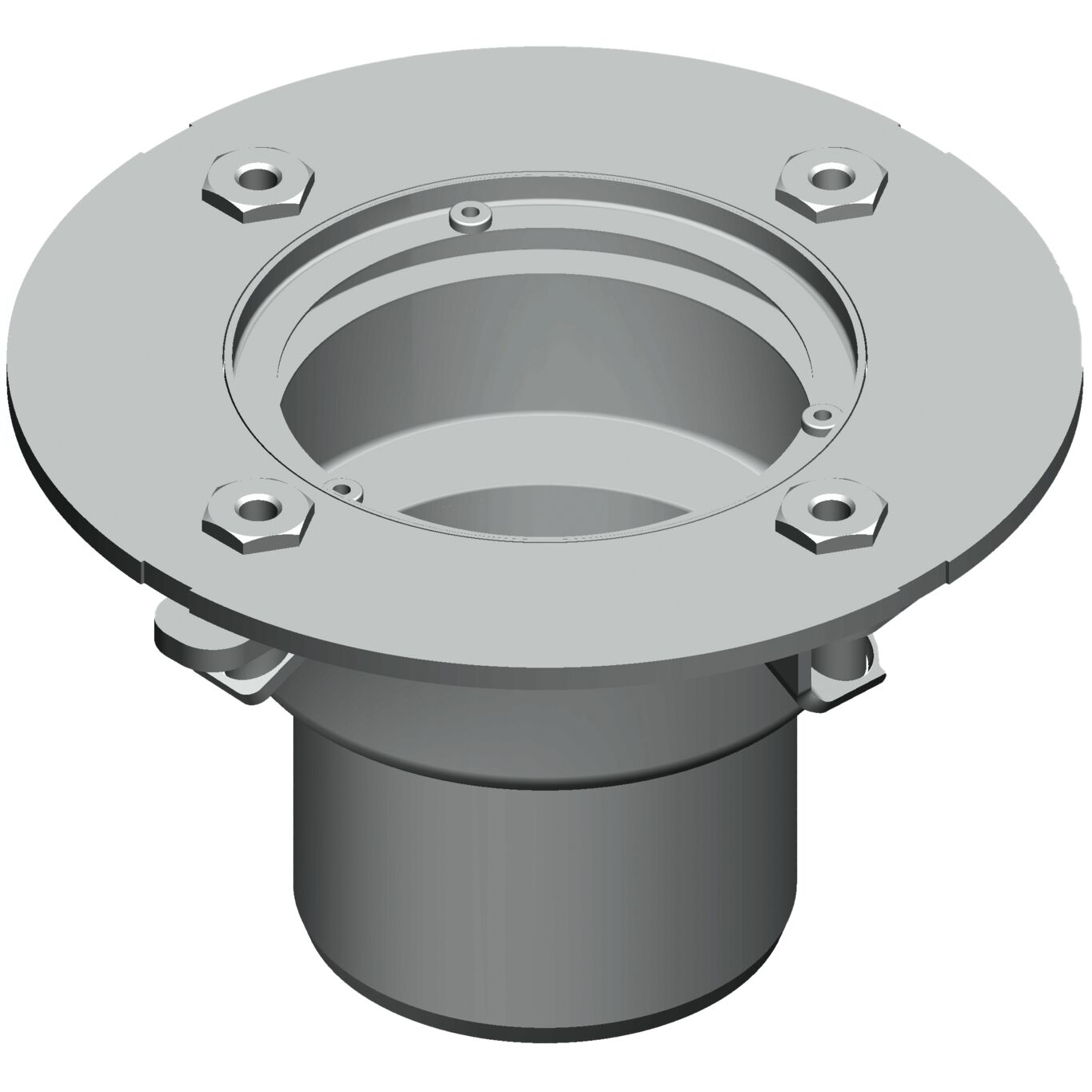

LOWER PART MARINE
-Non-welded
-Deck: aluminium and steel
-Flange: Ø235mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Deck | Aluminium|Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 141 |
Number of Inlets | 0 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Weight (kg) | 2,33 |
Weight (lbs) | 5,14 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
