LOWER PART MARINE - (485.200.050 S)
×
![]()
Part Of the Series: Marine-lower part-bimetal flange-aluminium
Type no.: 485.200.050 S
EAN no.: 5705499121865
NRF no.: 3397051

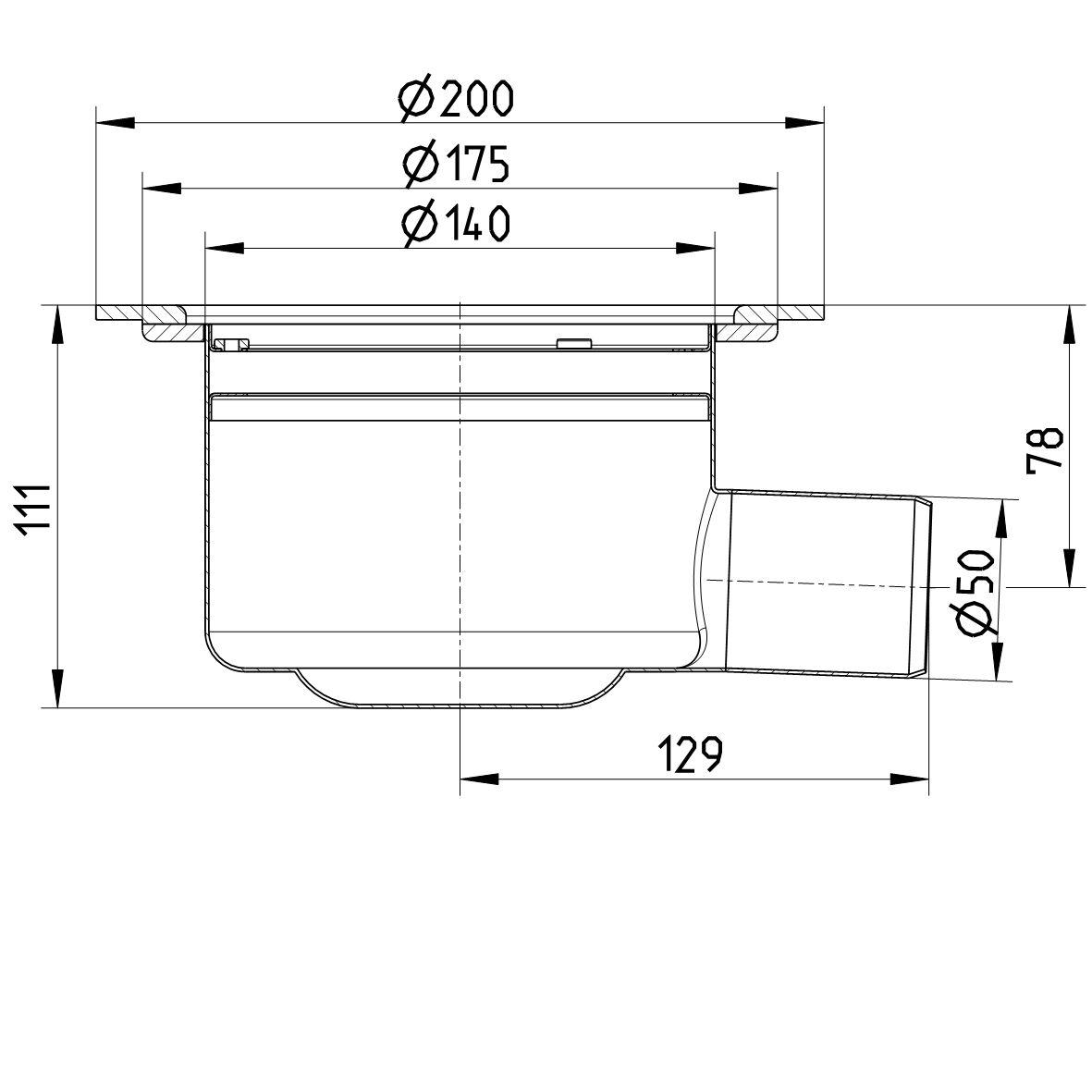

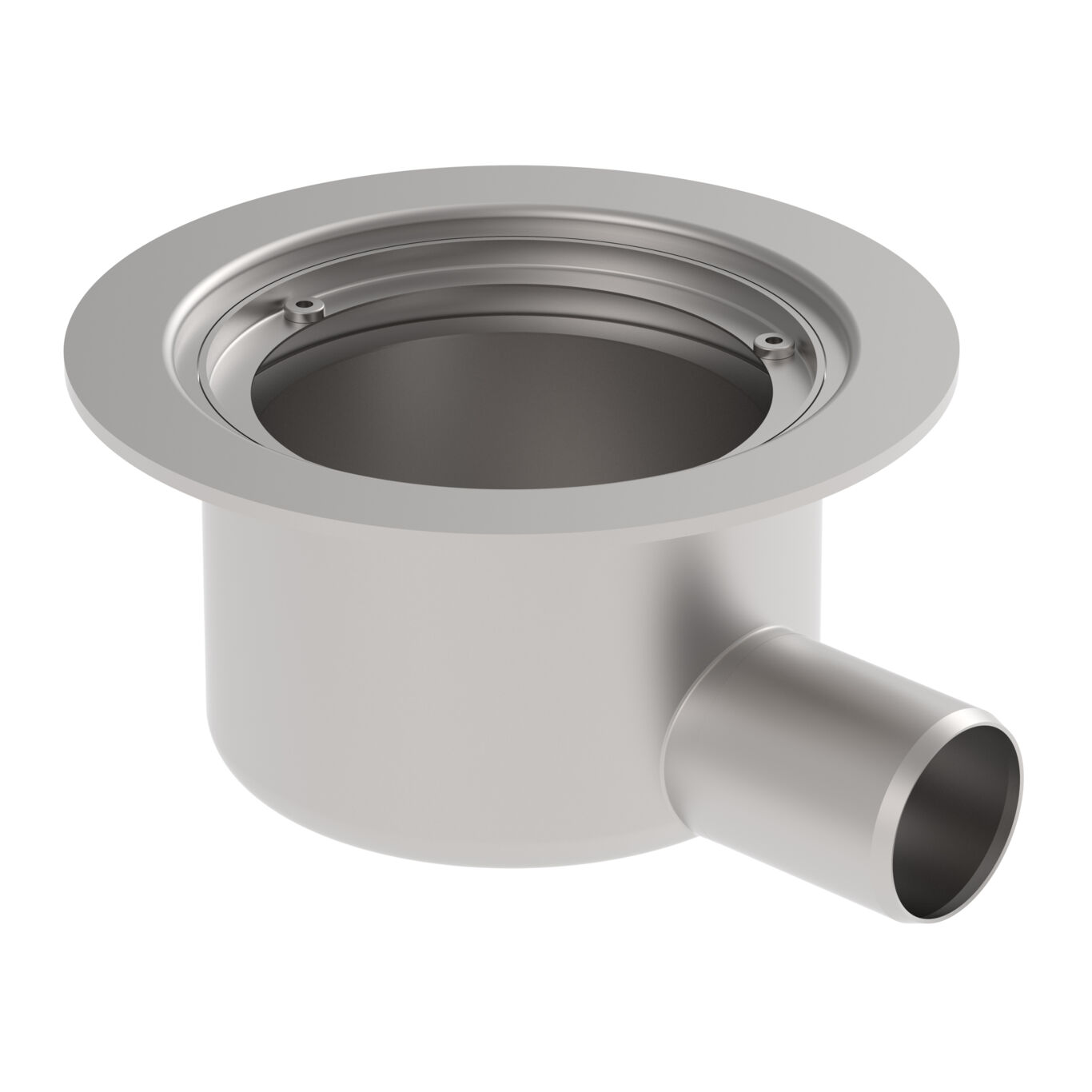

LOWER PART MARINE
-With Bimetal flange
-Deck: aluminium
-Flange: Ø200mm
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Aluminium |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 111 |
| Number of Inlets | 0 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1,50 |
| Weight (lbs) | 3,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
Declaration of Conformity Welded penetrations
TÜRK LOYDU - 25041616077231247 Achilles Certificate - 46702 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas - 03456-I0, ShipDrains RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA
