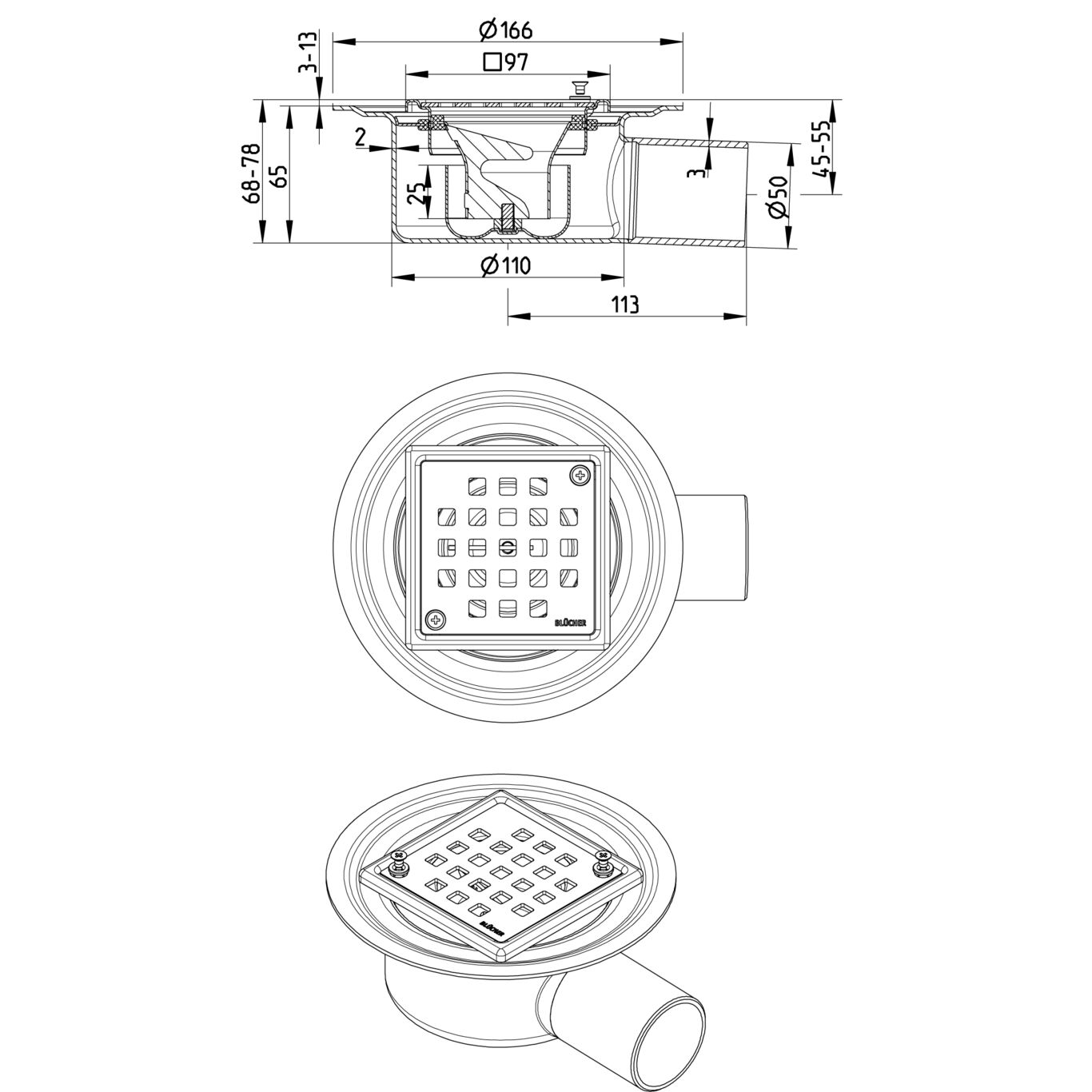

ADJUSTABLE CABIN DRAIN SQUARE - (491.200.050 VS)
×
![]()
Part Of the Series: Marine cabin drain-97
Type no.: 491.200.050 VS
EAN no.: 5705499131857
Size: 100x100
ADJUSTABLE CABIN DRAIN SQUARE
-With removable water trap
-Deck: steel & floor: tiled
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Floor | Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 78 |
| Minimum Height (mm) | 68 |
| Number of Inlets | 0 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (Inch) | 3⅞x3⅞ |
| Size (mm) | 100x100 |
| Weight (kg) | 1,24 |
| Weight (lbs) | 2,73 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB000016X, Rev1, Cabin drain
TÜRK LOYDU - 25041616077231247 Achilles Certificate - 46702 ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 Bureau Veritas - 03456-H0, ShipDrains Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes
