P-TRAP 87.5° - (525.090.075 S)
Part Of the Series: Water trap-p
Type no.: 525.090.075 S
EAN no.: 5705499101478
VVS no.: 160381375
RSK no.: 1550346
NRF no.: 3395042
LVI no.: 3304020

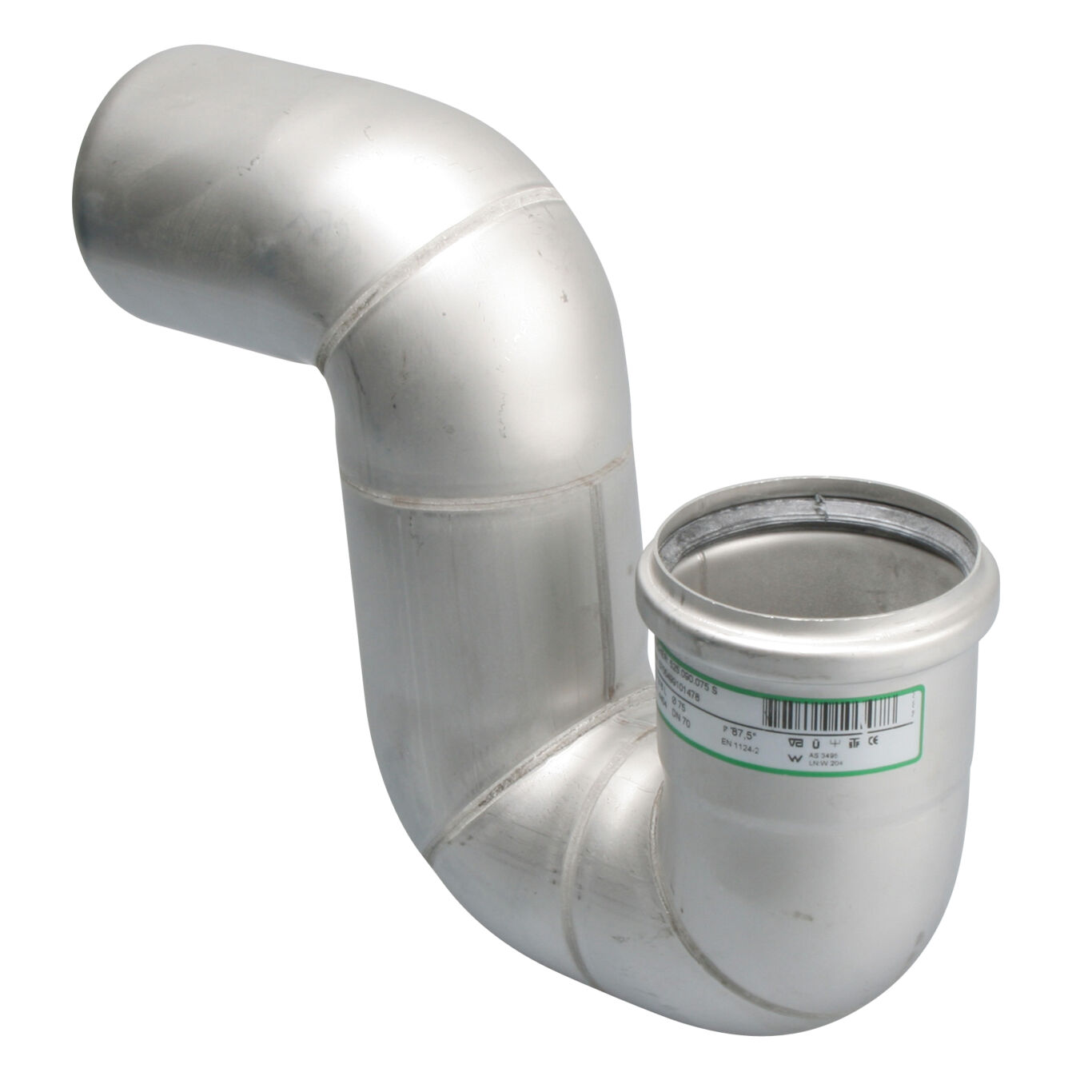

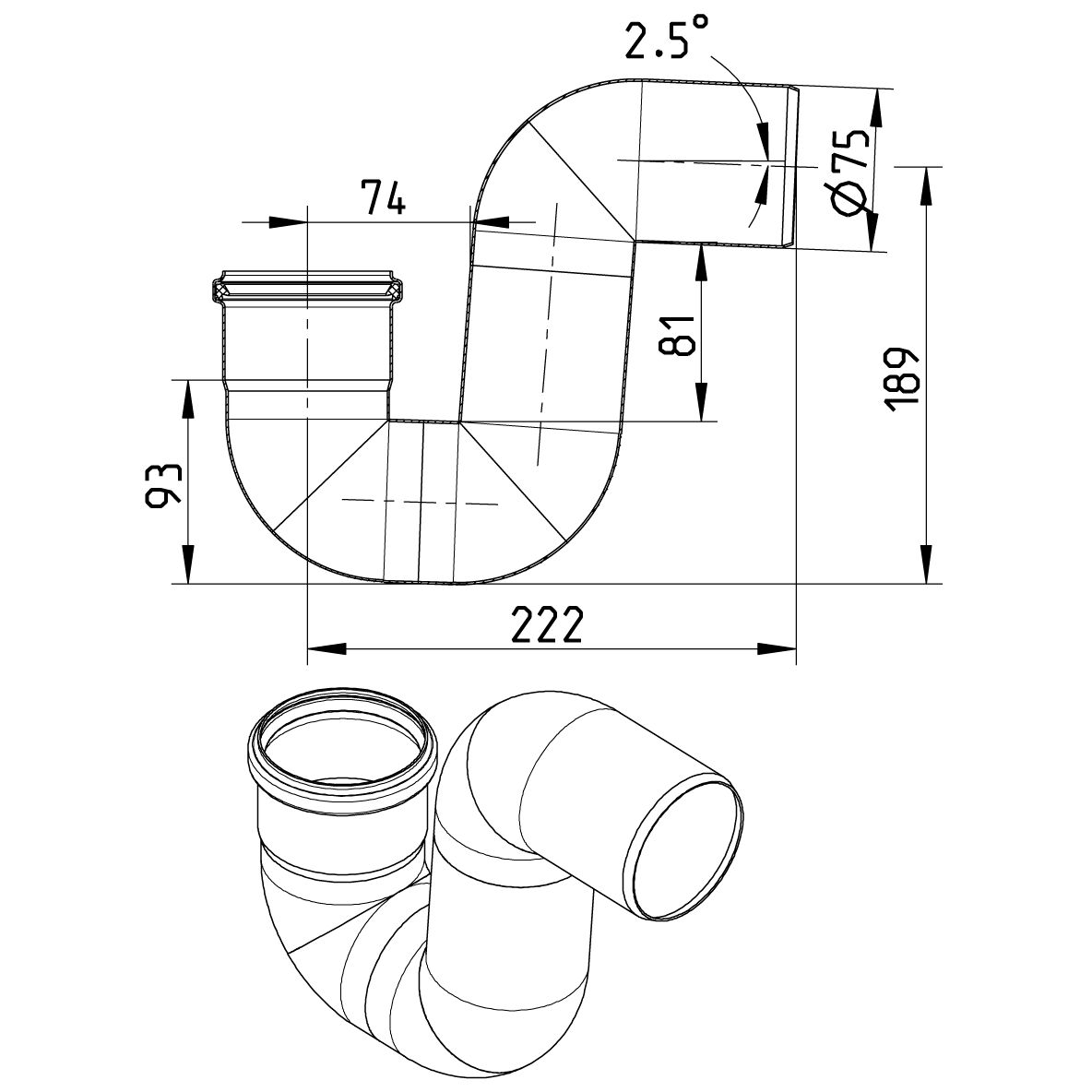

P-TRAP 87.5°
-Diameter: Ø75mm
-Water seal height = 81mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Field of Application | Domestic|Industrial |
Length (mm) | 93 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Max Flow (l/s) | 3.7 |
Minimum Flow (l/s) | 2.5 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Water Seal Height (mm) | 81 |
Weight (kg) | 0,84 |
Weight (lbs) | 1,85 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe AUS - WMKT00204 - 24 DK VA 2.41/19631 P-Vandlås dim 50, 75, 110, 125, 160mm DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas - 03456-H0, ShipDrains ABS - 23-2329630-PDA Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM
